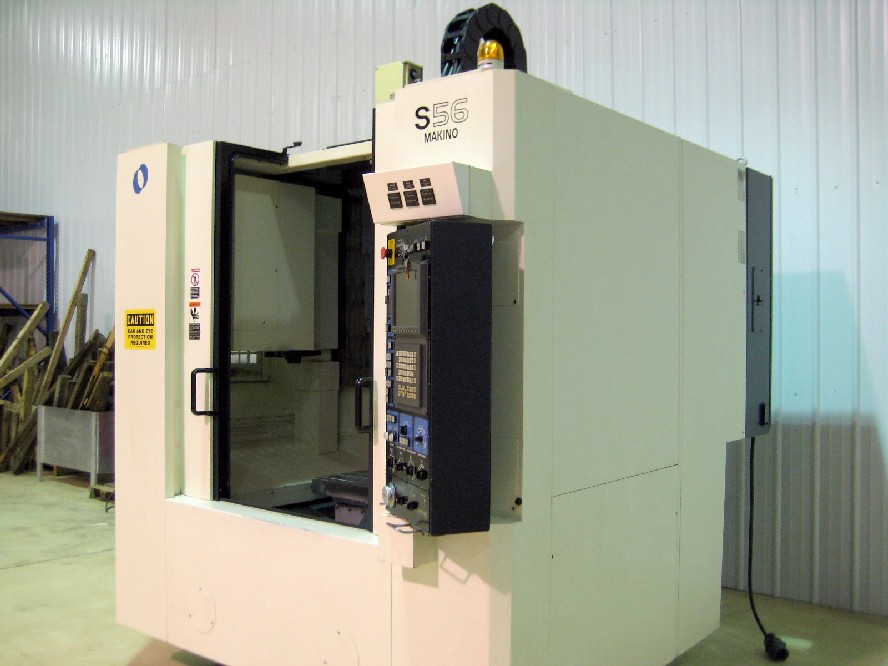

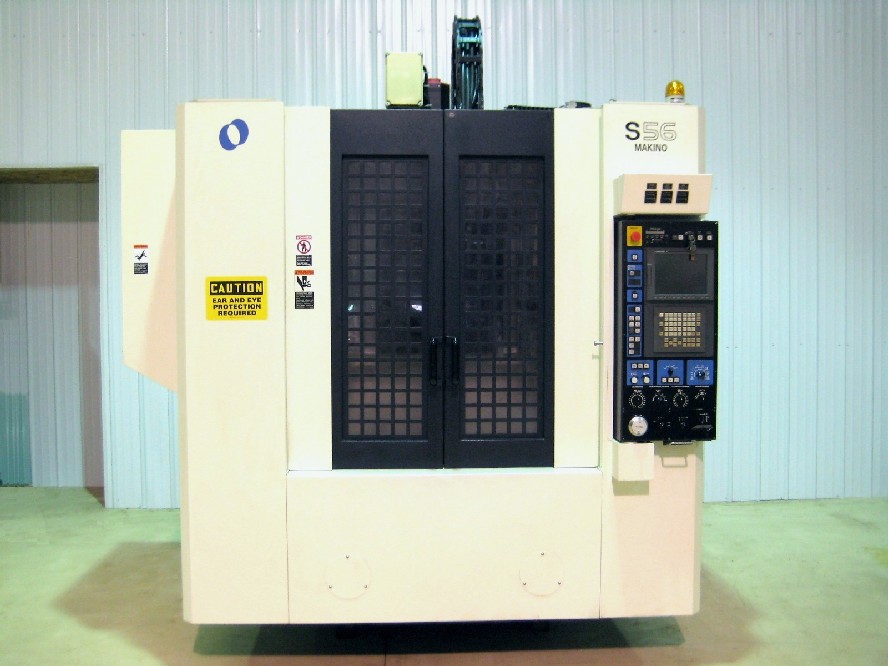

MAKINO S56 CNC MILL, FANUC PRO 3 CTRL, 35.4 x 19.7 x 17.7, 1575 IPM CUTTING & RAPIDS, 13000 RPM, 3D & GRAPHICS, 2004

MAKINO S56 CNC MILL, FANUC PRO 3 CTRL, 35.4 x 19.7 x 17.7, 1575 IPM CUTTING & RAPIDS, 13000 RPM, 3D & GRAPHICS, 2004

Stock Number: 4677


Click to view larger photo

Request A Quote On Our Stock Number: 4677 MAKINO S56 CNC MILL, FANUC PRO 3 CTRL, 35.4 x 19.7 x 17.7, 1575 IPM CUTTING & RAPIDS, 13000 RPM, 3D & GRAPHICS, 2004Request a quote on stock# 4677
SpecificationDescription
MANUFACTURED NEW2004
TABLE SIZE39.4" x 19.7"
MAXIMUM TABLE LOAD1432 LBS
X AXIS TRAVEL35.4"
Y AXIS TRAVEL19.7"
Z AXIS TRAVEL17.7"
SPINDLE NOSE TO TABLE5.9" - 23.6"
RAPID TRAVERSE RATE X, Y & Z AXES1575 IPM
CUTTING FEED RATE, MAX.1575 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS130 - 13,000 RPM
SPINDLE MOTOR29.5 HP
TOOL CHANGER CAPACITY20
POWER REQUIREMENTS230V, 3PH,50/60 HZ
WEIGHT, APPROX.17,000 LBS
DIMENSIONS, APPROX.100"L x 117"W x 119"H

Equipped With:

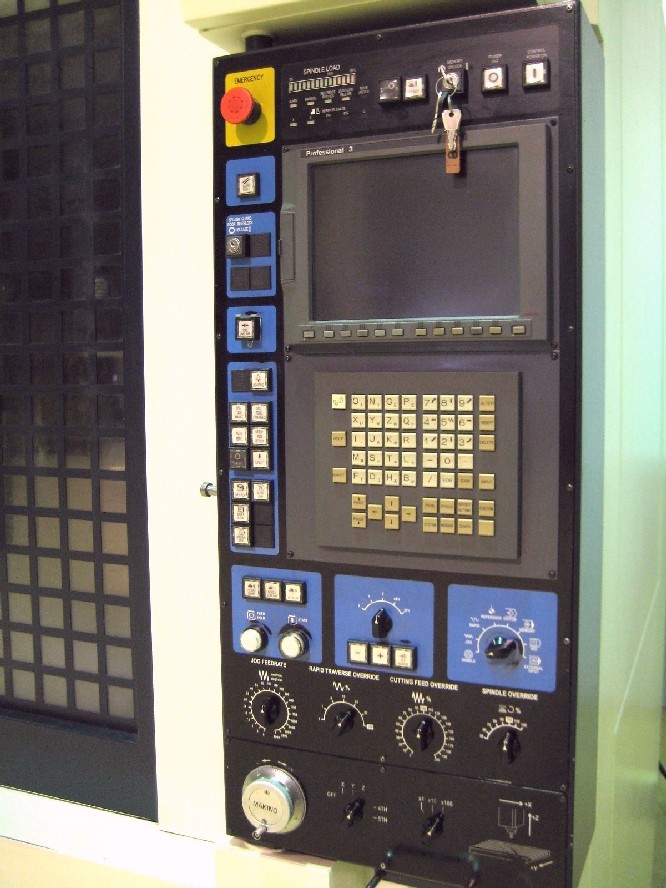

FANUC PROFESSIONAL 3 (FANUC 18i) CNC CONTROL w/SUPER,
GEOMETRIC INTELLIGENCE SGI 3 SERVO CONTROL
FOR HIGH VELOCITY 3D INTERPOLATION,
RIGID TAPPING, HELICAL INTERPOLATION,
w/OPTIONAL (20) SIDE-MOUNT SWING-ARM TOOL CHANGER,
TOOL LIFE MONITORING SYSTEM,
SPINDLE CHILLER w/TEMP CONTROLLER,
AIR DRYER, AUTO-SPINDLE LUBERICANT,
THRU-THE-TOOL AUTOMATIC AIR BLAST,
SPINDLE WORK AIR BLAST NOZZLE,
FLOOD COOLANT & WAY COVER COOLANT WASH-DOWN,
RIGID BRIDGE TYPE CAST CONSTRUCTION,
ALL AVAILABLE MANUALS

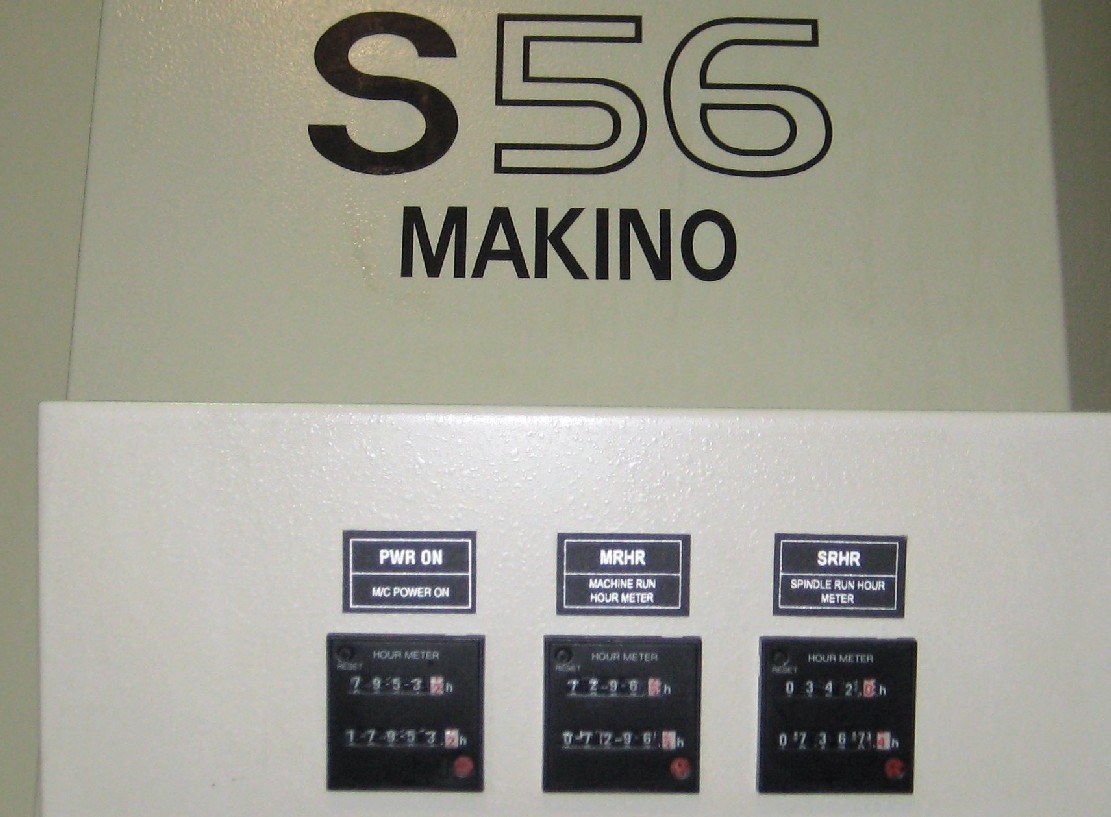

**NEW SPINDLE IN 2011; 342 HOURS ON SPINDLE**
