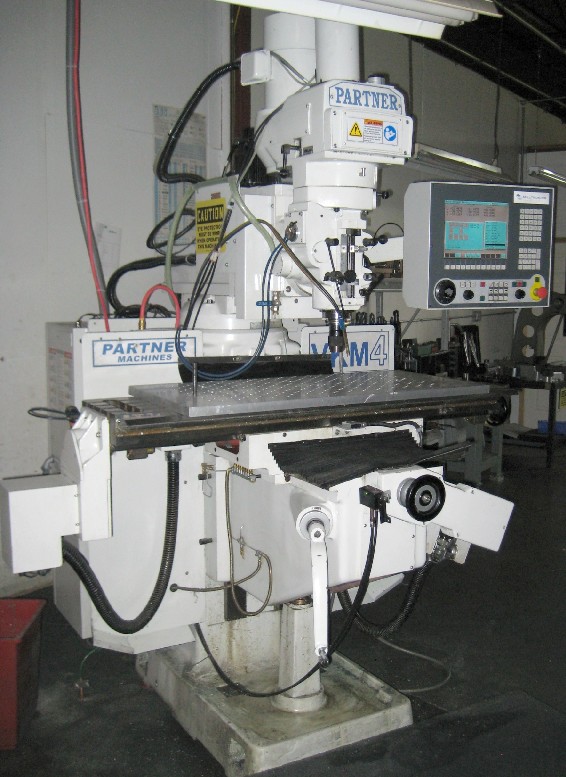

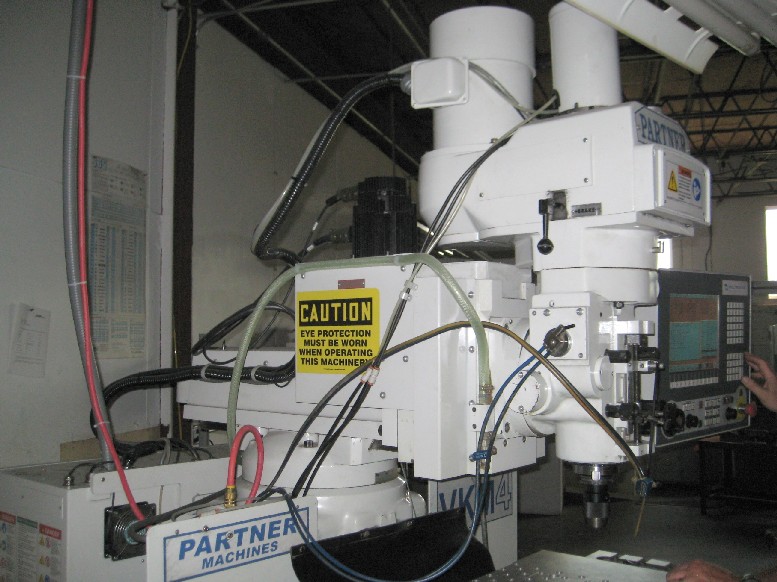

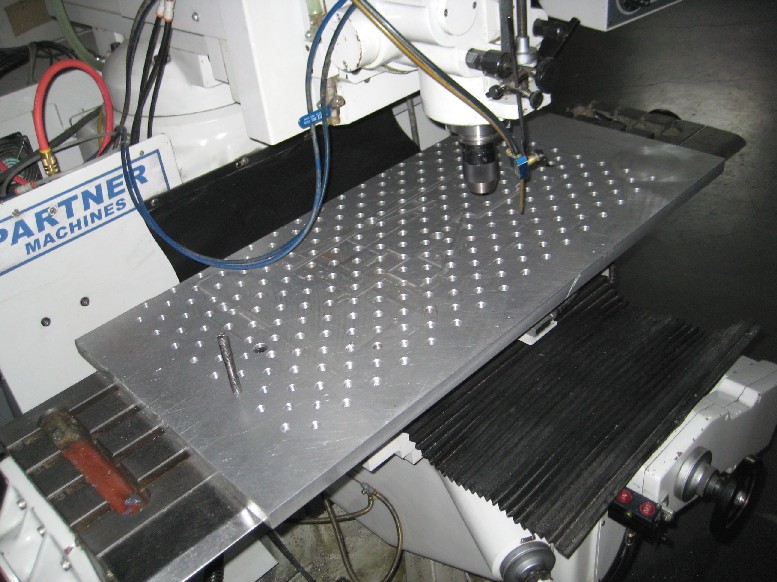

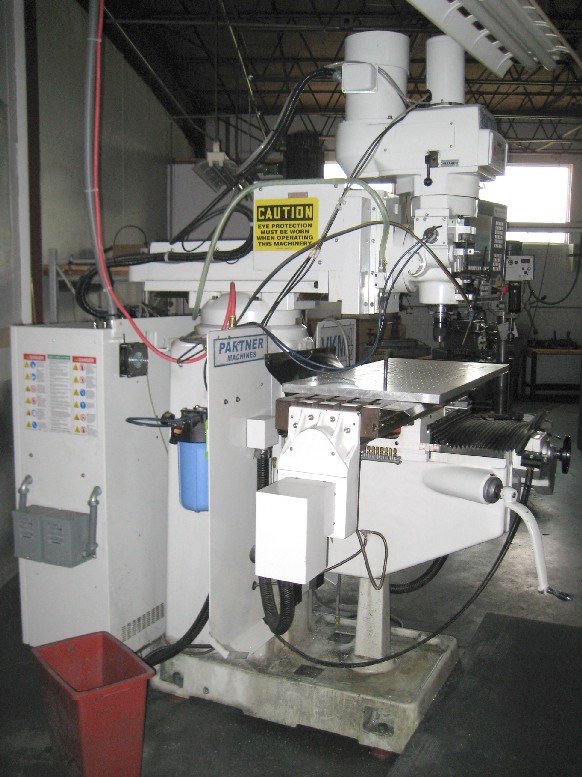

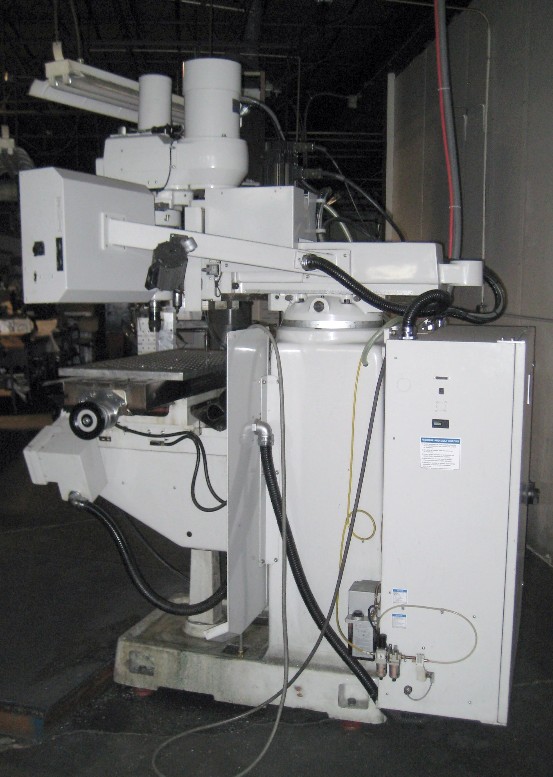

MILLTRONICS VKM4 CNC KNEE MILL, 30x15x15 TRVLS, CAT 40, 4000 RPM, 5 HP, 8200 CONVERSATIONAL CTRL, LOW HOURS, NEW 2008
Stock Number: 4662
Click to view larger photo
Request a quote on stock# 4662
| Specification | Description |
|---|
| DATE OF MANUFACTURE | 2008 |
| TABLE SIZE | 53" x 12" |
| X AXIS TRAVEL | 30" |
| Y AXIS TRAVEL | 15" |
| Z AXIS TRAVEL (HEAD on SLIDEWAYS) | 5.25" |
| QUIL TRAVEL | 6" |
| RAPID TRAVEL RATE (X/Y/Z) | 500 IPM |
| CUTTING FEED RATE | 0.1 - 250 IPM |
| SPINDLE TAPER | CAT 40 |
| SPINDLE SPEEDS (2 SPEED) | 0 - 4000 RPM |
| SPINDLE MOTOR | 5 HP |
| QUILL DIAMETER | 4.2" |
| MACHINE WEIGHT | 4700 LBS |
| APPROXIMATE DIMENSIONS | 87" x 56" x 95" |
Equipped With:

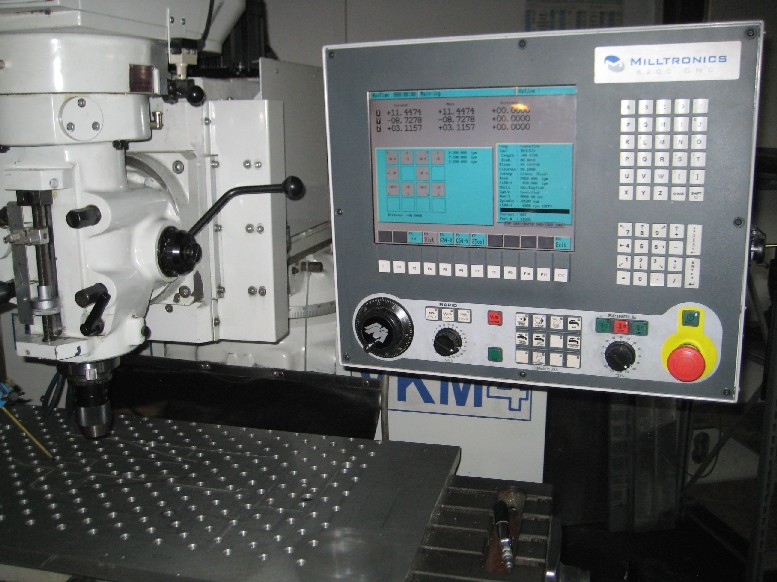

MILLTRONICS 8200 CNC CONVERSATIONAL CTRL
W/COLOR LCD GRAPHICS,
USB INTERFACE FOR DNC OPERATION,
TRUE 3-AXIS CNC SIMULTANEOUS MOVEMENTS,
INDEPENDANT AXIS JOG HANDWHEEL OPTION,
TEACH MODE PROGRAMMING, PC MULTI PROCESSOR
MULTI-MEMORY CARD READER INCL. SD CARD,
MILLTRONICS PACKAGE A, B & C INCLUDED,
CHIP/COOLANT TRAY
**LOADED WITH OPTIONS!**
***LOW HOURS; CLEAN***
