CNC VERTICAL MACHINING CENTERS: DAEWOO DMV-400 CNC MILL, FANUC 18i-M, 22 x 16 x 22, 8000 RPM, COOLANT THRU SPINDLE, 2 PALLET, 1181 RAPIDS, '98 (4655)

DAEWOO DMV-400 CNC MILL, FANUC 18i-M, 22 x 16 x 22, 8000 RPM, COOLANT THRU SPINDLE, 2 PALLET, 1181 RAPIDS, '98 (4655)

Stock Number: 4655

Click to view larger photo

Request A Quote On Our Stock Number: 4655 CNC VERTICAL MACHINING CENTERS: DAEWOO DMV-400 CNC MILL, FANUC 18i-M, 22 x 16 x 22, 8000 RPM, COOLANT THRU SPINDLE, 2 PALLET, 1181 RAPIDS, '98 (4655)

Request A Quote On Our Stock Number: 4655 CNC VERTICAL MACHINING CENTERS: DAEWOO DMV-400 CNC MILL, FANUC 18i-M, 22 x 16 x 22, 8000 RPM, COOLANT THRU SPINDLE, 2 PALLET, 1181 RAPIDS, '98 (4655)

Request a quote on stock# 4655

Specification	Description
DATE OF MANUFACTURE	1998
PALLET SIZE (2 PALLET MACHINE)	17.7" x 25.6"
MAXIMUM PALLET LOAD	660 LBS
SPINDLE NOSE TO PALLET TOP	5.9" - 28.3"
X AXIS TRAVEL	22.0"
Y AXIS TRAVEL	15.7"
Z AXIS TRAVEL	22.4"
RAPID TRAVERSE RATE X & Y AXES	1181 IPM
RAPID TRAVERSE RATE Z AXIS	945 IPM
CUTTING FEED RATE	0.04 - 315 IPM
SPINDLE TAPER	CAT 40
SPINDLE SPEEDS	8,000 RPM
SPINDLE MOTOR	15 HP

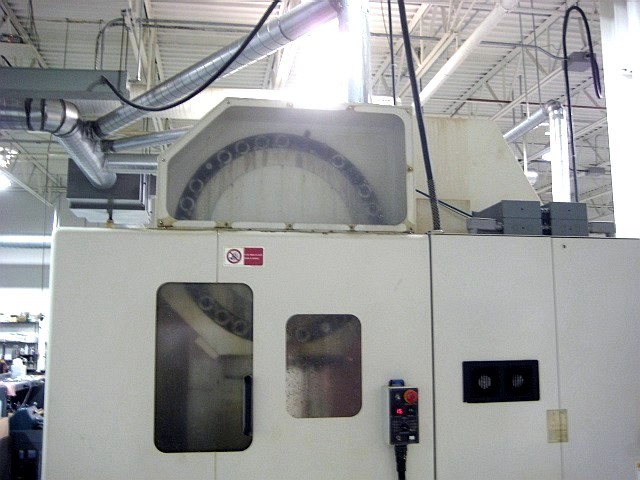

TOOL CHANGER CAPACITY	30 STATION ATC
TOOL CHANGE TIME (TOOL TO TOOL)	1.5 SECONDS
MAXIMUM TOOL WEIGHT	17.6 LBS
MACHINE WEIGHT (APPROXIMATE)	13,500 LBS
APPROXIMATE DIMENSIONS	110"L x 88"W x 120"H

Equipped With:

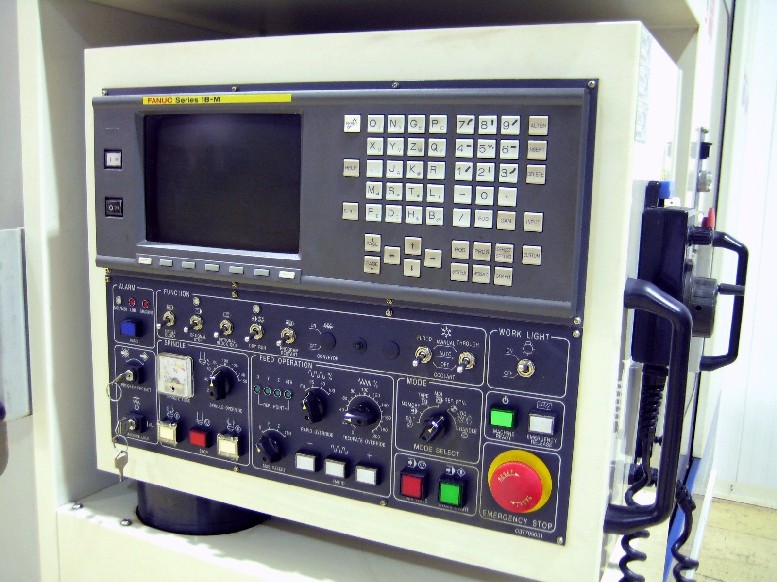

FANUC 18i CNC CONTROL WITH 9" CRT SCREEN,
RS-232C PORT INTERFACE FOR DNC OPERATION,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
COOLANT THROUGH THE SPINDLE (STD. PRESSURE),
SPINDLE CHILLER SYSTEM,
REMOTE PULSE GENERATOR FOR EASY SET-UP WORK,
STANDARD COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS,
**2-PALLET ROTATING EFFICIENT DESIGN**
***FAST TOOL CHANGER; CHIP-TO-CHIP***
