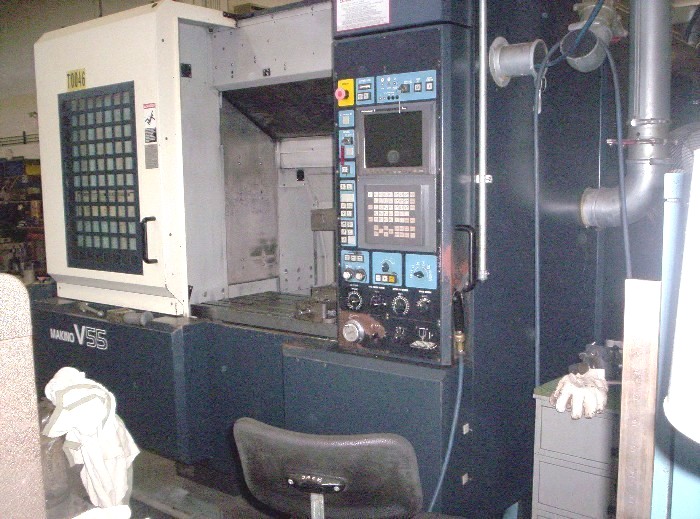

MAKINO V55 CNC MILL, 20000 RPM, 35.4 x 19.7 x 18, 1968 IPM RAPIDS, HSKA63 SPINDLE, 30 HP, FANUC PRO 3 16i-M, 25 ATC, '00
Stock Number: 4644
Click to view larger photo
Request a quote on stock# 4644
| Specification | Description |
|---|
| MANUFACTURED NEW | 2000 |
| TABLE SIZE | 39.4" x 16.5" |
| MAXIMUM TABLE LOAD | 1540 LBS |
| X AXIS TRAVEL | 35.4" |
| Y AXIS TRAVEL | 19.7" |
| Z AXIS TRAVEL | 17.7" |
| CUTTING FEED RATE X, Y & Z AXES | 1968 IPM |
| RAPID TRAVERSE RATE X, Y & Z AXES | 1968 IPM |
| SPINDLE TAPER | HSK-A63 |
| SPINDLE SPEEDS | 20 - 20,000 RPM |
| SPINDLE MOTOR | 30 / 25 HP |
| NUMBER OF SPINDLE SPEED RANGES | 2 |
| TOOL CHANGER CAPACITY | 25 |
| WEIGHT, APPROX. | 20,500 LBS |
| DIMENSIONS, APPROX. | 109" x 119" x 122" |
Equipped With:

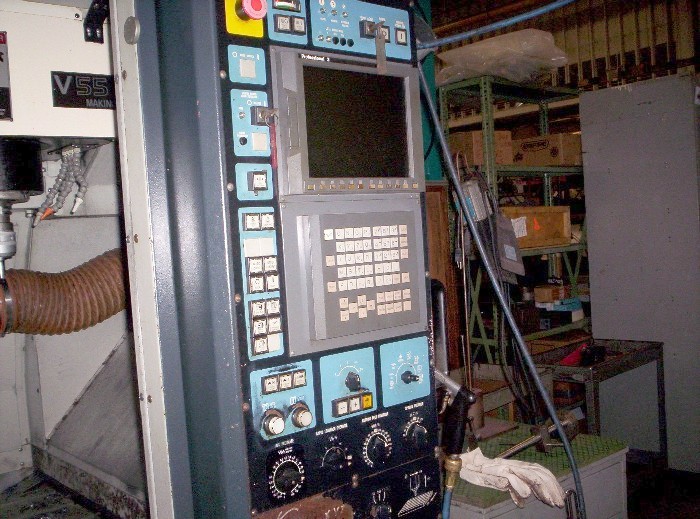

FANUC PRO 3 (FANUC 16i-M) CNC CONTROL w/SUPER
GEOMETRIC INTELLIGENCE (SGI) & RS232 PORT,
HELICAL INTERPOLATION, DATA SERVER BOARD,
NURBS INTERPOLATION (COMPLEX CONTOUR MILLING),
20,000 RPM HIGH-SPEED SPINDLE (DIE MOLD PACKAGE),
AUTO AIR BLAST, TOOL LIFE MONITORING,
HIGH-SPEED FEED RATE (1968 ipm),

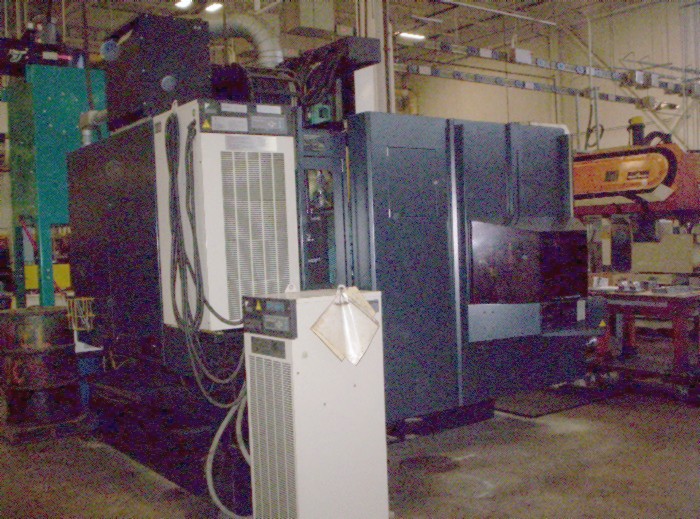

SPINDLE CHILLER,
AIR DRYER, ALL AVAILABLE MANUALS
