MORI SEIKI NV5000 50 TAPER CNC MILL, MSX-501 FANUC, 31.5 x 20.1 x 20, 8000 RPM COOLANT THRU, 4TH AXIS ROTARY, 30HP, '05
Stock Number: 4627
Click to view larger photo
Request a quote on stock# 4627
| Specification | Description |
|---|
| MANUFACTURED NEW | 2005 |

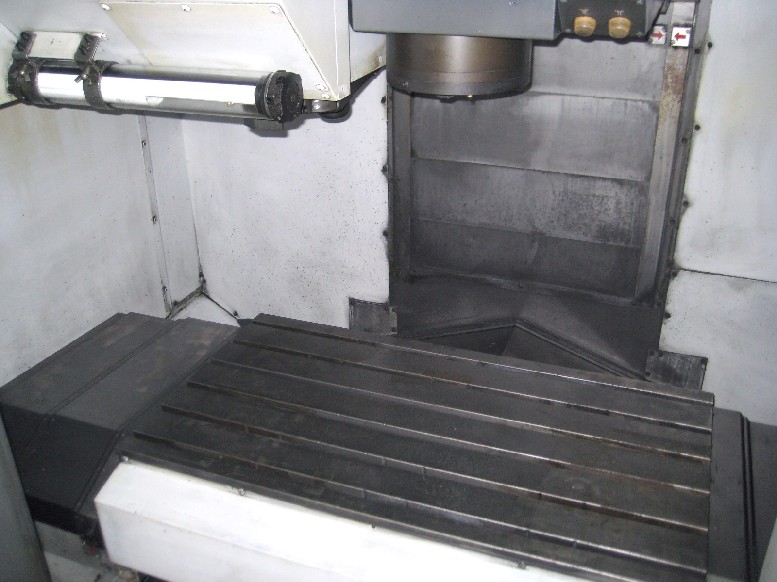

| TABLE SIZE | 39.4" x 23" |
| MAXIMUM TABLE LOAD | 1380 LBS |
| X AXIS TRAVEL | 31.5" |
| Y AXIS TRAVEL | 20.1" |
| Z AXIS TRAVEL | 20.1" |
| RAPID TRAVERSE RATE X, Y & Z AXES | 1653 IPM |
| CUTTING FEED RATE | 0.1 - 630 IPM |
| SPINDLE TAPER | CAT 50 |
| SPINDLE SPEEDS | 8,000 RPM |
| SPINDLE MOTOR | 30 HP |
| TOOL CHANGER CAPACITY | 30 STATION ATC |
| MAXIMUM TOOL WEIGHT | 17.6 LBS |
| TOOL CHANGE TIME (TOOL TO TOOL) | 0.9 SECONDS |
| TOOL CHANGE TIME (CHIP TO CHIP) | 2.8 SECONDS |
| WEIGHT, APPROX. | 15,800 LBS |
| DIMENSIONS, APPROX. | 120" x 99" x 115" |
Equipped With:
MORI MSX-501 (FANUC 18iM) CONTROL,
MAPPS CONVERSATIONAL PROGRAMMING,
RS-232C PORT INTERFACE FOR DNC OPERATION,
COOLANT THROUGH THE SPINDLE,

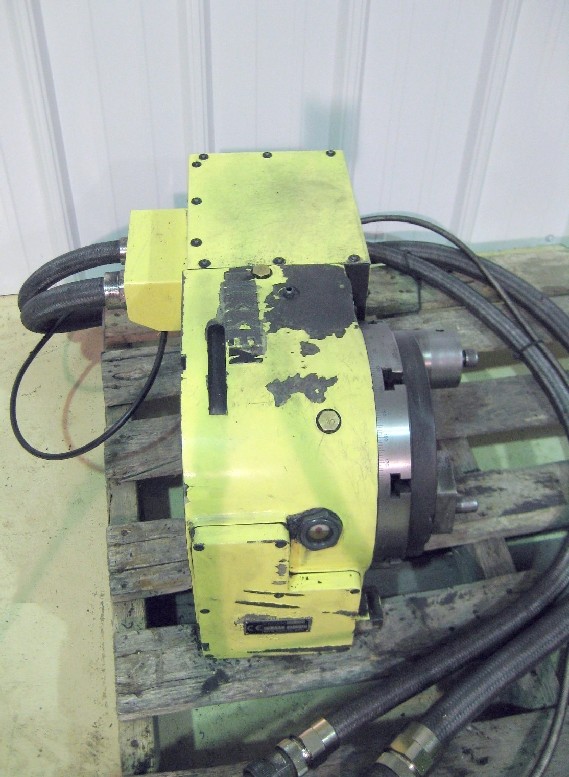

10" NIKKON 4TH AXIS ROTARY TABLE (#A06B-0223-B000),
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
SPINDLE CHILLER (SPINDLE OIL COOLING SYSTEM),
RIGHT SIDE LIFT-UP CHIP CONVEYOR,
STANDARD COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED SPLASH GUARDING, ALL AVAILABLE MANUALS
***HIGH-SPEED RIGID BOX WAY***
