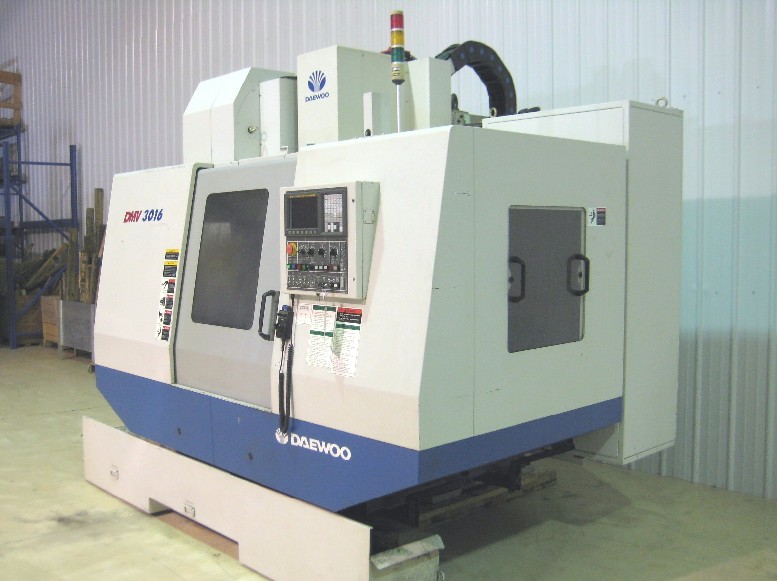

DAEWOO DOOSAN DMV-3016 CNC MILL, BOX WAY, FANUC OiMB, 32 x 16 x 20, 1200 IPM, COOLANT THROUGH SPINDLE, 8000 RPM, '04
Stock Number: 4620
Click to view larger photo
Request a quote on stock# 4620
| Specification | Description |
|---|
| MANUFACTURED NEW | JUNE 2004 |

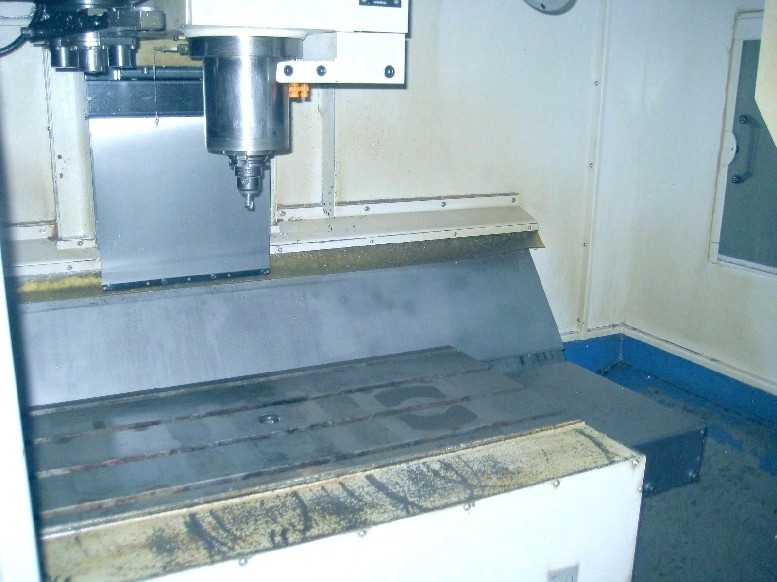

| TABLE SIZE | 47" x 20" |
| MAXIMUM TABLE LOAD | 1,320 LBS |
| X AXIS TRAVEL | 32" |
| Y AXIS TRAVEL | 16" |
| Z AXIS TRAVEL | 20" |
| SPINDLE NOSE TO TABLE TOP | 6" - 26" |
| RAPID TRAVERSE RATE X & Y AXES | 1181 IPM |
| RAPID TRAVERSE RATE Z AXIS | 945 IPM |
| SPINDLE TAPER | CAT 40 |
| SPINDLE SPEEDS | 50 - 8,000 RPM |
| SPINDLE MOTOR | 15 HP |
| TOOL CHANGER CAPACITY, SIDE | 24 + 1 SIDE MOUNT |
| DIMENSIONS, APPROX. | 116"L x 99"W x 108"H |
| WEIGHT, APPROX. | 13,000 LBS |
Equipped With:

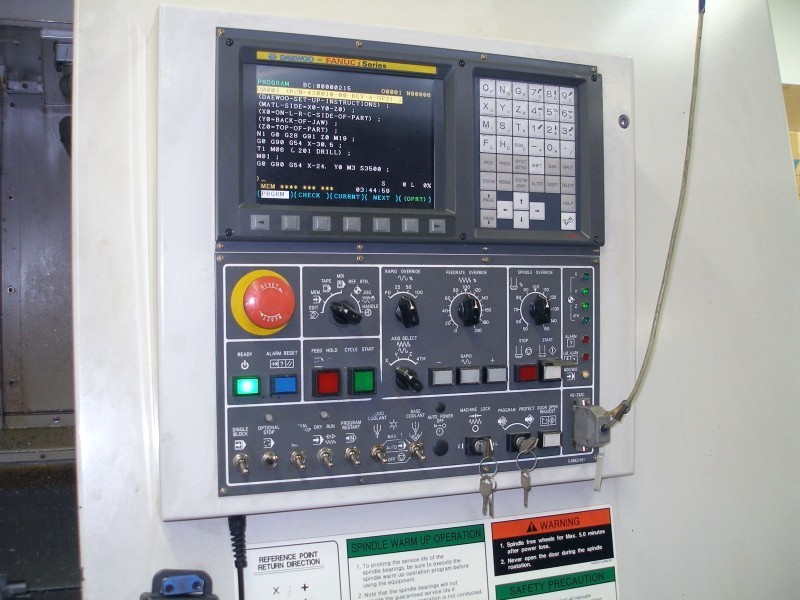

FANUC OiMB CNC COLOR CONTROL,
RS-232C PORT INTERFACE FOR DNC OPERATION,
THROUGH-THE-SPINDLE COOLANT SYSTEM,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
HAND-HELD REMOTE PULSE GENERATOR,
CUSTOM MACRO B (USER DEFINABLE),

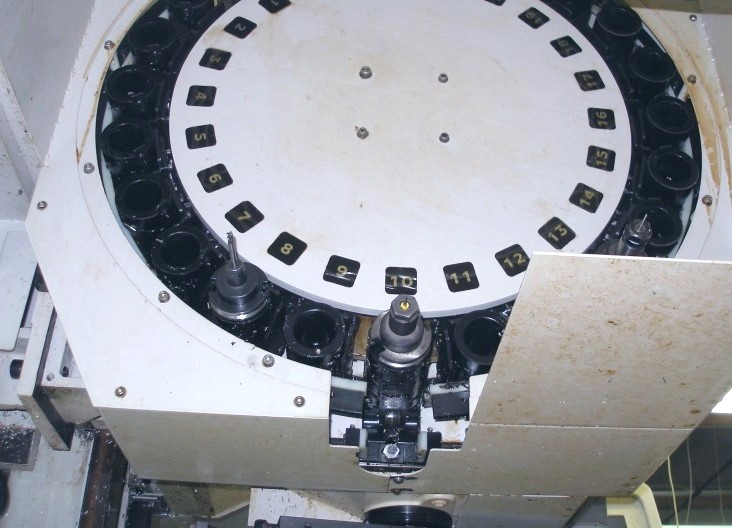

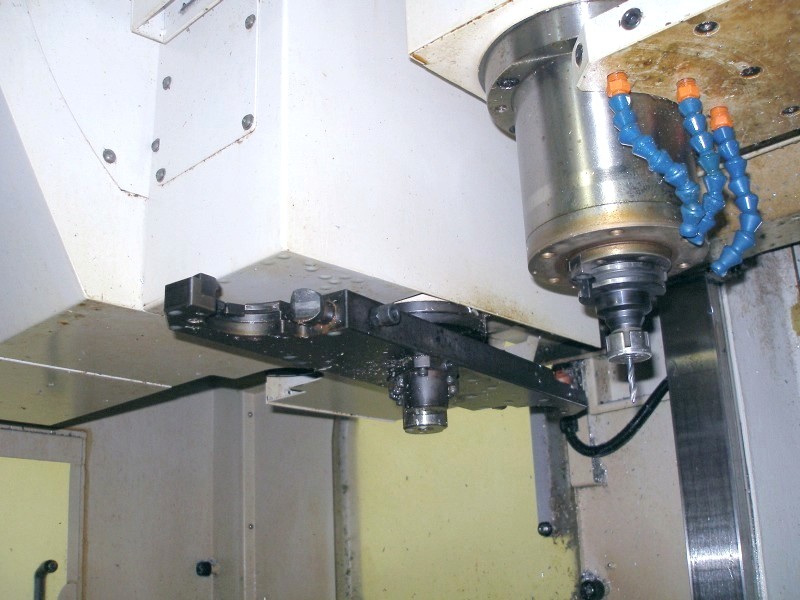

CAM TYPE DOUBLE SWING-ARM ATC (SIDE MOUNTED),
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
***RIGID BOX WAY CONSTRUCTION***
