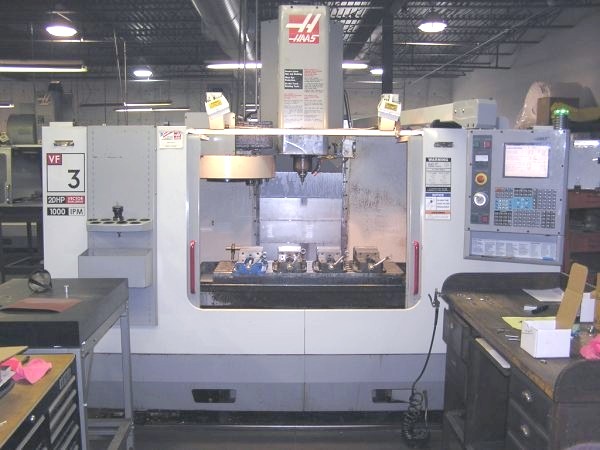

HAAS VF-3 CNC MILL, 40 x 20 x 25, 7500 RPM, 20 HP, UPGRADED MEMORY, 4th AXIS, PCKG D, '04 (4604)
Stock Number: 4604
Click to view larger photo
Request a quote on stock# 4604
| Specification | Description |
|---|
| DATE OF MANUFACTURE | 4/2004 |

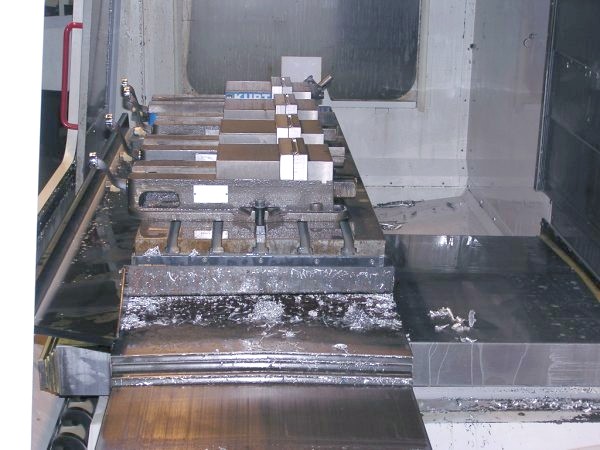

| TABLE SIZE | 48" x 18" |
| MAXIMUM PALLET LOAD | 3,000 LBS |
| SPINDLE NOSE TO PALLET TOP | 4" - 29" |
| X AXIS TRAVEL | 40" |
| Y AXIS TRAVEL | 20" |
| Z AXIS TRAVEL | 25" |
| RAPID TRAVERSE RATE X, Y & Z AXES | 1000 IPM |
| CUTTING FEED RATE | 0.1 - 650 IPM |
| SPINDLE TAPER | CAT 40 |
| SPINDLE SPEEDS | 0-7500 RPM |
| SPINDLE MOTOR | 20 HP |
| TOOL CHANGER CAPACITY | 20 ATC |
| MAXIMUM TOOL WEIGHT | 12 LBS |
| MACHINE WEIGHT | 13,500 LBS |
| APPROXIMATE DIMENSIONS | 139" x 110" x 119.5" |
Equipped With:
HAAS TRIPLE HIGH-SPEED CNC CONTROL WITH 15 in COLOR LCD,
RS-232C PORT INTERFACE FOR DNC OPERATION,
RIGID TAPPING (SYNCHRONOUS TAPPING / SOLID TAPPING,
PRE-WIRED FOR 4TH AXIS (NO ROTARY TABLE INCLUDED)
PROGRAMMABLE COOLANT NOZZLE, 1 MB MEMORY UPGRADE
HIGH INTENSITY LIGHTING, SPINDLE ORIENTATION,
1.44MB FLOPPY DISK DRIVE, CHIP AUGER, MOUNTED TOOL RACKS,
STANDARD COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
