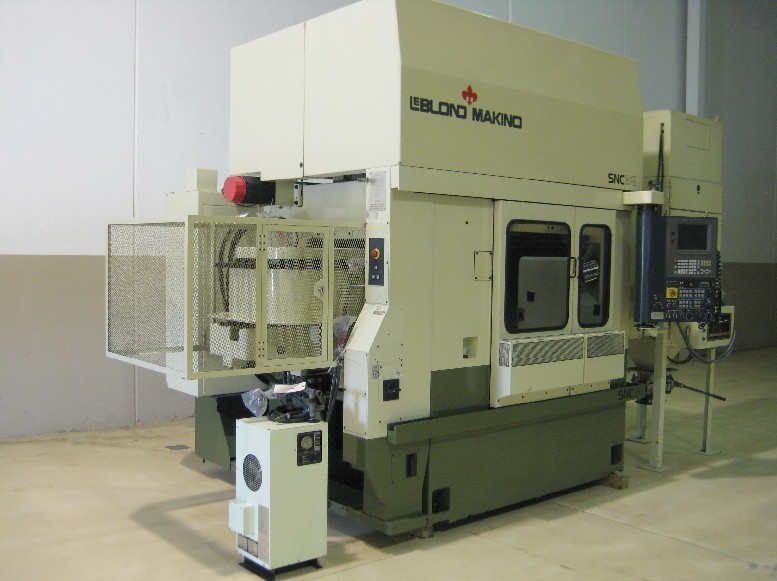

CNC VERTICAL MACHINING CENTERS: LEBLOND MAKINO SNC 86 HIGH SPEED CNC MILL, FANUC 16A CONTROL, 31.5 x 23.6 x 15.7, 15000 RPM, HIGH-SPEED, 1993 (4603)

LEBLOND MAKINO SNC 86 HIGH SPEED CNC MILL, FANUC 16A CONTROL, 31.5 x 23.6 x 15.7, 15000 RPM, HIGH-SPEED, 1993 (4603)

Stock Number: 4603

CNC VERTICAL MACHINING CENTERS: LEBLOND MAKINO SNC 86 HIGH SPEED CNC MILL, FANUC 16A CONTROL, 31.5 x 23.6 x 15.7, 15000 RPM, HIGH-SPEED, 1993 (4603), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: LEBLOND MAKINO SNC 86 HIGH SPEED CNC MILL, FANUC 16A CONTROL, 31.5 x 23.6 x 15.7, 15000 RPM, HIGH-SPEED, 1993 (4603), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: LEBLOND MAKINO SNC 86 HIGH SPEED CNC MILL, FANUC 16A CONTROL, 31.5 x 23.6 x 15.7, 15000 RPM, HIGH-SPEED, 1993 (4603), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: LEBLOND MAKINO SNC 86 HIGH SPEED CNC MILL, FANUC 16A CONTROL, 31.5 x 23.6 x 15.7, 15000 RPM, HIGH-SPEED, 1993 (4603), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: LEBLOND MAKINO SNC 86 HIGH SPEED CNC MILL, FANUC 16A CONTROL, 31.5 x 23.6 x 15.7, 15000 RPM, HIGH-SPEED, 1993 (4603), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: LEBLOND MAKINO SNC 86 HIGH SPEED CNC MILL, FANUC 16A CONTROL, 31.5 x 23.6 x 15.7, 15000 RPM, HIGH-SPEED, 1993 (4603), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: LEBLOND MAKINO SNC 86 HIGH SPEED CNC MILL, FANUC 16A CONTROL, 31.5 x 23.6 x 15.7, 15000 RPM, HIGH-SPEED, 1993 (4603), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: LEBLOND MAKINO SNC 86 HIGH SPEED CNC MILL, FANUC 16A CONTROL, 31.5 x 23.6 x 15.7, 15000 RPM, HIGH-SPEED, 1993 (4603), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: LEBLOND MAKINO SNC 86 HIGH SPEED CNC MILL, FANUC 16A CONTROL, 31.5 x 23.6 x 15.7, 15000 RPM, HIGH-SPEED, 1993 (4603), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4603 CNC VERTICAL MACHINING CENTERS: LEBLOND MAKINO SNC 86 HIGH SPEED CNC MILL, FANUC 16A CONTROL, 31.5 x 23.6 x 15.7, 15000 RPM, HIGH-SPEED, 1993 (4603)Request a quote on stock# 4603
SpecificationDescription
MANUFACTURED NEW1993

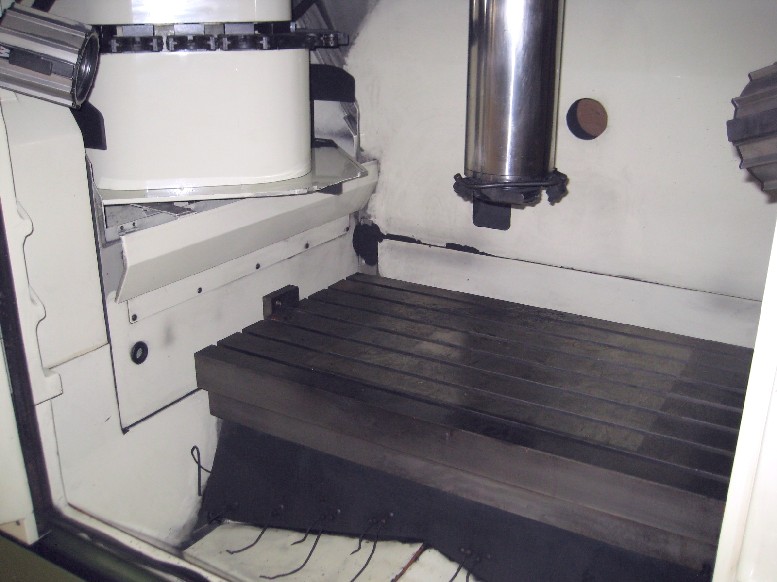

TABLE SIZE39" x 24"
TABLE LOAD, MAX.2205 LBS
X AXIS TRAVEL31.5"
Y AXIS TRAVEL23.6"
Z AXIS TRAVEL15.7"
TABLE TOP TO SPINDAL (MIN/MAX)11" / 26.7"
RAPID TRAVERSE RATE X, Y & Z AXES591 IPM
CUTTING FEED RATE236 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS200 - 15,000 RPM
SPINDLE MOTOR5 HP
TOOL CHANGER CAPACITY30 ATC
DIMENSIONS, APPROX.142"L x 100"W x 116"H
WEIGHT, APPROX.19,000 LBS

Equipped With:

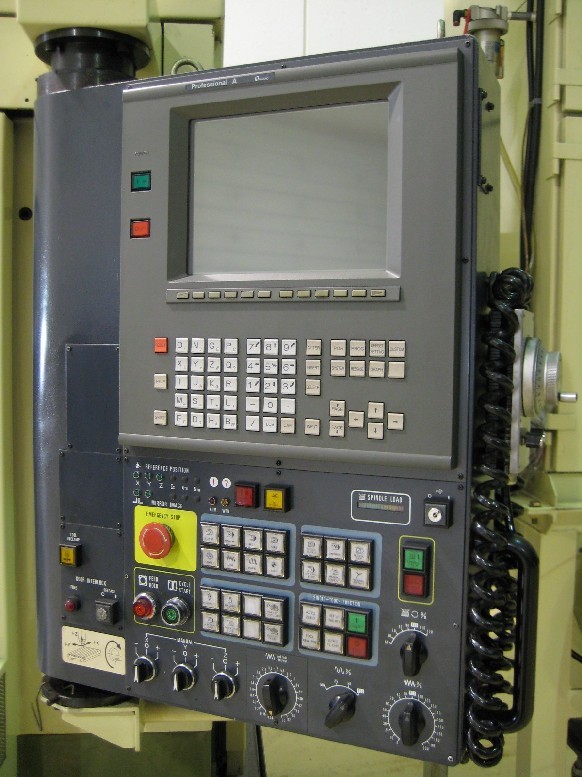

FANUC 16A CNC CONVERSATIONAL CONTROL,
RS-232C PORT INTERFACE FOR DNC OPERATION,
SUPER GEOMETRIC INTELLIGENCE (SGI),
REMOTE JOG HANDLE MOVEMENT, AIR DRYER,
THRU-SPINDLE AIR SYSTEM,

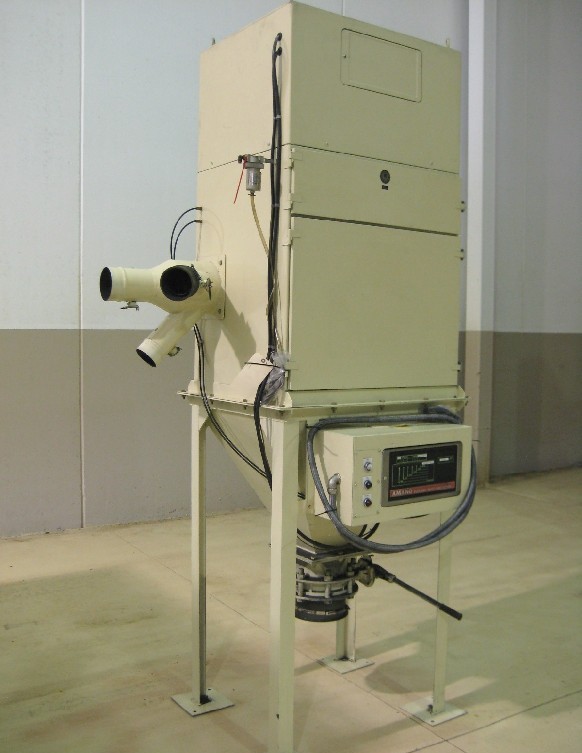

AMANO ELCTRO DUST COLLECTOR UNIT W/HOPPER,
AIR BLAST BLOWER,
TOOLING AVAILABLE,
CIRCULAR INTERPOLATION RADIUS PROGRAMMING,
ALL AVAILABLE MANUALES
