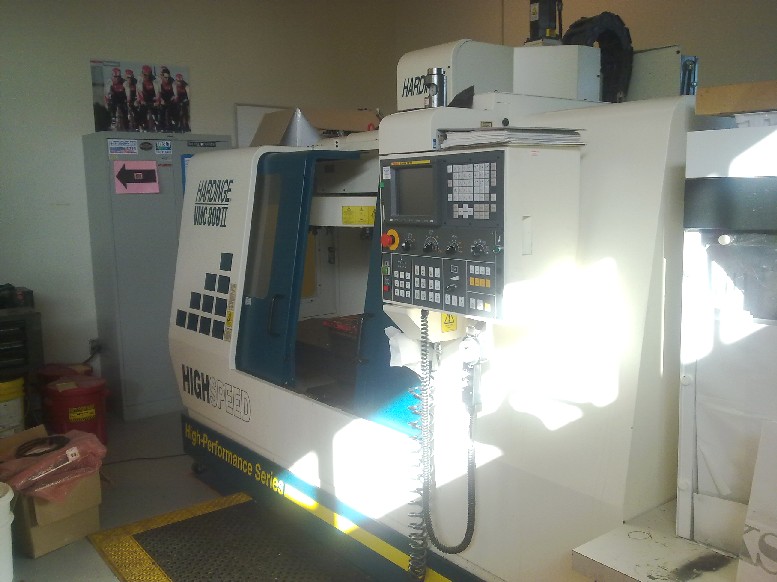

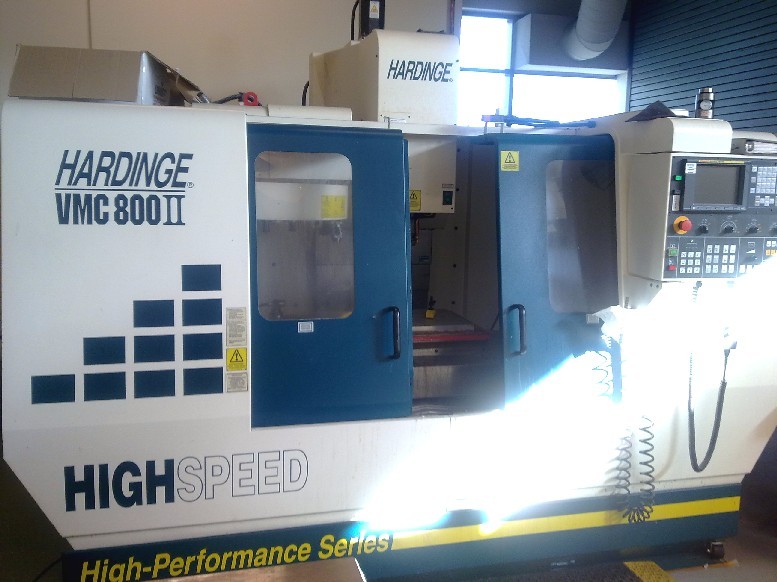

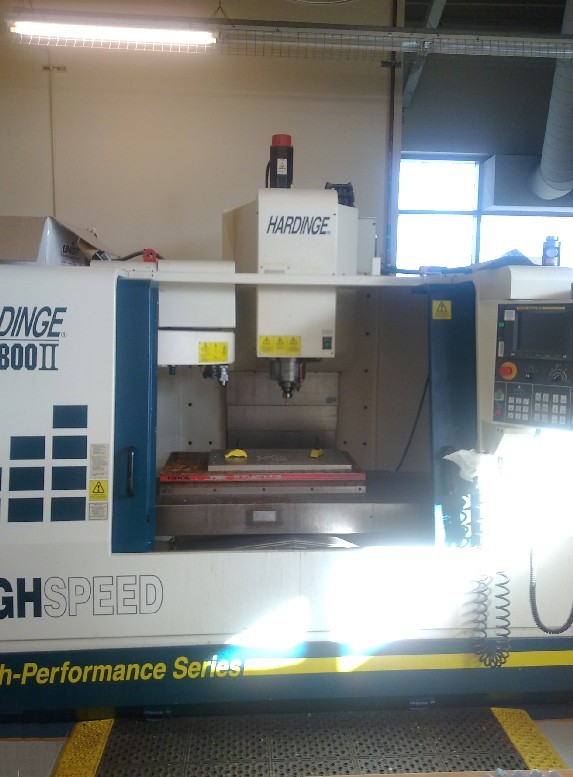

HARDINGE VMC800 II CNC MILL, 12000 RPM HIGH-SPEED MOLD/DIE PKG, 32 x 20 x 20, 22 HP, LOOK-AHEAD, FANUC 18-M Ctrl, 2002
Stock Number: 4600
Click to view larger photo
Request a quote on stock# 4600
| Specification | Description |
|---|
| YEAR OF MANUFACTURE | 2002 |

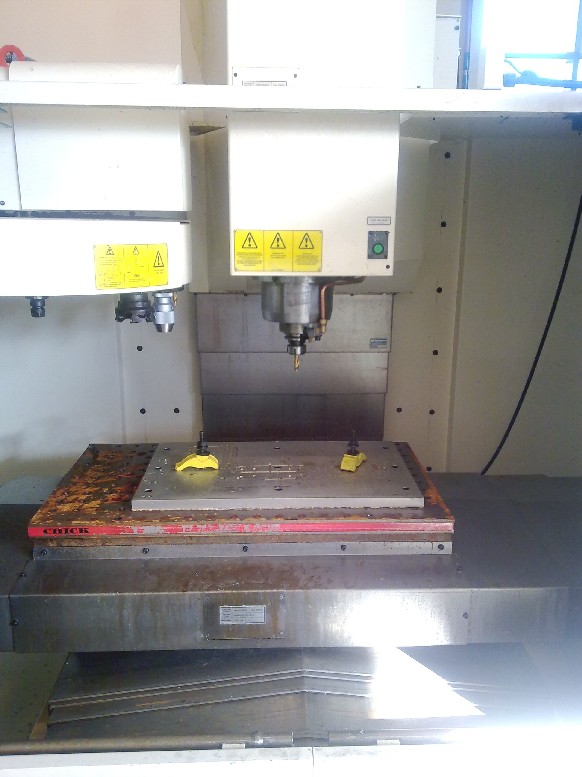

| TABLE SIZE | 36.4" x 20" |
| MAXIMUM TABLE LOAD | 1,540 LBS |
| SPINDLE NOSE TO TABLE TOP | 6.1" - 26.1" |
| X AXIS TRAVEL | 31.5" |
| Y AXIS TRAVEL | 20.1" |
| Z AXIS TRAVEL | 20.1" |
| RAPID TRAVERSE RATE ALL AXIS | 1180 IPM |
| CUTTING FEED RATE | 0.1 - 472 IPM |
| SPINDLE TAPER | CAT 40 |
| SPINDLE SPEEDS, HIGH-SPEED | 0 - 12,000 RPM |
| SPINDLE MOTOR | 22 HP |
| TOOL CHANGER CAPACITY | 20 STATIONS |
| MAXIMUM TOOL WEIGHT | 13.2 LBS |
| MACHINE WEIGHT, APPROX. | 11,000 LBS |
| DIMENSIONS, APPROX. | 116"L x 85"W x 108"H |
Equipped With:

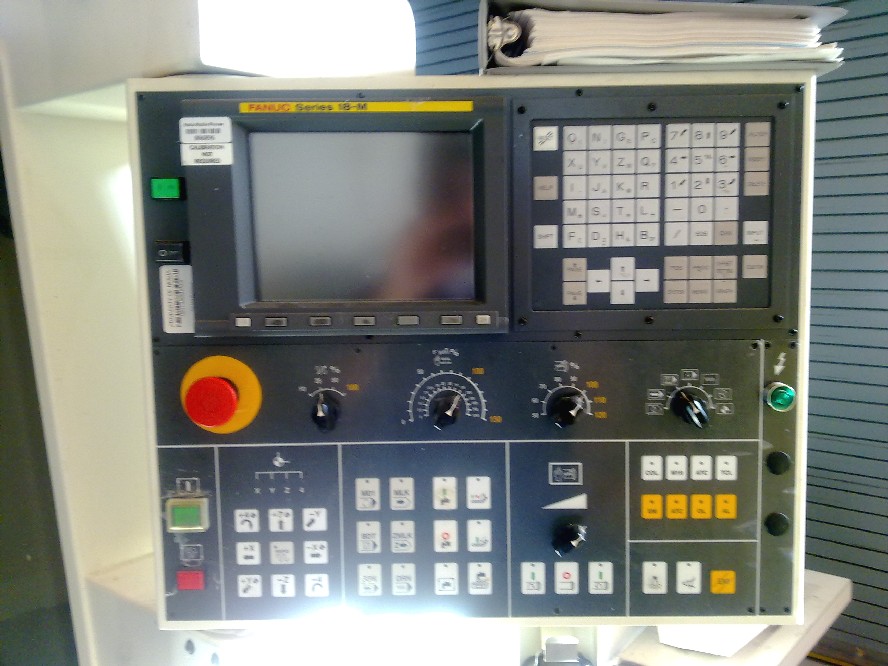

FANUC 18-M CNC CTRL W/RS-232C PORT INTERFACE,
"HIGH-PERFORMANCE OPTION" & "HIGH-SPEED OPTION",
"ADVANCED (LOOKAHEAD) PREVIEW OPTION",
"ADVANCED CONTOUR CONTROL OPTION (AICC)",
REMOTE JOG HANDLE, RIGID TAPPING,
PROGRAMMABLE SURROUND TOOL COOLANT w/(5) PORTS,
PRE-WIRED 4TH AXIS, CUSTOM MACRO B ORIENTATION,
HELICAL INTERPOLATION,
NON-CONTACT MAGNETIC ENCODERS,
COOLANT CHIP FLUSH AND WASHDOWN HOSE KIT,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
**HIGH-PRECISION MACHINING AT HIGH SPEEDS FOR
COMPLEX MOLD/DIE SHAPES**
***VIDEO AVAILABLE UPON REQUEST***
SEE PHOTOS ATTACHED AND WEBSITE FOR MORE: www.MWMachinery.com
