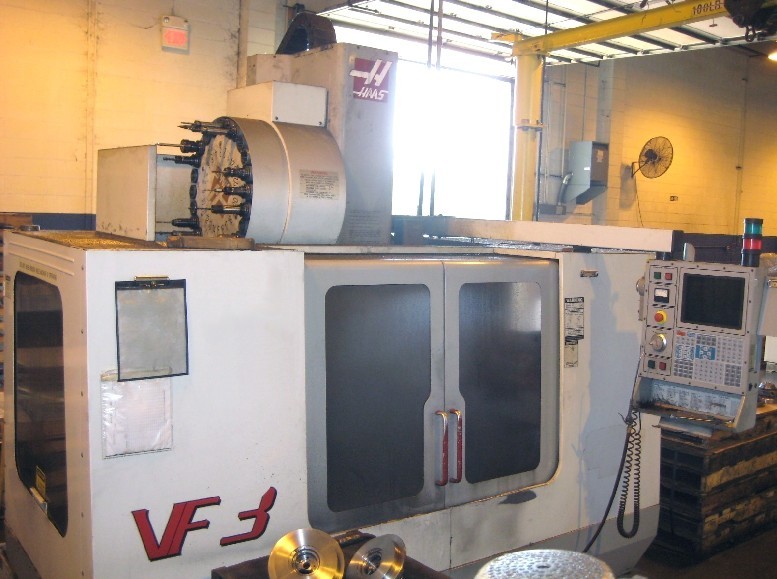

HAAS VF-3, CNC MILL, 40 x 20 x 25, 7500 RPM w/GEARBOX, 20 HP,COOL THRU, 24 SIDE MOUNT ATC, '00 (4598)
Stock Number: 4598
Click to view larger photo
Request a quote on stock# 4598
| Specification | Description |
|---|
| DATE OF MANUFACTURE | 2000 |
| TABLE SIZE | 48" x 18" |
| MAXIMUM PALLET LOAD | 3,000 LBS |
| SPINDLE NOSE TO PALLET TOP | 4" - 29" |
| X AXIS TRAVEL | 40" |
| Y AXIS TRAVEL | 20" |
| Z AXIS TRAVEL | 25" |
| RAPID TRAVERSE RATE X, Y & Z AXES | 750 IPM |
| CUTTING FEED RATE | 0.1 - 500 IPM |
| SPINDLE TAPER | CAT 40 |
| SPINDLE SPEEDS (2 SPEED GEARED) | 0 - 7,500 RPM |
| SPINDLE MOTOR | 20 HP |
| TOOL CHANGER CAPACITY, SIDE MOUNT | 24+1 STATIONS |
| MAXIMUM TOOL WEIGHT | 12 LBS |
| MACHINE WEIGHT, APPROX. | 13,500 LBS |
| DIMENSIONS, APPROX. | 139" x 110" x 119.5" |
Equipped With:

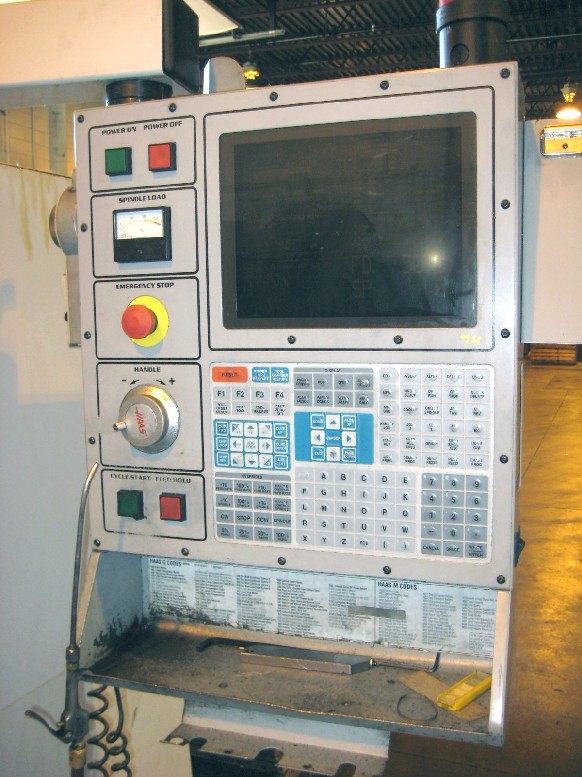

HAAS CNC CONTROL w/MONITOR,
RS-232 COM. PORT FOR DNC,
THROUGH SPINDLE COOLANT (300 PSI PRESSURE),
GEARBOX SPINDLE (20 HP),
24+1 STATION SIDE MOUNT ATC,
VISUAL QUICKCODE (CONVERSATIONAL w/GRAPHICS),
REMOTE PULSE GENERATOR (REMOTE JOG HANDLE/WHEEL),
PRE-WIRED FOR 4TH AXIS (NO ROTARY TABLE INCLUDED),
PROGRAMMABLE DIRECTION COOLANT NOZZLE,
1.44MB FLOPPY DISK DRIVE, CHIP AUGER, CUSTOM MACROS,
SPINDLE ORIANTATION, 1 MEG MEMORY UPGRADE,
COORDINATE ROTATION & SCALING,
RIGID TAPPING (SYNCHRONOUS TAPPING / SOLID TAPPING),
STANDARD COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
