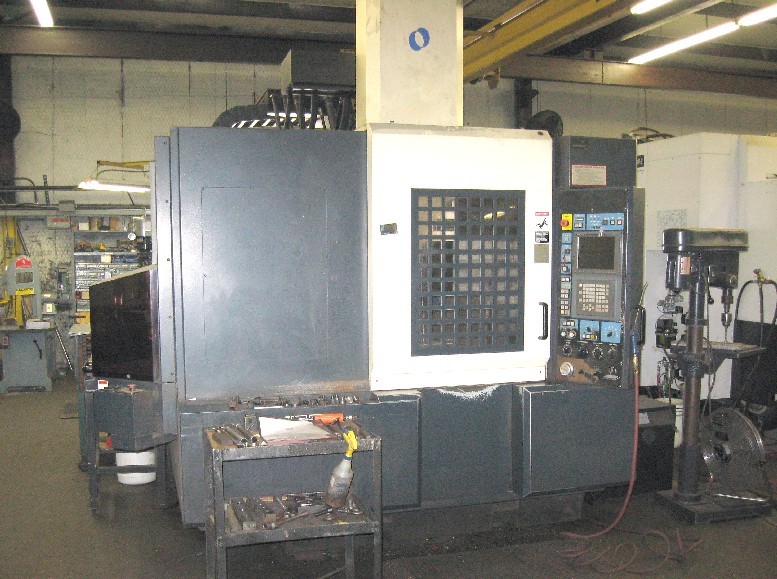

MAKINO V55 CNC MILL, 20000 RPM, 35.4 x 19.7 x 17.7, 1968 IPM RAPIDS, HSKA63 SPINDLE, 30 HP, FANUC PRO 16i-M, 25 ATC, '01

MAKINO V55 CNC MILL, 20000 RPM, 35.4 x 19.7 x 17.7, 1968 IPM RAPIDS, HSKA63 SPINDLE, 30 HP, FANUC PRO 16i-M, 25 ATC, '01

Stock Number: 4597


Click to view larger photo

Request A Quote On Our Stock Number: 4597 MAKINO V55 CNC MILL, 20000 RPM, 35.4 x 19.7 x 17.7, 1968 IPM RAPIDS, HSKA63 SPINDLE, 30 HP, FANUC PRO 16i-M, 25 ATC, '01Request a quote on stock# 4597
SpecificationDescription
MANUFACTURED NEW2001
TABLE SIZE39.4" x 16.5"
MAXIMUM TABLE LOAD1540 LBS
X AXIS TRAVEL35.4"
Y AXIS TRAVEL19.7"
Z AXIS TRAVEL17.7"
CUTTING FEED RATE X, Y & Z AXES1968 IPM
RAPID TRAVERSE RATE X, Y & Z AXES1968 IPM
SPINDLE TAPERHSK-A63
SPINDLE SPEEDS20 - 20,000 RPM
SPINDLE MOTOR29.5 / 25 HP
NUMBER OF SPINDLE SPEED RANGES2
TOOL CHANGER CAPACITY25
WEIGHT, APPROX.20,500 LBS
DIMENSIONS, APPROX.109" x 119" x 122"

Equipped With:
FANUC PRO 3 (FANUC 16i-M) CNC CONTROL w/SUPER
GEOMETRIC INTELLIGENCE (SGI) & RS232 PORT,
HELICAL INTERPOLATION, DATA SERVER BOARD,
NURBS INTERPOLATION (COMPLEX CONTOUR MILLING),
20,000 RPM HIGH-SPEED SPINDLE (DIE MOLD PACKAGE),
AUTO AIR BLAST, TOOL LIFE MONITORING,
HIGH-SPEED FEED RATE (1968 ipm),
AIR DRYER, ALL AVAILABLE MANUALS
