CNC VERTICAL MACHINING CENTERS: HAAS VF-2 CNC MILL, 30 x 16 x 20, 10,000 RPM, 20 ATC, CLEAN, '94 (4592)

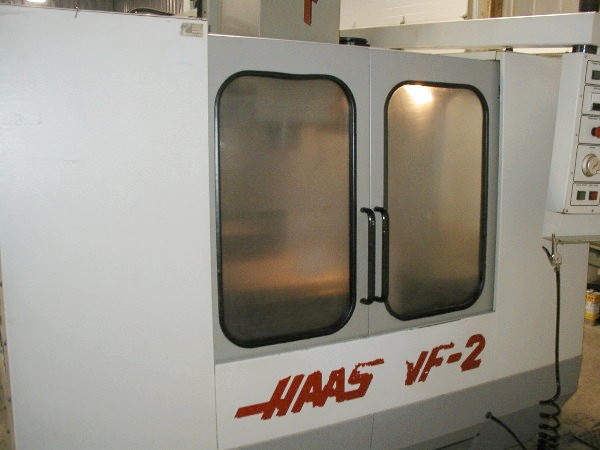

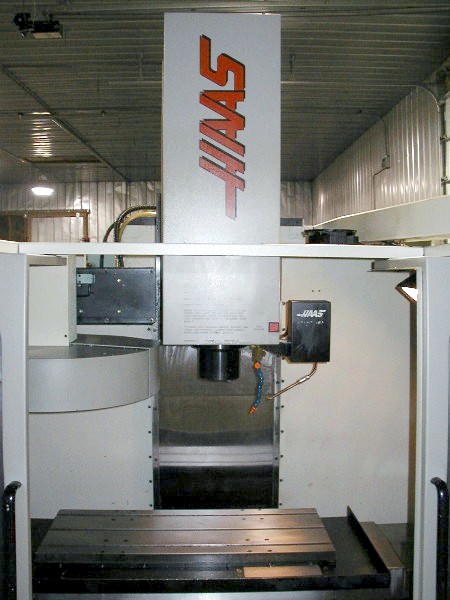

HAAS VF-2 CNC MILL, 30 x 16 x 20, 10,000 RPM, 20 ATC, CLEAN, '94 (4592)

Stock Number: 4592

CNC VERTICAL MACHINING CENTERS: HAAS VF-2 CNC MILL, 30 x 16 x 20, 10,000 RPM, 20 ATC, CLEAN, '94 (4592), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HAAS VF-2 CNC MILL, 30 x 16 x 20, 10,000 RPM, 20 ATC, CLEAN, '94 (4592), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HAAS VF-2 CNC MILL, 30 x 16 x 20, 10,000 RPM, 20 ATC, CLEAN, '94 (4592), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HAAS VF-2 CNC MILL, 30 x 16 x 20, 10,000 RPM, 20 ATC, CLEAN, '94 (4592), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4592 CNC VERTICAL MACHINING CENTERS: HAAS VF-2 CNC MILL, 30 x 16 x 20, 10,000 RPM, 20 ATC, CLEAN, '94 (4592)Request a quote on stock# 4592
SpecificationDescription
DATE OF MANUFACTURE1994
TABLE SIZE36" x 14"
MAXIMUM TABLE LOAD750 LBS
SPINDLE NOSE TO TABLE TOP4" - 24"
X AXIS TRAVEL30"
Y AXIS TRAVEL16"
Z AXIS TRAVEL20"
RAPID TRAVERSE RATE X, Y & Z AXES500 IPM
CUTTING FEED RATE0.1 - 200 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS (2 SPEED GEARED)0 - 10,000 RPM
SPINDLE MOTOR15 HP

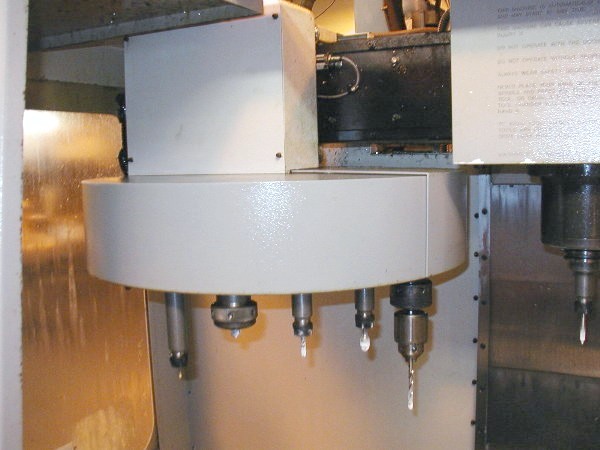

TOOL CHANGER CAPACITY20 ATC
MAXIMUM TOOL WEIGHT12 LBS
MACHINE WEIGHT7000 LBS
APPROXIMATE DIMENSIONS76" x 86" x 105"

Equipped With:
HAAS CNC CONTROL WITH 12" CRT & RS-232C PORT INTERFACE
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)
CHIP AUGER, FLOPPY DRIVE, QUIKCODE,
HAAS PROGRAMMABLE COOLANT NOZZLE
PRE-WIRED FOR 4TH AXIS ROTARY TABLE
ALL AVAILABLE TOOL HOLDERS (9)
(2) 6" PARLEC VICES, HIGH TORQUE GEARBOX,
STANDARD COOLANT SYSTEM WITH TANK & PUMP
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
