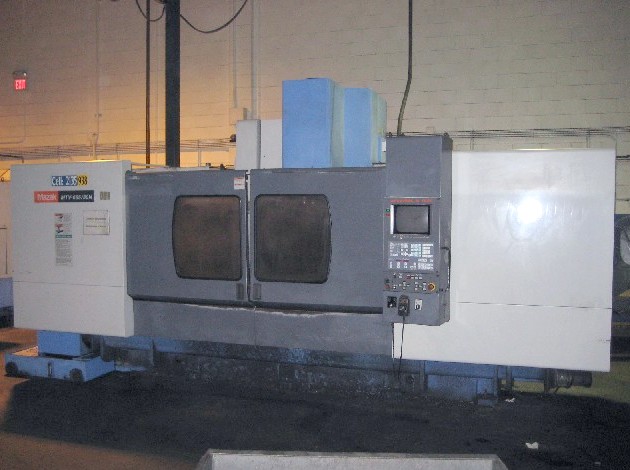

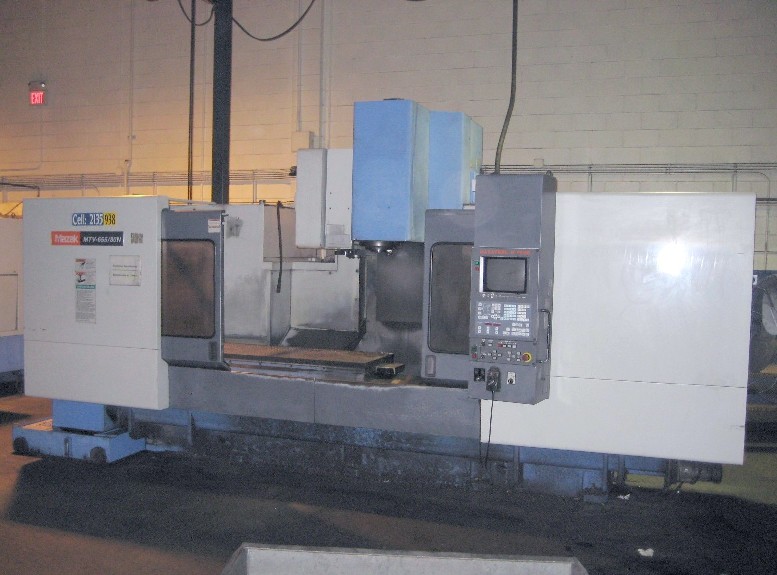

CNC VERTICAL MACHINING CENTERS: MAZAK V-655 /80 CNC MILL, CAT 50 TAPER, MAZATROL M-PLUS, 79 x 26 x 26 TRAVELS, 6000 RPM, CHIP, BOX WAY, '98 (4586)

MAZAK V-655 /80 CNC MILL, CAT 50 TAPER, MAZATROL M-PLUS, 79 x 26 x 26 TRAVELS, 6000 RPM, CHIP, BOX WAY, '98 (4586)

Stock Number: 4586

CNC VERTICAL MACHINING CENTERS: MAZAK V-655 /80 CNC MILL, CAT 50 TAPER, MAZATROL M-PLUS, 79 x 26 x 26 TRAVELS, 6000 RPM, CHIP, BOX WAY, '98 (4586), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MAZAK V-655 /80 CNC MILL, CAT 50 TAPER, MAZATROL M-PLUS, 79 x 26 x 26 TRAVELS, 6000 RPM, CHIP, BOX WAY, '98 (4586), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MAZAK V-655 /80 CNC MILL, CAT 50 TAPER, MAZATROL M-PLUS, 79 x 26 x 26 TRAVELS, 6000 RPM, CHIP, BOX WAY, '98 (4586), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MAZAK V-655 /80 CNC MILL, CAT 50 TAPER, MAZATROL M-PLUS, 79 x 26 x 26 TRAVELS, 6000 RPM, CHIP, BOX WAY, '98 (4586), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MAZAK V-655 /80 CNC MILL, CAT 50 TAPER, MAZATROL M-PLUS, 79 x 26 x 26 TRAVELS, 6000 RPM, CHIP, BOX WAY, '98 (4586), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MAZAK V-655 /80 CNC MILL, CAT 50 TAPER, MAZATROL M-PLUS, 79 x 26 x 26 TRAVELS, 6000 RPM, CHIP, BOX WAY, '98 (4586), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MAZAK V-655 /80 CNC MILL, CAT 50 TAPER, MAZATROL M-PLUS, 79 x 26 x 26 TRAVELS, 6000 RPM, CHIP, BOX WAY, '98 (4586), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4586 CNC VERTICAL MACHINING CENTERS: MAZAK V-655 /80 CNC MILL, CAT 50 TAPER, MAZATROL M-PLUS, 79 x 26 x 26 TRAVELS, 6000 RPM, CHIP, BOX WAY, '98 (4586)Request a quote on stock# 4586
SpecificationDescription
DATE OF MANUFACTURE1998

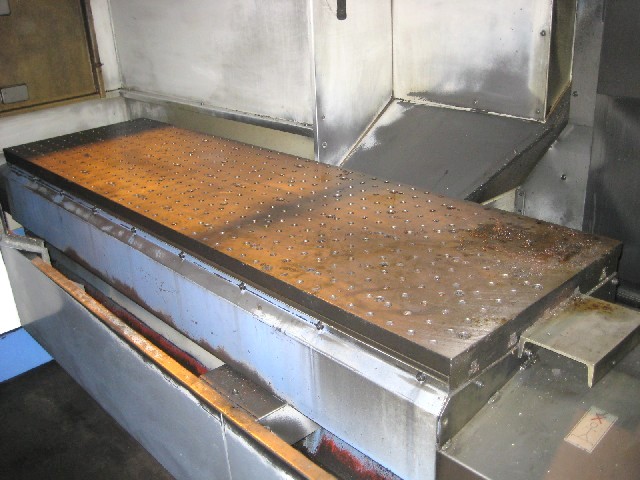

TABLE SIZE88.2" x 25.2"
MAXIMUM PALLET LOAD5,500 LBS
SPINDLE NOSE TO PALLET TOP7.9" - 33.5"
X AXIS TRAVEL78.74"
Y AXIS TRAVEL25.59"
Z AXIS TRAVEL25.59"
RAPID TRAVERSE RATE X & Y AXES1024 IPM
RAPID TRAVERSE RATE Z AXIS787 IPM
CUTTING FEED RATE0.04 - 315 IPM
SPINDLE TAPERCAT 50
SPINDLE SPEEDS (2 SPEED GEARED)25 - 6,000 RPM
SPINDLE MOTOR25 HP

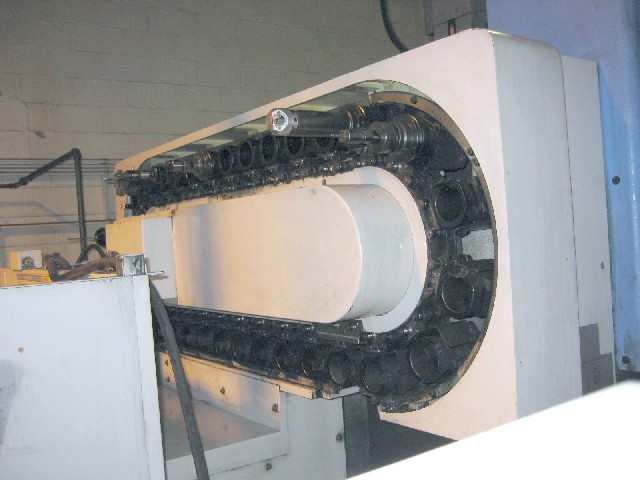

TOOL CHANGER CAPACITY30 STATION ATC
TOOL CHANGE TIME (TOOL TO TOOL)2.4 SECONDS
MAXIMUM TOOL WEIGHT44.1 LBS
FLOOR SPACE (APPROX.)163" x 217" x 125"
MACHINE WEIGHT (APPROX.)28,090 LBS

Equipped With:
MAZATROL M-PLUS CNC CONTROL WITH 9" CRT SCREEN
RS-232C PORT INTERFACE FOR DNC OPERATION,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
TOOL LIFE MONTIORING, TOOL BREAKAGE DETECTION,
RIGID BOX WAY DESIGN, CHIP CONVEYOR,
STANDARD COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
