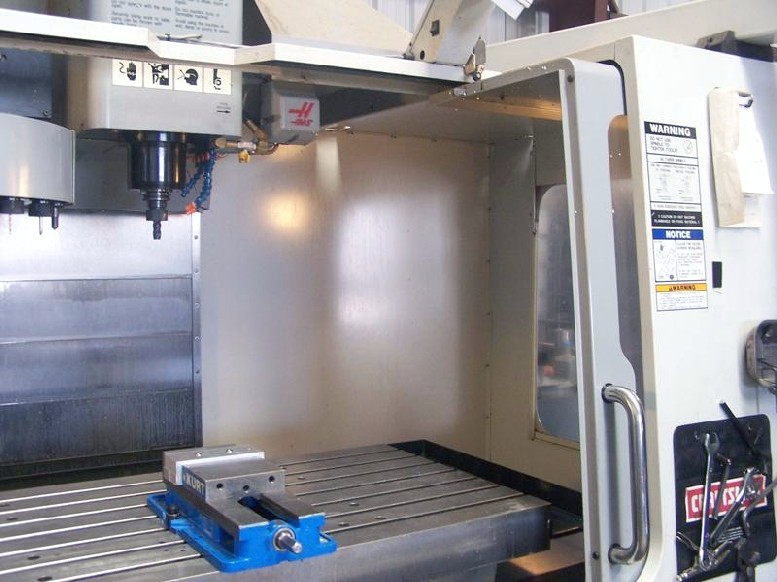

HAAS VF-3 YT CNC MILL, 40 x 26 x 25, 10000 RPM, 30 HP, GEARBOX, 4th AXIS HRT-210 ROTARY TABLE, EXTENDED Y-AXIS, '05
Stock Number: 4581
Click to view larger photo
Request a quote on stock# 4581
| Specification | Description |
|---|
| MANUFACTURED NEW | 2005 |

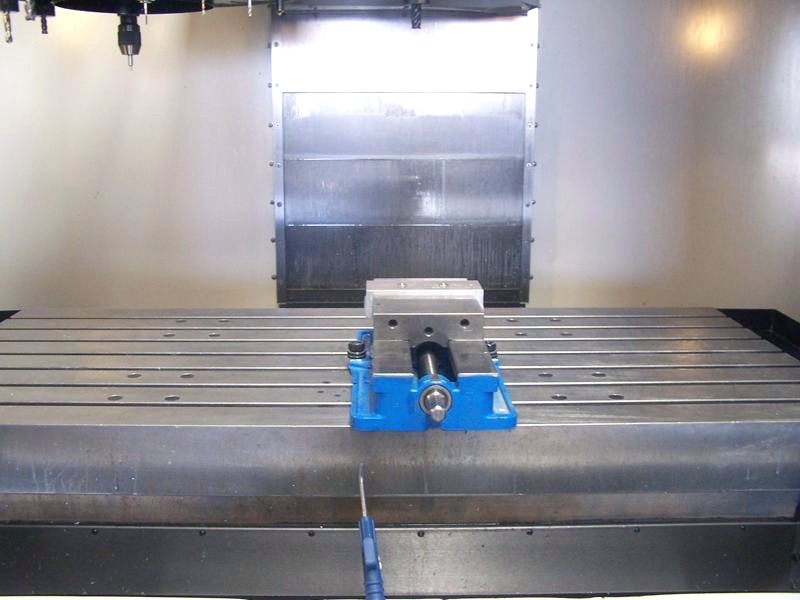

| TABLE SIZE | 48 x 18" |
| MAXIMUM TABLE LOAD | 3500 LBS |
| SPINDLE NOSE TO PALLET TOP | 4" - 29" |
| X-AXIS TRAVEL | 40" |
| Y-AXIS TRAVEL (EXTENDED OPTION) | 26" |
| Z-AXIS TRAVEL | 25" |
| RAPID TRAVERSE RATE X, Y & Z AXES | 1000 IPM |
| CUTTING FEED RATE, MAX. | 650 IPM |
| SPINDLE TAPER | CAT 40 |
| SPINDLE SPEEDS (2-SPEED GEARBOX) | 0 - 10,000 RPM |
| SPINDLE MOTOR | 30 HP |
| TOOL CHANGER CAPACITY | 20 STATION ATC |
| MAXIMUM TOOL WEIGHT | 12 LBS |
| MACHINE WEIGHT, APPROX. | 14,500 LBS |
| DIMENSIONS, APPROX. | 129" x 110" x 119.5" |
Equipped With:
HAAS TRIPLE HIGH-SPEED 32-BIT CNC CTRL
w/15" COLOR LCD & RS-232 COM. PORT FOR DNC,

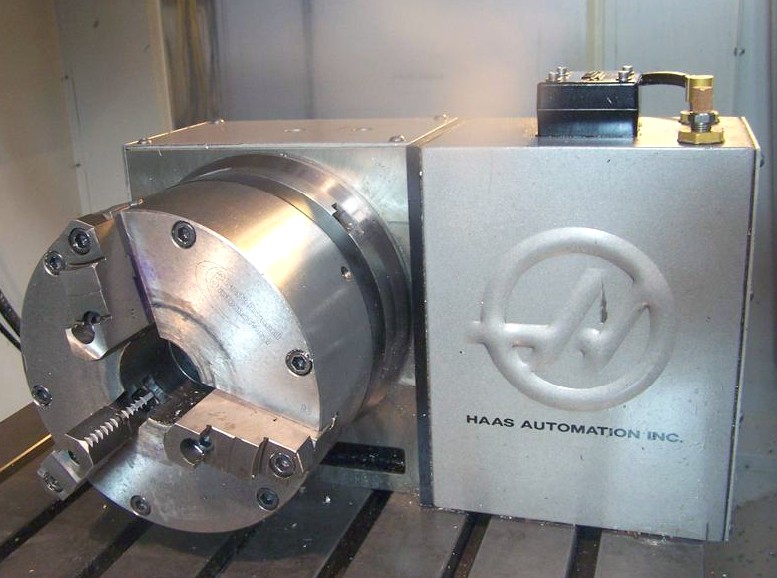

HAAS HRT-210 ROTARY TABLE w/8" 3-JAW CHUCK & TAILSTOCK,
30 HP SPINDLE OPTION W/2-SPEED GEARBOX,
EXTENDED Y-AXIS TRAVEL OPTION (26"),
REMOTE JOG HANDLE/WHEEL, USER-DEFINABLE MACROS,
HIGH INTENSITY OVERHEAD LIGHTING,
PROGRAMMABLE COOLANT DIRECTIONAL NOZZLE,
RIGID TAPPING (SYNCHRONOUS TAPPING / SOLID TAPPING),
VISUAL QUICK CODE PROGRAMMING, CHIP REMOVAL AUGER,
STANDARD COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
