MAZAK VTC-16B CNC VMC MILL, 44 x 16 x 20, 7000 RPM, MAZATROL M32B, RIGID TRAVELING COLUMN, '96 (4572)
Stock Number: 4572

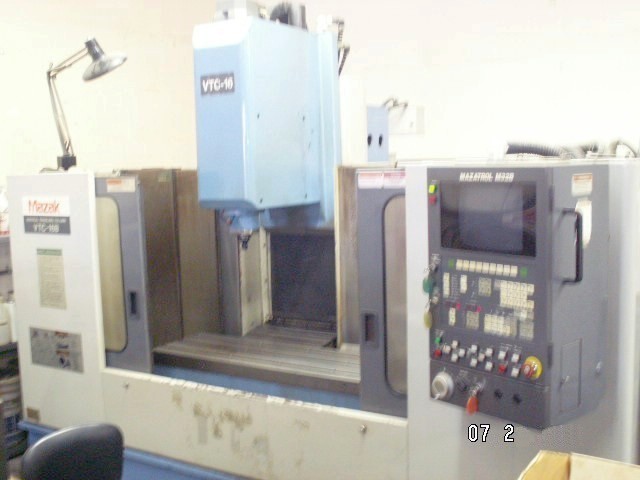

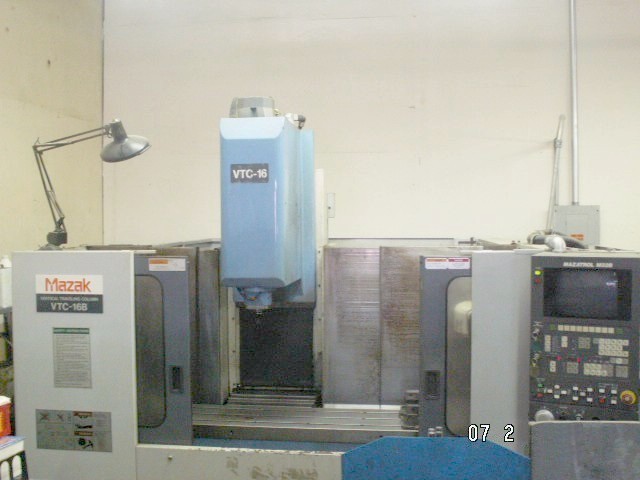

Click to view larger photo
Request a quote on stock# 4572
| Specification | Description |
|---|
| MANUFACTURED NEW | 1996 |
| TABLE SIZE | 57.5" X 20" |
| MAXIMUM TABLE LOAD | 1,210 LBS |
| X AXIS TRAVEL | 44" |
| Y AXIS TRAVEL | 16" |
| Z AXIS TRAVEL | 20" |
| RAPID TRAVERSE RATE X & Y AXES | 787 IPM |
| RAPID TRAVERSE RATE Z AXIS | 590 IPM |
| CUTTING FEED RATE | 0.1 - 197 IPM |
| SPINDLE TAPER | CAT 40 |
| SPINDLE SPEEDS (2 SPEED GEARED) | 40 - 7,000 RPM |
| SPINDLE MOTOR | 15 HP |
| TOOL CHANGER CAPACITY | 24 ATC, BI-DIRECTIONAL |
| MACHINE WEIGHT, APPROX. | 12,000 LBS |
Equipped With:

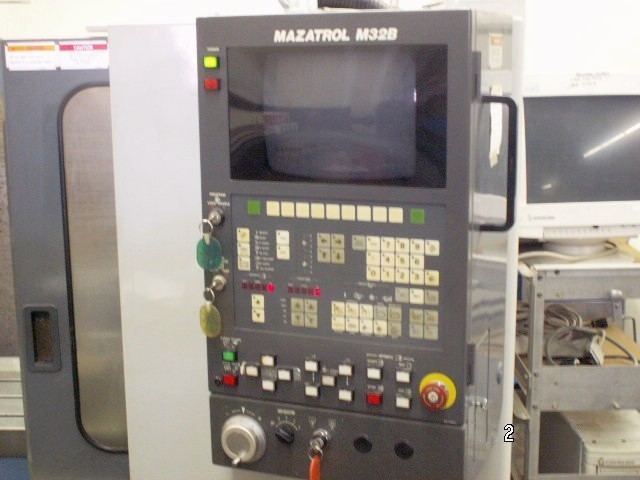

MAZATROL M32B CNC CONTROL,
RS-232C PORT INTERFACE,
RIGID TAPPING (SYNCHRONOUS TAPPING / SOLID TAPPING),
STANDARD COOLANT SYSTEM WITH TANK AND PUMP,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS,
**RIGID TRAVELING COLUMN DESIGN.
***ENCLOSED TOOL MAGAZINE TRAVELS W/SADDLE FOR FAST TOOL CHANGES WHILE BEING PROTECTED FROM CHIPS & COOLANT.
