CNC VERTICAL MACHINING CENTERS: FADAL VMC-15 CNC MILL, 20 x 16 x 20, 7500 RPM, '96 (4569)

FADAL VMC-15 CNC MILL, 20 x 16 x 20, 7500 RPM, '96 (4569)

Stock Number: 4569

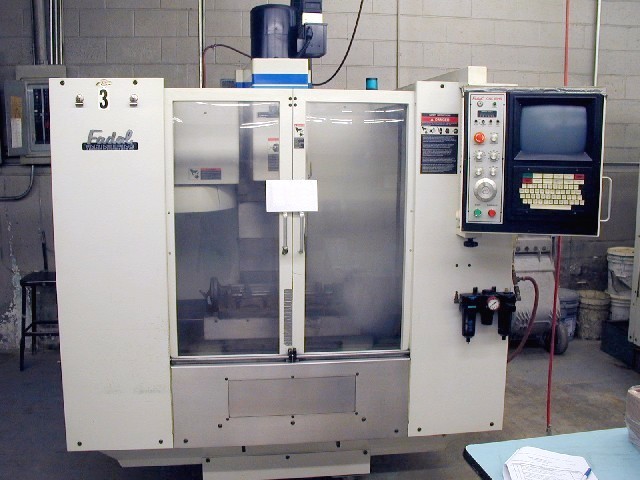

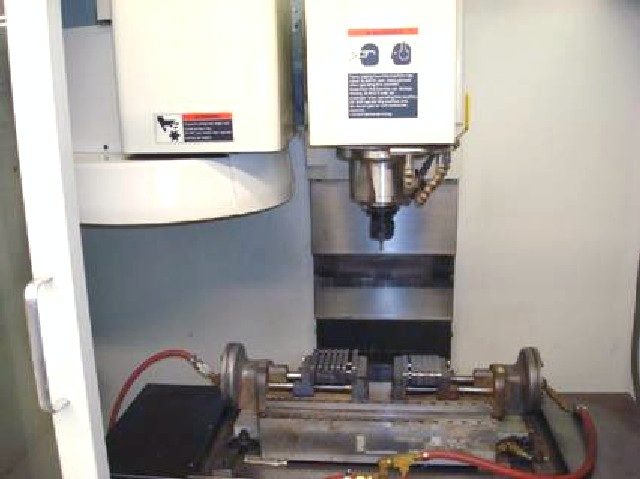

CNC VERTICAL MACHINING CENTERS: FADAL VMC-15 CNC MILL, 20 x 16 x 20, 7500 RPM, '96 (4569), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: FADAL VMC-15 CNC MILL, 20 x 16 x 20, 7500 RPM, '96 (4569), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4569 CNC VERTICAL MACHINING CENTERS: FADAL VMC-15 CNC MILL, 20 x 16 x 20, 7500 RPM, '96 (4569)Request a quote on stock# 4569
SpecificationDescription
MANUFACTURED NEW1996
TABLE SIZE29.5" x 16"
MAXIMUM TABLE LOAD1,000 LBS
SPINDLE NOSE TO TABLE TOP4" - 24"
X AXIS TRAVEL20"
Y AXIS TRAVEL16"
Z AXIS TRAVEL20"
RAPID TRAVERSE RATE X & Y AXES400 IPM
CUTTING FEED RATE0.1 - 200 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS0 - 7,500 RPM
SPINDLE MOTOR15 HP
TOOL CHANGER CAPACITY21 STATION ATC
MAXIMUM TOOL WEIGHT15 LBS
MACHINE WEIGHT, APPROX.5,800 LBS
DIMENSIONS, APPROX.90" x 77" x 104"

Equipped With:
FADAL CNC-88 CNC CONTROL WITH 9" CRT,
RS-232C PORT INTERFACE FOR DNC OPERATION,
RIGID TAPPING (SYNCHRONOUS TAPPING / SOLID TAPPING),
STANDARD COOLANT SYSTEM WITH TANK,
FULLY ENCLOSED SPLASH GUARDING,
ALL AVAILABLE MANUALS
***Lightly used as secondary operation machine within a screw machine job shop.
