CNC VERTICAL MACHINING CENTERS: DOOSAN DAEWOO DMV-4020 CNC MILL, FANUC 21i-MB, 40 x 20 x 25, 1200 IPM RAPIDS, 8000 RPM, '06 (4565)

DOOSAN DAEWOO DMV-4020 CNC MILL, FANUC 21i-MB, 40 x 20 x 25, 1200 IPM RAPIDS, 8000 RPM, '06 (4565)

Stock Number: 4565

CNC VERTICAL MACHINING CENTERS: DOOSAN DAEWOO DMV-4020 CNC MILL, FANUC 21i-MB, 40 x 20 x 25, 1200 IPM RAPIDS, 8000 RPM, '06 (4565), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: DOOSAN DAEWOO DMV-4020 CNC MILL, FANUC 21i-MB, 40 x 20 x 25, 1200 IPM RAPIDS, 8000 RPM, '06 (4565), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: DOOSAN DAEWOO DMV-4020 CNC MILL, FANUC 21i-MB, 40 x 20 x 25, 1200 IPM RAPIDS, 8000 RPM, '06 (4565), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4565 CNC VERTICAL MACHINING CENTERS: DOOSAN DAEWOO DMV-4020 CNC MILL, FANUC 21i-MB, 40 x 20 x 25, 1200 IPM RAPIDS, 8000 RPM, '06 (4565)Request a quote on stock# 4565
SpecificationDescription
MANUFACTURED NEW2006
TABLE SIZE47" x 20"
MAXIMUM TABLE LOAD1,760 LBS
X AXIS TRAVEL40.1"
Y AXIS TRAVEL20.1"
Z AXIS TRAVEL24.6"
SPINDLE NOSE TO TABLE TOP6" - 31"
RAPID TRAVERSE RATE X & Y AXES1181 IPM
RAPID TRAVERSE RATE Z AXIS945 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS50 - 8,000 RPM
SPINDLE MOTOR20 HP
TOOL CHANGER CAPACITY24 STATION DURM TYPE
MACHINE DIMENSIONS129" X 107" X 116" H
POWER REQUIREMENTS35 KVA 205-235v / 3 PHASE
MACHINE WEIGHT15,800 LBS

Equipped With:

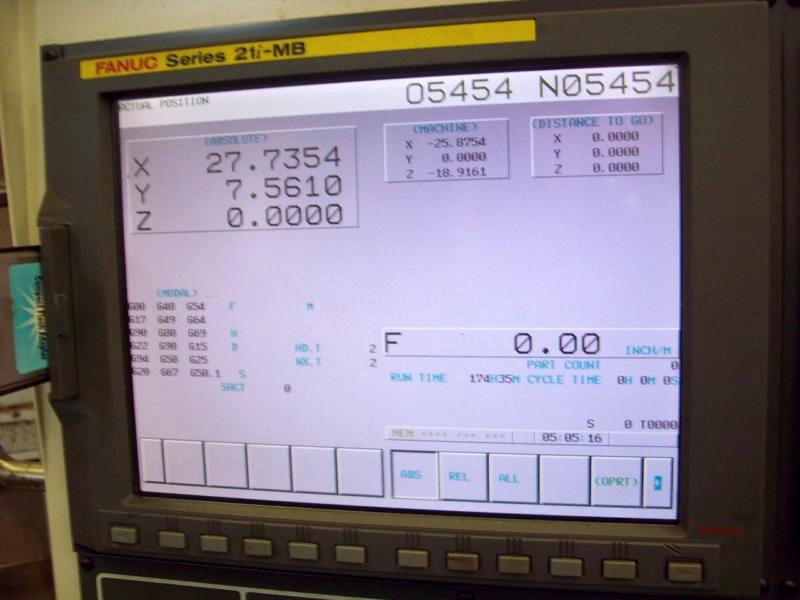

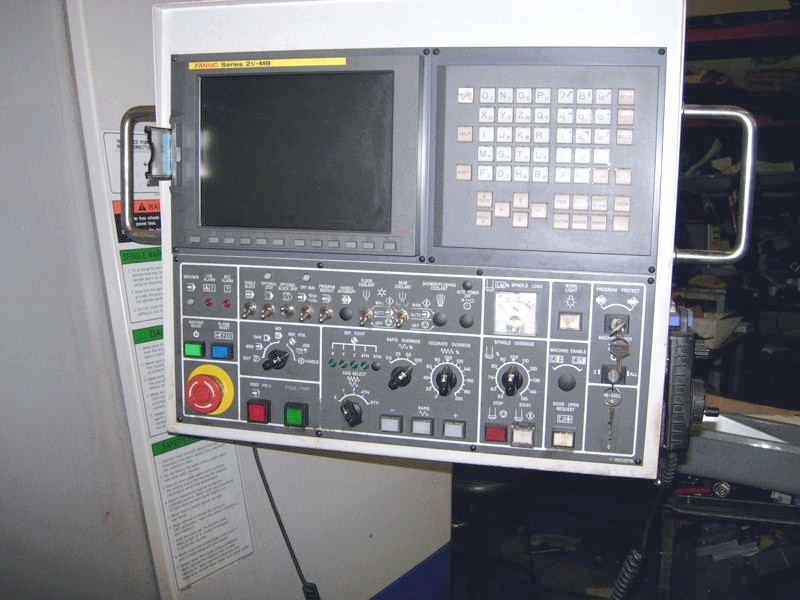

FANUC 21i-MB CNC COLOR CONTROL,
RS-232C PORT INTERFACE FOR DNC OPERATION,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
PRE-WIRED 4TH AXES, DRUM TYPE 24 ATC,
HAND-HELD REMOTE PULSE GENERATOR,
CUSTOM MACRO B (USER DEFINABLE),
STANDARD COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
***RIGID BOX WAY CONSTRUCTION***
