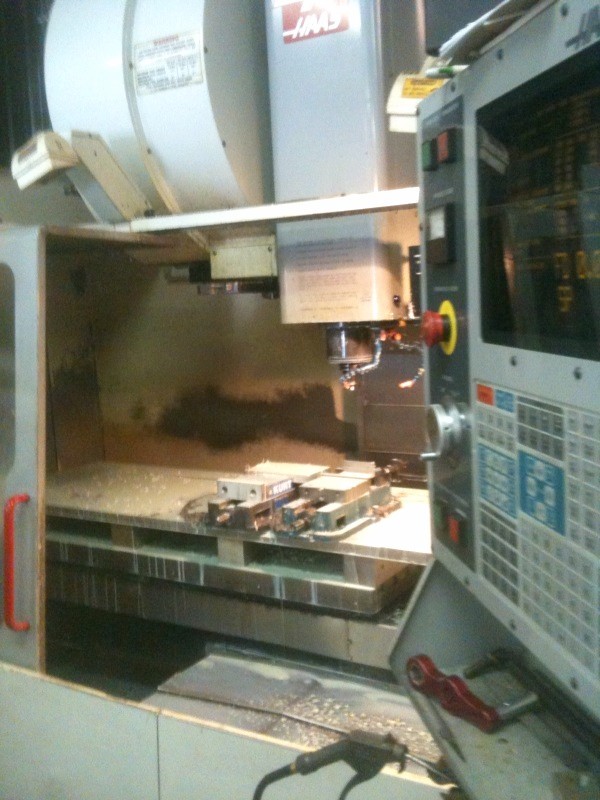

HAAS VF-5 4-Axis CNC MILL, 50 x 26 x 25, 10000 RPM, GEARBOX, HRT-210 ROTARY 4TH AXIS, SIDE-MOUNT ATC, 2001 (4564)
Stock Number: 4564
Click to view larger photo
Request a quote on stock# 4564
| Specification | Description |
|---|
| MANUFACTURED NEW | 2001 |
| TABLE SIZE | 52" x 23" |
| MAXIMUM TABLE LOAD | 4,000 LBS |
| SPINDLE NOSE TO TABLE TOP | 7" - 32" |
| X AXIS TRAVEL | 50" |
| Y AXIS TRAVEL | 26" |
| Z AXIS TRAVEL | 25" |
| RAPID TRAVERSE RATE X, Y & Z AXES | 710 IPM |
| CUTTING FEED RATE | 0.1 - 500 IPM |
| SPINDLE TAPER | CAT 40 |
| SPINDLE SPEEDS (2 SPEED GEARBOX) | 0 - 10,000 RPM |
| SPINDLE MOTOR | 30 HP (HIGH TORQUE) |
| TOOL CHANGER CAPACITY (SIDE-MOUNT) | 40 + 1 ATC |
| WEIGHT, APPROX. | 18,500 LBS |
| DIMENSIONS, APPROX. | 140" x 114" x 119" |
Equipped With:

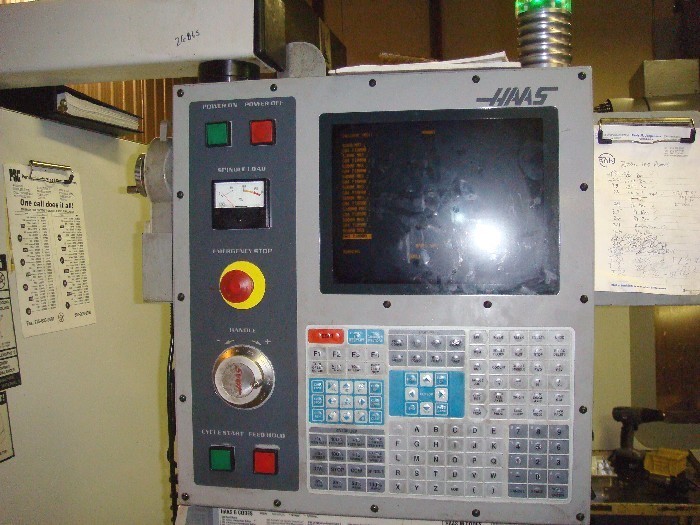

HAAS CNC CONTROL WITH 12" CRT,
RS-232C PORT INTERFACE FOR DNC OPERATION,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
HAAS HRT-210 ROTARY TABLE (4TH AXIS),

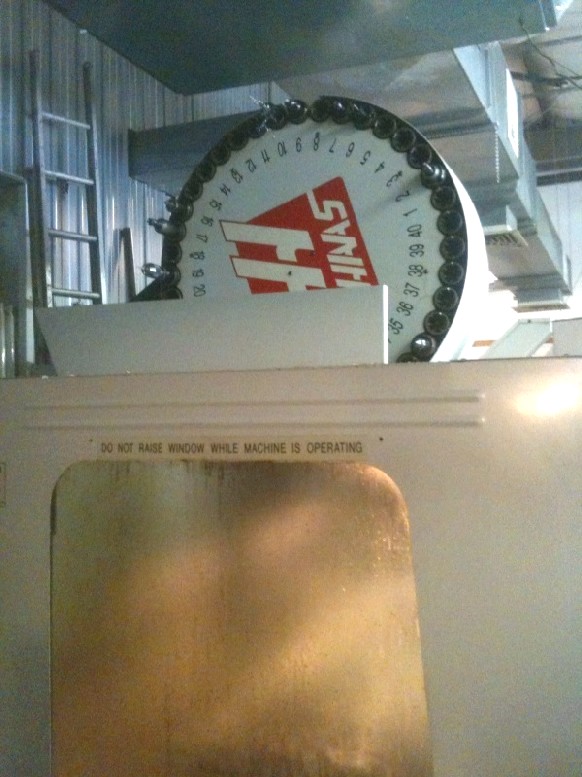

OPTIONAL 40 STATION SIDE-MOUNT AUTOMATIC TOOL CHANGER,
CHIP AUGER, FLOPPY DRIVE, COORDINATE ROTATION & SCALING,
HAAS PROGRAMMABLE COOLANT, WIRED FOR 4TH AXIS,
HIGH INTENSITY LIGHTING, REMOTE PULSE GENERATOR DIAL,
STANDARD COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
