CNC VERTICAL MACHINING CENTERS: MILLTRONICS PARTNER III CNC MILL, CENTURION 4, 3-AXIS,13 x 42 TBL, 32x16x17 TRVLS, 3 HP, 1991 (4561)

MILLTRONICS PARTNER III CNC MILL, CENTURION 4, 3-AXIS,13 x 42 TBL, 32x16x17 TRVLS, 3 HP, 1991 (4561)

Stock Number: 4561

CNC VERTICAL MACHINING CENTERS: MILLTRONICS PARTNER III CNC MILL, CENTURION 4, 3-AXIS,13 x 42 TBL, 32x16x17 TRVLS, 3 HP, 1991 (4561), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MILLTRONICS PARTNER III CNC MILL, CENTURION 4, 3-AXIS,13 x 42 TBL, 32x16x17 TRVLS, 3 HP, 1991 (4561), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MILLTRONICS PARTNER III CNC MILL, CENTURION 4, 3-AXIS,13 x 42 TBL, 32x16x17 TRVLS, 3 HP, 1991 (4561), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MILLTRONICS PARTNER III CNC MILL, CENTURION 4, 3-AXIS,13 x 42 TBL, 32x16x17 TRVLS, 3 HP, 1991 (4561), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MILLTRONICS PARTNER III CNC MILL, CENTURION 4, 3-AXIS,13 x 42 TBL, 32x16x17 TRVLS, 3 HP, 1991 (4561), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4561 CNC VERTICAL MACHINING CENTERS: MILLTRONICS PARTNER III CNC MILL, CENTURION 4, 3-AXIS,13 x 42 TBL, 32x16x17 TRVLS, 3 HP, 1991 (4561)Request a quote on stock# 4561
SpecificationDescription
MANUFACTURED NEW1991
TABLE SIZE13" x 42"
TABLE, MAX. LOAD CAPACITY850 LBS
X-AXIS TRAVEL32"
Y-AXIS TRAVEL16"
QUILL TRAVEL5"
KNEE TRAVEL, VERTICAL12"
THROAT, SPINDLE TO COLUMN14"
SPINDLE SPEED RANGE, VARIABLE60 - 4,200 RPM
SPINDLE MOTOR3 HP
SPINDLE TAPERERICKSON #30 - QUICK CHANGE
FEEDRATE RANGE0.1 - 200 IPM
ELECTRICAL REQUIREMENTS208/240/480 v 3-PHASE, 60Hz
DIMENSIONS, APPROX.70"L x 70"W x 89"H
WEIGHT, APPROX.4,600 LBS

Equipped With:

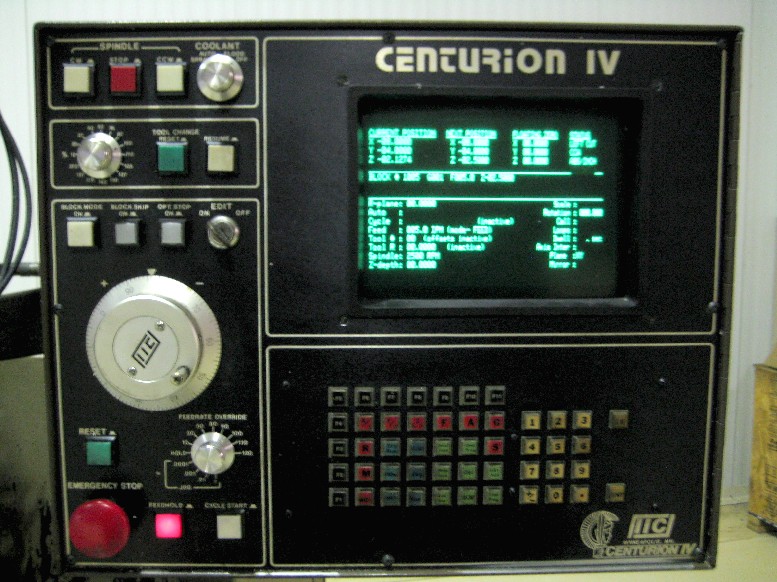

CENTURION IV, 3-AXIS CNC CTRL,
RS-232 PORT FOR DNC OPERATION,
ELECTRONIC HANDWHEEL,
PNEUMATIC POWERED PULL STUD DRAWBAR TOOL CHANGER,
COOLANT PUMP AND BASE TRAY,
BOX WAYS FOR RIGIDITY (HARDENED GROUND/ TURCITE),
POWER FEED QUILL, MANUAL OILER, WAY COVERS,
WORK LAMP
***KEEP IN MIND THAT THIS MILL CAN BE OPERATED MANUALLY IN ALL AXES WITH ELECTRONIC HAND WHEEL.
