CNC VERTICAL MACHINING CENTERS: HAAS VF-0E CNC MILL, 30 x 16 x 20, 7500 RPM, RIGID TAP, PCOOL, '98 (4560)

HAAS VF-0E CNC MILL, 30 x 16 x 20, 7500 RPM, RIGID TAP, PCOOL, '98 (4560)

Stock Number: 4560

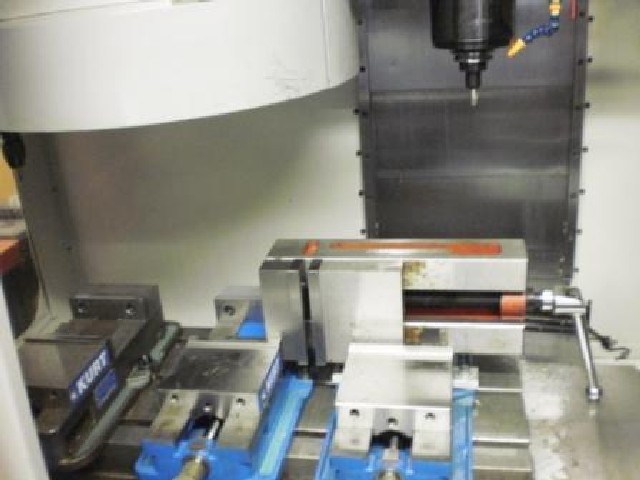

CNC VERTICAL MACHINING CENTERS: HAAS VF-0E CNC MILL, 30 x 16 x 20, 7500 RPM, RIGID TAP, PCOOL, '98 (4560), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HAAS VF-0E CNC MILL, 30 x 16 x 20, 7500 RPM, RIGID TAP, PCOOL, '98 (4560), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4560 CNC VERTICAL MACHINING CENTERS: HAAS VF-0E CNC MILL, 30 x 16 x 20, 7500 RPM, RIGID TAP, PCOOL, '98 (4560)Request a quote on stock# 4560
SpecificationDescription
DATE OF MANUFACTURE1998
TABLE SIZE36" x 14"
MAXIMUM TABLE LOAD3,000 LBS
SPINDLE NOSE TO TABLE TOP4" - 29"
X AXIS TRAVEL30"
Y AXIS TRAVEL16"
Z AXIS TRAVEL20"
RAPID TRAVERSE RATE X, Y & Z AXES710 IPM
CUTTING FEED RATE0.1 - 300 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS0 - 7,500 RPM
SPINDLE MOTOR15 HP
TOOL CHANGER CAPACITY20 STATIONS
MAXIMUM TOOL WEIGHT12 LBS
MACHINE WEIGHT8,500 LBS
APPROXIMATE DIMENSIONS110" x 93" x 105"

Equipped With:
HAAS CNC CONTROL WITH 12" CRT & RS-232C PORT INTERFACE
RIGID TAPPING (SYNCHRONOUS TAPPING / SOLID TAPPING)
CHIP AUGER, FLOPPY DRIVE, QUIKCODE PROGRAMMING
PRE-WIRED FOR 4TH AXIS, 1 MEG MEMORY
PROGRAMMABLE COOLANT NOZZLE
STANDARD COOLANT SYSTEM WITH TANK & PUMP
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
