CNC VERTICAL MACHINING CENTERS: HAAS VF-3 CNC MILL, 40 x 20 x 25, 20 HP w/GEARBOX, 7500 RPM, '97 (4556)

HAAS VF-3 CNC MILL, 40 x 20 x 25, 20 HP w/GEARBOX, 7500 RPM, '97 (4556)

Stock Number: 4556

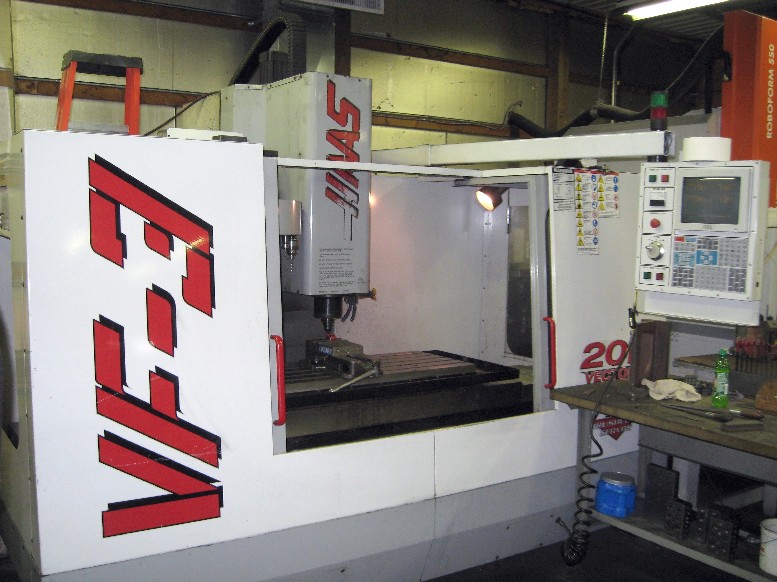

CNC VERTICAL MACHINING CENTERS: HAAS VF-3 CNC MILL, 40 x 20 x 25, 20 HP w/GEARBOX, 7500 RPM, '97 (4556), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HAAS VF-3 CNC MILL, 40 x 20 x 25, 20 HP w/GEARBOX, 7500 RPM, '97 (4556), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4556 CNC VERTICAL MACHINING CENTERS: HAAS VF-3 CNC MILL, 40 x 20 x 25, 20 HP w/GEARBOX, 7500 RPM, '97 (4556)Request a quote on stock# 4556
SpecificationDescription
INSTALLED NEW1998
DATE OF MANUFACTURE12/1997
TABLE SIZE48" x 18"
MAXIMUM TABLE LOAD3,000 LBS
SPINDLE NOSE TO PALLET TOP4" - 29"
X AXIS TRAVEL40"
Y AXIS TRAVEL20"
Z AXIS TRAVEL25"
RAPID TRAVERSE RATE X, Y & Z AXES710 IPM
CUTTING FEED RATE0.1 - 500 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS (2 SPEED GEARED)0 - 7,500 RPM
SPINDLE MOTOR20 HP
TOOL CHANGER CAPACITY20 ATC
MAXIMUM TOOL WEIGHT12 LBS
MACHINE WEIGHT13,500 LBS
APPROXIMATE DIMENSIONS129" x 110" x 119.5"

Equipped With:
HAAS CNC CONTROL WITH 12" CRT,
RS-232C PORT INTERFACE FOR DNC OPERATION,
HT SPINDLE GEARBOX,
STANDARD COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
