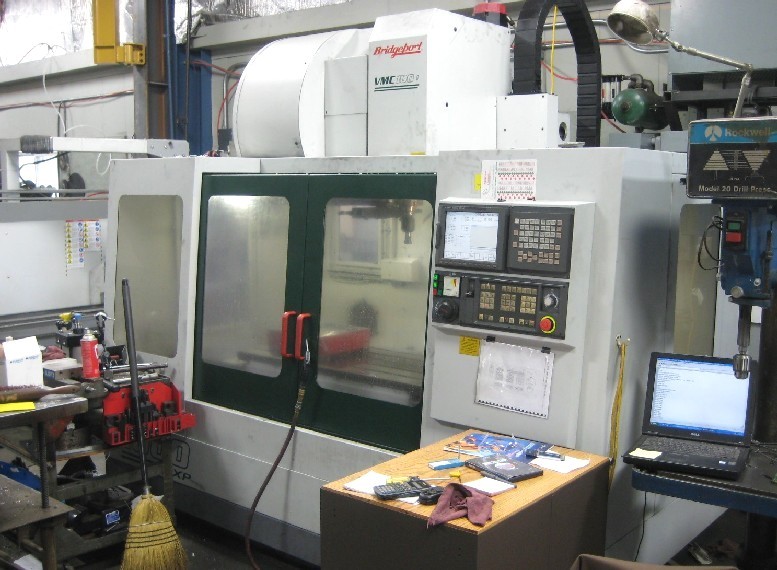

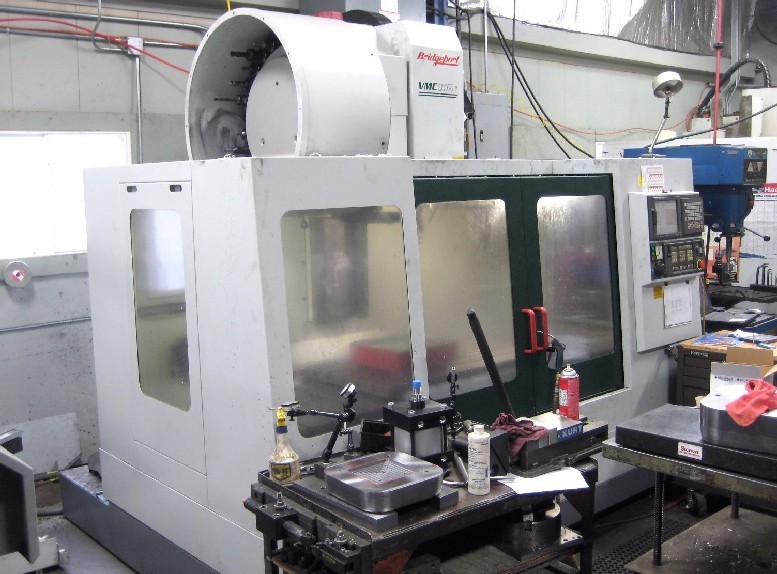

CNC VERTICAL MACHINING CENTERS: BRIDGEPORT VMC-1000-30 XP CNC MILL, 40 x 20 TRVLS, 10,000 RPM, FANUC 18i-M, RIGID TAP, '00 (4552)

BRIDGEPORT VMC-1000-30 XP CNC MILL, 40 x 20 TRVLS, 10,000 RPM, FANUC 18i-M, RIGID TAP, '00 (4552)

Stock Number: 4552

CNC VERTICAL MACHINING CENTERS: BRIDGEPORT VMC-1000-30 XP CNC MILL, 40 x 20 TRVLS, 10,000 RPM, FANUC 18i-M, RIGID TAP, '00 (4552), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: BRIDGEPORT VMC-1000-30 XP CNC MILL, 40 x 20 TRVLS, 10,000 RPM, FANUC 18i-M, RIGID TAP, '00 (4552), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: BRIDGEPORT VMC-1000-30 XP CNC MILL, 40 x 20 TRVLS, 10,000 RPM, FANUC 18i-M, RIGID TAP, '00 (4552), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: BRIDGEPORT VMC-1000-30 XP CNC MILL, 40 x 20 TRVLS, 10,000 RPM, FANUC 18i-M, RIGID TAP, '00 (4552), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: BRIDGEPORT VMC-1000-30 XP CNC MILL, 40 x 20 TRVLS, 10,000 RPM, FANUC 18i-M, RIGID TAP, '00 (4552), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: BRIDGEPORT VMC-1000-30 XP CNC MILL, 40 x 20 TRVLS, 10,000 RPM, FANUC 18i-M, RIGID TAP, '00 (4552), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: BRIDGEPORT VMC-1000-30 XP CNC MILL, 40 x 20 TRVLS, 10,000 RPM, FANUC 18i-M, RIGID TAP, '00 (4552), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: BRIDGEPORT VMC-1000-30 XP CNC MILL, 40 x 20 TRVLS, 10,000 RPM, FANUC 18i-M, RIGID TAP, '00 (4552), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4552 CNC VERTICAL MACHINING CENTERS: BRIDGEPORT VMC-1000-30 XP CNC MILL, 40 x 20 TRVLS, 10,000 RPM, FANUC 18i-M, RIGID TAP, '00 (4552)Request a quote on stock# 4552
SpecificationDescription
DATE OF MANUFACTURE2000

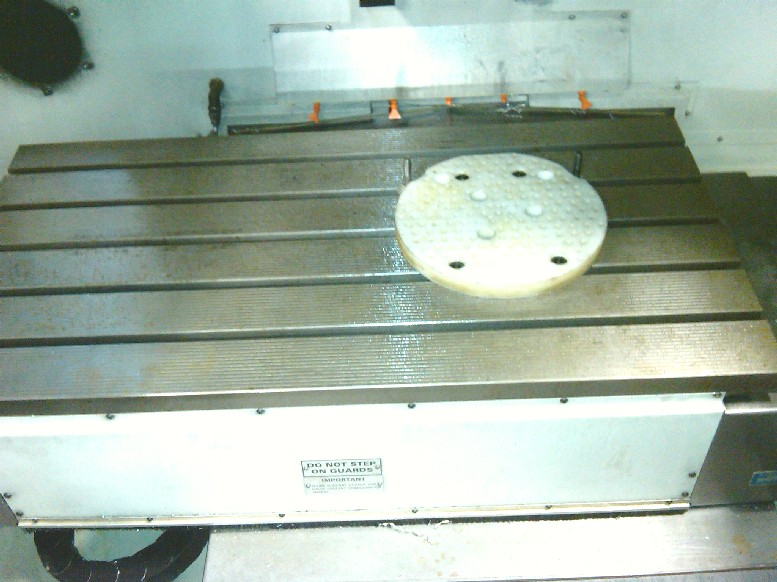

TABLE SIZE45.3" x 19.3"
MAXIMUM TABLE LOAD1980 LBS
X AXIS TRAVEL40.16"
Y AXIS TRAVEL20.08"
Z AXIS TRAVEL19.7"
RAPID TRAVERSE RATE X & Y AXES1575 IPM
RAPID TRAVERSE RATE Z AXES1181 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS40 - 10,000 RPM
SPINDLE MOTOR30 HP
TOOL CHANGER CAPACITY (SIDE MOUNT)30 STATIONS
MAXIMUM TOOL WEIGHT13.2 LBS
WEIGHT, APPROX.10,000 LBS
DIMENSIONS, APPROX.103" x 85" x 103"

Equipped With:

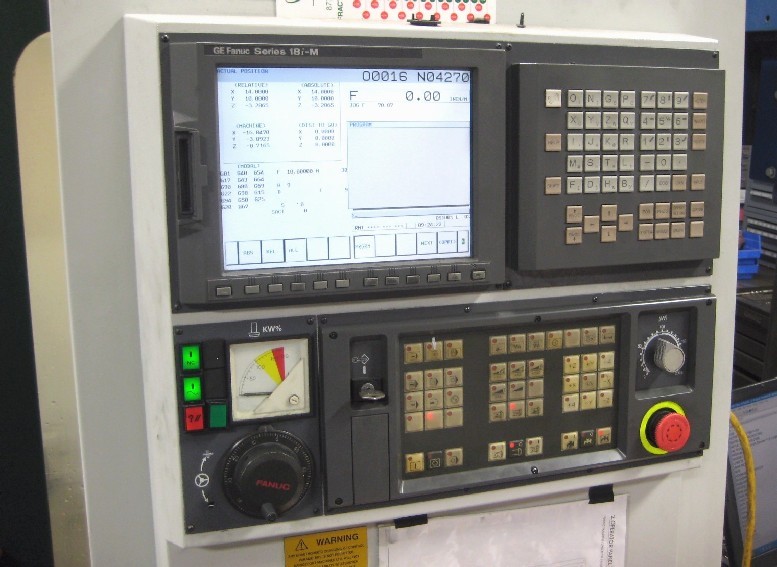

FANUC SERIES 18i-M CNC CONTROL,
RS-232C PORT INTERFACE FOR DNC OPERATION,

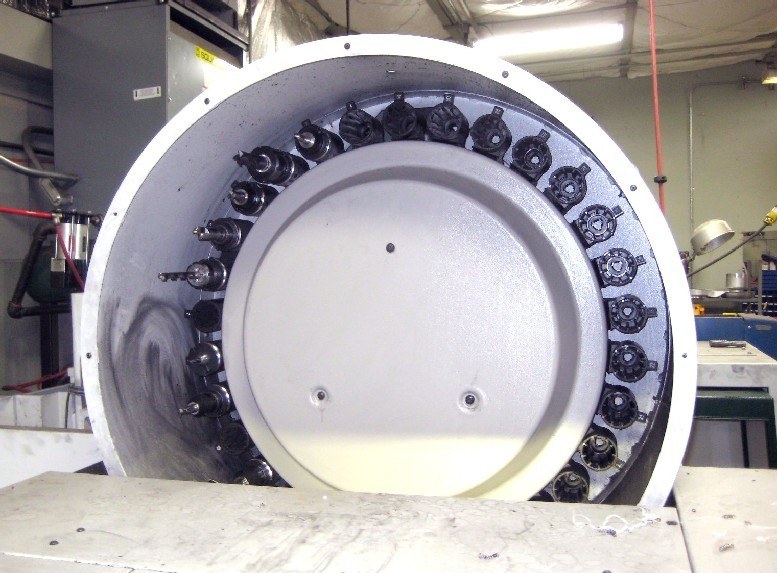

w/OPTIONAL 30 STATION SIDE MOUNT ATC,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
COOLANT SYSTEM WITH TANK & PUMP,
CHIP-WASH COOLANT ON WAY COVERS,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
***RIGID BOX WAY DESIGN***
