HAAS VF-3 CNC MILL, 2-SPEED GARBOX, 40 x 20 x 25, 20 HP, 7500 RPM, '98 (4551)
Stock Number: 4551

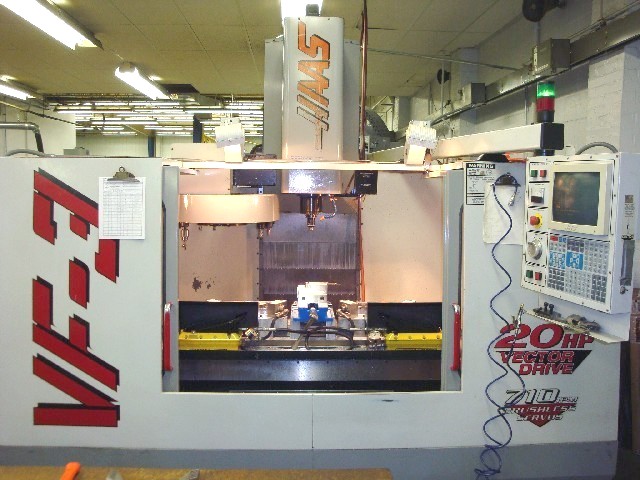

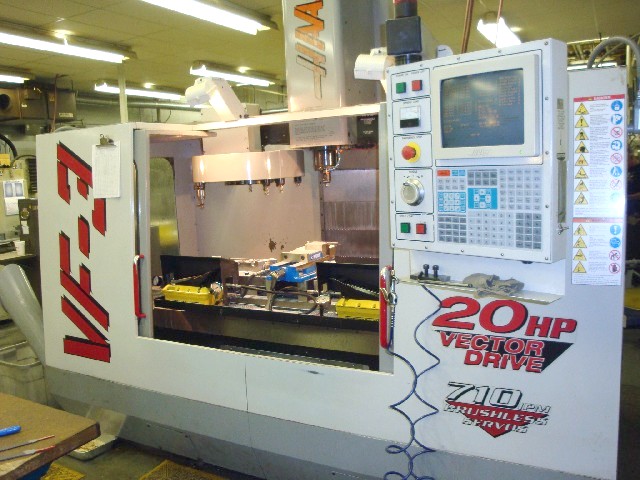

Click to view larger photo
Request a quote on stock# 4551
| Specification | Description |
|---|
| DATE OF MANUFACTURE | 1998 |
| TABLE SIZE | 48" x 18" |
| MAXIMUM TABLE LOAD | 3,000 LBS |
| SPINDLE NOSE TO PALLET TOP | 4" - 29" |
| X AXIS TRAVEL | 40" |
| Y AXIS TRAVEL | 20" |
| Z AXIS TRAVEL | 25" |
| RAPID TRAVERSE RATE X, Y & Z AXES | 710 IPM |
| CUTTING FEED RATE | 0.1 - 500 IPM |
| SPINDLE TAPER | CAT 40 |
| SPINDLE SPEEDS (2 SPEED GEARED) | 0 - 7,500 RPM |
| SPINDLE MOTOR | 20 HP |
| TOOL CHANGER CAPACITY | 20 ATC |
| MAXIMUM TOOL WEIGHT | 12 LBS |
| MACHINE WEIGHT | 13,500 LBS |
| APPROXIMATE DIMENSIONS | 129" x 110" x 119.5" |
Equipped With:

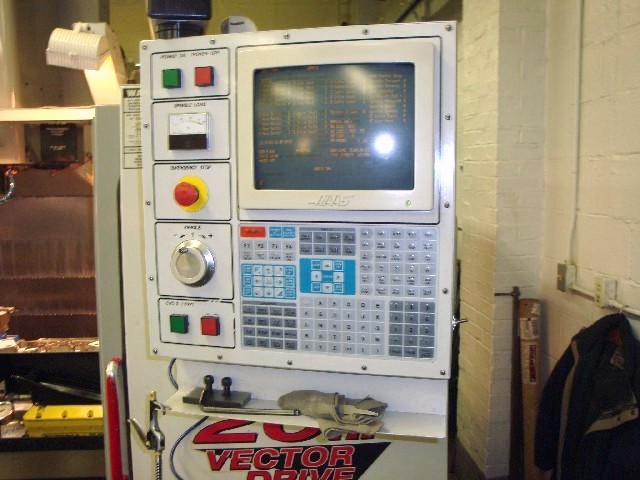

HAAS 32-BIT CNC CONTROL WITH 12" CRT,
RS-232C PORT INTERFACE FOR DNC OPERATION,
RIGID TAPPING (SYNCHRONOUS TAPPING / SOLID TAPPING),
PRE-WIRED FOR 4TH AXIS (NO ROTARY TABLE INCLUDED),
PROGRAMMABLE COOLANT, FLOPPY DRIVE, 1 MB MEMORY,
QUICK CODE, CHIP AUGER, HT SPINDLE GEARBOX,
USER DEFINABLE MACROS, HIGH INTENSITY LIGHTING,
STANDARD COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
