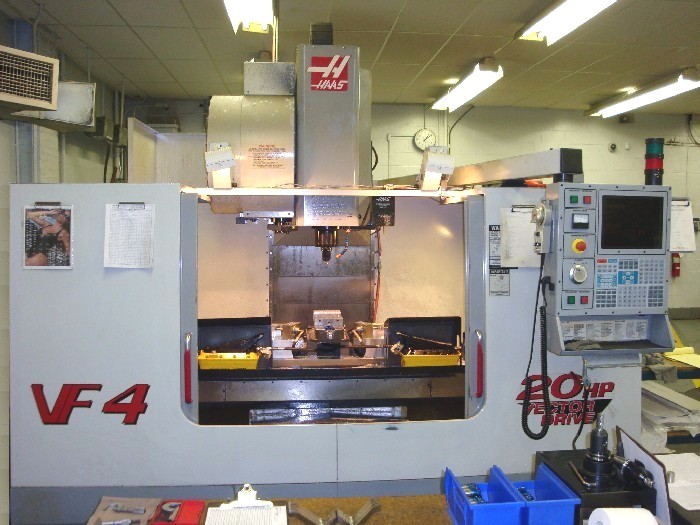

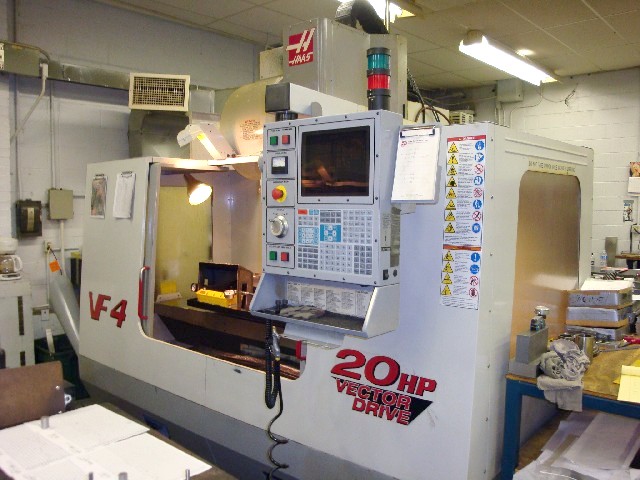

HAAS VF-4 CNC MILL, 50 x 20 x 25, 24 SIDE MOUNT ATC, GREARBOX SPINDLE, 1 MB MEM, REMOTE JOG (4550)
Stock Number: 4550
Click to view larger photo
Request a quote on stock# 4550
| Specification | Description |
|---|
| DATE OF MANUFACTURE | 12/2000 |
| TABLE SIZE | 52" x 18" |
| MAXIMUM TABLE LOAD | 3,500 LBS |
| SPINDLE NOSE TO TABLE TOP | 4" - 29" |
| X AXIS TRAVEL | 50" |
| Y AXIS TRAVEL | 20" |
| Z AXIS TRAVEL | 25" |
| RAPID TRAVERSE RATE X, Y & Z AXES | 710 IPM |
| CUTTING FEED RATE | 0.1 - 500 IPM |
| SPINDLE TAPER | CAT 40 |
| SPINDLE SPEEDS (2 SPEED GEARED) | 0 - 7,500 RPM |
| SPINDLE MOTOR (GEARBOX) | 20 HP |
| TOOL CHANGER CAPACITY (SIDE MOUNT) | 24+1 STATIONS |
| MAXIMUM TOOL WEIGHT | 12 LBS |
| WEIGHT, APPROX. | 14,700 LBS |
| DIMENSIONS, APPROX. | 125" x 110" x 118" |
Equipped With:

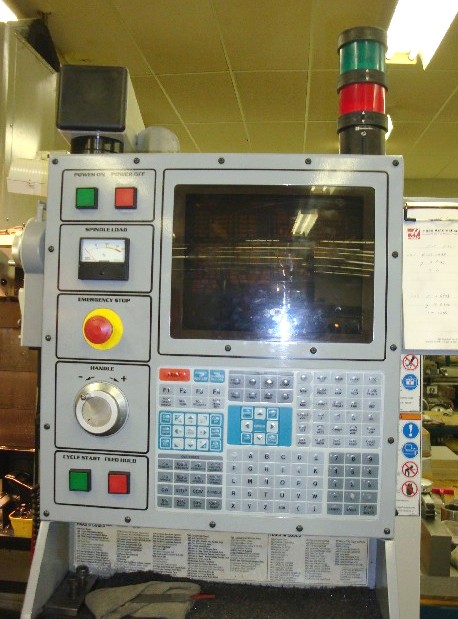

HAAS CNC CONTROL WITH 12" MONITOR,
RS-232C PORT INTERFACE FOR DNC,
HT SPINDLE GEARBOX,
RIGID TAPPING, 1 MB MEMORY UPGRADE,
COORDINATE ROTATION & SCALING, PROGRAMMABLE COOLANT,
CHIP AUGER, QUIKCODE PROGRAMMING OPTION,
REMOTE JOG HANDLE, 3.5" FLOPPY DISC,
USER DEFINABLE MACROS,4TH AXIS PREWIRE,
HIGH INTENSITY LIGHTING, 2ND HOME BUTTON,
COOLANT SYSTEM WITH TANK AND PUMP,
FULLY ENCLOSED SPLASH GUARDING, ALL AVAILABLE MANUALS
