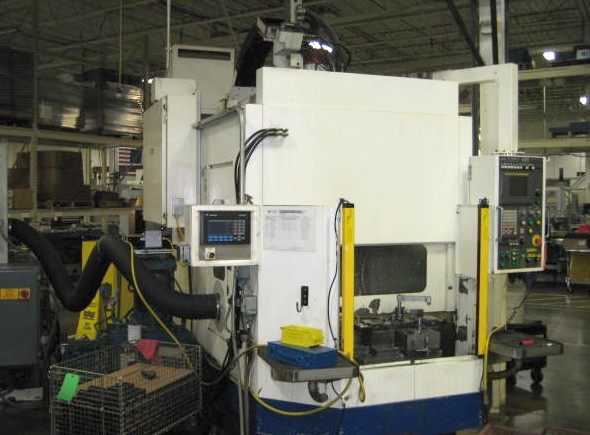

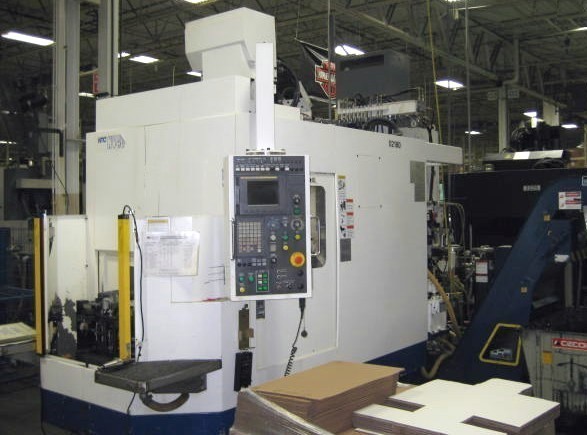

NTC NV4G + 2APC CNC MILL, FANUC 21iM, 20 x 18 x 18, 10000 RPM, PALLET CHANGER, THRU-SPINDLE COOLANT, 40 TAPER, NEW 2000
Stock Number: 4549
Click to view larger photo
Request a quote on stock# 4549
| Specification | Description |
|---|
| MANUFACTURED / INSTALLED NEW | 1999 / 2000 |
| PALLET SIZE, TWO | 20" x 18" (2) |
| X AXIS TRAVEL | 19.6" |
| Y AXIS TRAVEL | 18" |
| Z AXIS TRAVEL | 18" |
| RAPID TRAVERSE RATE X, Y AXES | 1575 IPM |
| SPINDLE TAPER | 40 |
| SPINDLE SPEEDS | 0 - 10,000 RPM |
| TOOL CHANGER CAPACITY | 25 STATION ATC |
| TOOL CHANGE TIME | 1/2 SEC. |
| PALLET CHANGE TIME | 8.4 SEC. |
| MACHINE WEIGHT | 17,000 lbs |
| APPROXIMATE DIMENSIONS | 145" x 59" x 118" |
Equipped With:
FANUC 21iM CNC CONTROL,
1000 PSI HIGH PRESSURE "CHIP BLASTER" COOLANT THRU-SPINDLE,
MIST COLLECTOR ("CHIP BLASTER"),
CHIP CONVEYOR, LIGHT CURTAINS,
STANDARD COOLANT SYSTEM WITH TANK & PUMP
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
**AUTO TWIN PALLET CHANGER (SPIN TYPE)**
***PRECISION JAPANESE MADE MACHINE TOOL***
