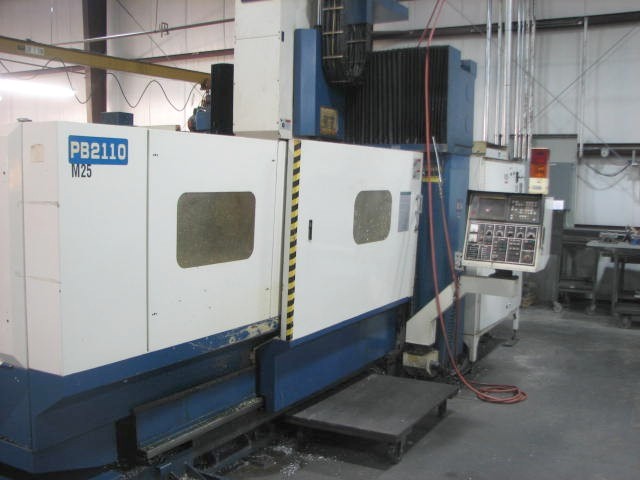

CNC VERTICAL MACHINING CENTERS: AWEA PB 2110 CNC BRIDGE/GANTRY TYPE MILL, 48 ATC, FANUC OM, 83 x 43 x 30, 50 TAPER, '94 (4546)

AWEA PB 2110 CNC BRIDGE/GANTRY TYPE MILL, 48 ATC, FANUC OM, 83 x 43 x 30, 50 TAPER, '94 (4546)

Stock Number: 4546

CNC VERTICAL MACHINING CENTERS: AWEA PB 2110 CNC BRIDGE/GANTRY TYPE MILL, 48 ATC, FANUC OM, 83 x 43 x 30, 50 TAPER, '94 (4546), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: AWEA PB 2110 CNC BRIDGE/GANTRY TYPE MILL, 48 ATC, FANUC OM, 83 x 43 x 30, 50 TAPER, '94 (4546), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: AWEA PB 2110 CNC BRIDGE/GANTRY TYPE MILL, 48 ATC, FANUC OM, 83 x 43 x 30, 50 TAPER, '94 (4546), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: AWEA PB 2110 CNC BRIDGE/GANTRY TYPE MILL, 48 ATC, FANUC OM, 83 x 43 x 30, 50 TAPER, '94 (4546), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4546 CNC VERTICAL MACHINING CENTERS: AWEA PB 2110 CNC BRIDGE/GANTRY TYPE MILL, 48 ATC, FANUC OM, 83 x 43 x 30, 50 TAPER, '94 (4546)Request a quote on stock# 4546
SpecificationDescription
MANUFACTURED NEW1994

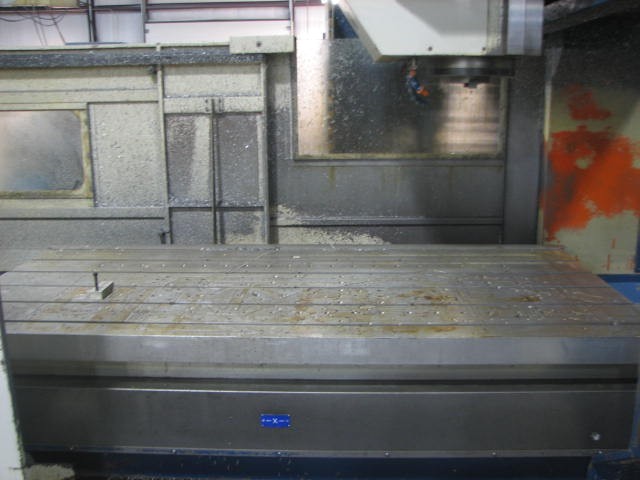

TABLE SIZE90.9" x 43.3"
MAXIMUM TABLE LOAD8800 LBS
X AXIS TRAVEL83.1"
Y AXIS TRAVEL43.3"
Z AXIS TRAVEL30"
DISTANCE BETWEEN THE COLUMNS55.1"
SPINDLE SPEEDS10 - 6000 RPM
SPINDLE NOSE TO TABLE TOP7.8" - 27.5"
RAPID TRAVERSE RATE472 IPM
CUTTING FEED RATE0.1 - 197 IPM
SPINDLE TAPERBT 50
SPINDLE MOTOR35 HP
TOOL CHANGER CAPACITY48 STATION ATC
MAXIMUM TOOL WEIGHT44 LBS
MACHINE WEIGHT36,000 LBS

Equipped With:

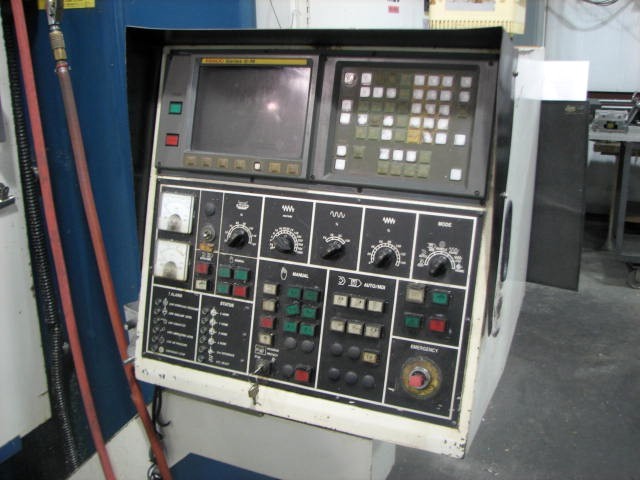

FANUC OM CNC CONTROL WITH 9" CRT,
RS-232C PORT INTERFACE FOR DNC OPERATION,
LIFT UP CHIP CONVEYOR, RIGID TAPPING,
REMOTE HANDWHEEL, OPERATION FINISH LAMP,
STANDARD COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
