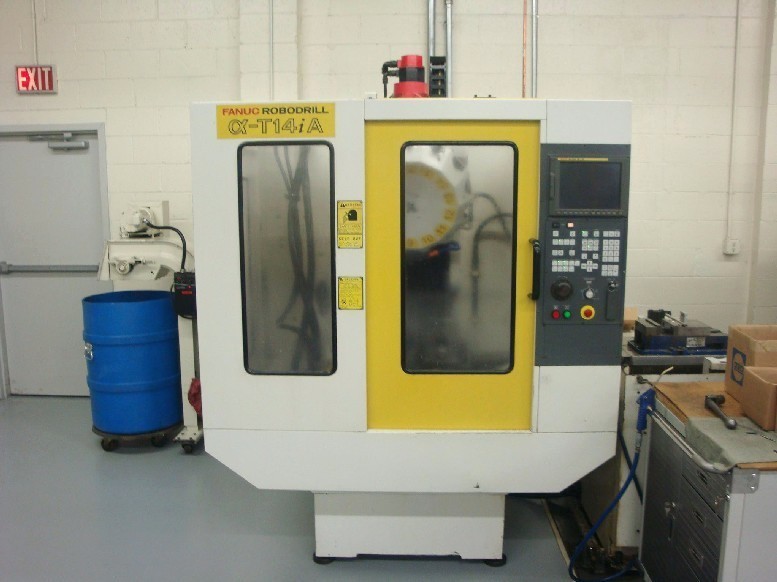

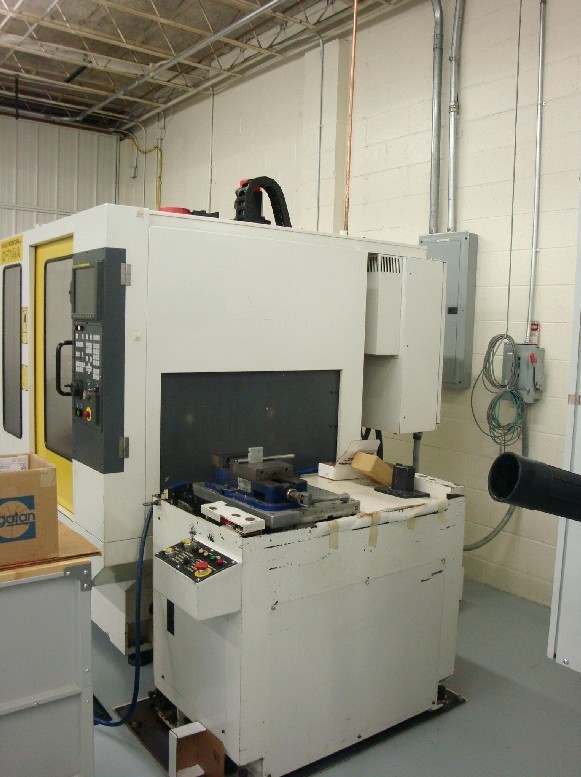

CNC VERTICAL MACHINING CENTERS: FANUC ROBODRILL alpha-T14iA APC CNC MILL, 20 x 15 x 12, DRILL & TAP, FANUC 16iM, 2-PALLET, 1998, (4544)

FANUC ROBODRILL alpha-T14iA APC CNC MILL, 20 x 15 x 12, DRILL & TAP, FANUC 16iM, 2-PALLET, 1998, (4544)

Stock Number: 4544

CNC VERTICAL MACHINING CENTERS: FANUC ROBODRILL alpha-T14iA APC CNC MILL, 20 x 15 x 12, DRILL & TAP, FANUC 16iM, 2-PALLET, 1998, (4544), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: FANUC ROBODRILL alpha-T14iA APC CNC MILL, 20 x 15 x 12, DRILL & TAP, FANUC 16iM, 2-PALLET, 1998, (4544), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: FANUC ROBODRILL alpha-T14iA APC CNC MILL, 20 x 15 x 12, DRILL & TAP, FANUC 16iM, 2-PALLET, 1998, (4544), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4544 CNC VERTICAL MACHINING CENTERS: FANUC ROBODRILL alpha-T14iA APC CNC MILL, 20 x 15 x 12, DRILL & TAP, FANUC 16iM, 2-PALLET, 1998, (4544)Request a quote on stock# 4544
SpecificationDescription
DATE OF MFG1998
TABLE SIZE25.59" x 14.96"
MAXIMUM TABLE LOAD440 LBS
SPINDLE NOSE TO TABLE TOP5.9" - 17.71"
X AXIS TRAVEL19.6"
Y AXIS TRAVEL14.96"
Z AXIS TRAVEL11.81"
RAPID TRAVERSE RATE X,Y & Z AXIS1889 IPM
CUTTING FEED RATE0.1 - 787 IPM
SPINDLE SPEEDS80 - 8000 RPM
SPINDLE MOTOR7.5
SPINDLE TAPERBT 30
TOOL CHANGER CAPACITY14 STATION ATC
WEIGHT, APPROX.6,000 LBS
DIMENSIONS, APPROX.132" x 62" x 88"

Equipped With:
FANUC 16iM CNC CONTROL WITH 9" CRT,
RS-232C PORT INTERFACE FOR DNC OPERATION,
RIGID TAPPING (SYNCHRONOUS TAPPING / SOLID TAPPING),
CHIP CONVEYOR,
FULL KEYPAD OPTION, ALL AVAILABLE MANUALS,
