CNC VERTICAL MACHINING CENTERS: FADAL VMC-3016 CNC MILL, 30 x 16 x 20, 10000 RPM, BOX WAY, 4TH AXIS, '01 (4540)

FADAL VMC-3016 CNC MILL, 30 x 16 x 20, 10000 RPM, BOX WAY, 4TH AXIS, '01 (4540)

Stock Number: 4540

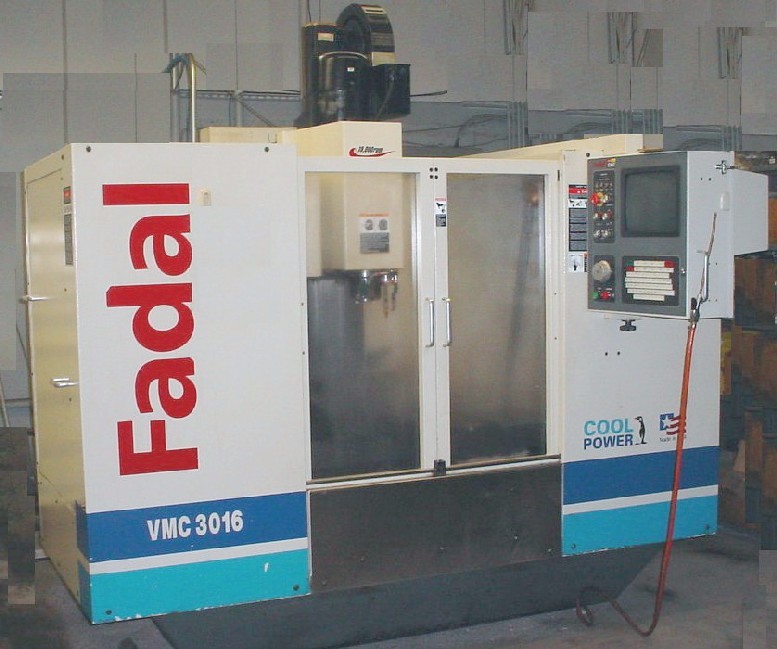

Click to view larger photo

Request A Quote On Our Stock Number: 4540 CNC VERTICAL MACHINING CENTERS: FADAL VMC-3016 CNC MILL, 30 x 16 x 20, 10000 RPM, BOX WAY, 4TH AXIS, '01 (4540)

Request A Quote On Our Stock Number: 4540 CNC VERTICAL MACHINING CENTERS: FADAL VMC-3016 CNC MILL, 30 x 16 x 20, 10000 RPM, BOX WAY, 4TH AXIS, '01 (4540)

Request a quote on stock# 4540

Specification	Description
DATE OF MFG	2001
TABLE SIZE	39" x 16"
MAXIMUM TABLE LOAD	2,736 LBS
SPINDLE NOSE TO TABLE TOP	4" - 32"
X AXIS TRAVEL	30"
Y AXIS TRAVEL	16"
Z AXIS TRAVEL	20"
GROUND BOXWAYS	X, Y, Z AXIS
RAPID TRAVERSE RATE X & Y AXIS	900 IPM
CUTTING FEED RATE	0.1 - 400 IPM
SPINDLE SPEEDS	10 - 10,000 RPM
SPINDLE MOTOR	15 HP
SPINDLE TAPER	BT 40
TOOL CHANGER CAPACITY	21 STATION ATC
MAXIMUM TOOL WEIGHT	15 LBS
MACHINE WEIGHT, APPROX.	7,000 LBS
APPROXIMATE DIMENSIONS, APPROX.	90" x 89" x 94"

Equipped With:

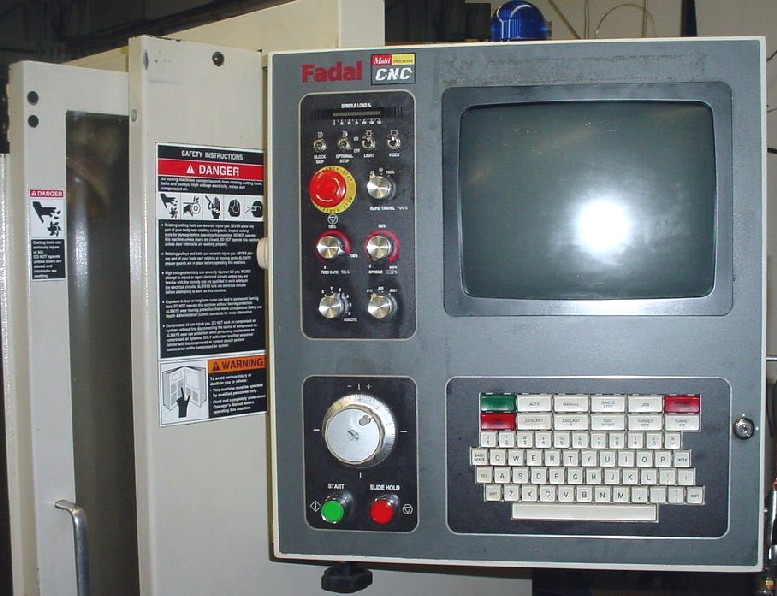

FADAL MULTI-PROCESSOR (EXTENDED 88) CNC CONTROL,
RS-232C PORT INTERFACE FOR DNC OPERATION,
HIGH-SPEED SPINDLE, RIGID TAP,
COOL POWER SYSTEM FOR SPINDLE, HEADSTOCK, BALLSCREWS,
PRE-WIRED FOR 4-AXIS W/DRIVE (NO ROTARY TABLE),
STANDARD COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED GUARDING,
***RIGID BOX WAY AXIS MOVEMENTS***
