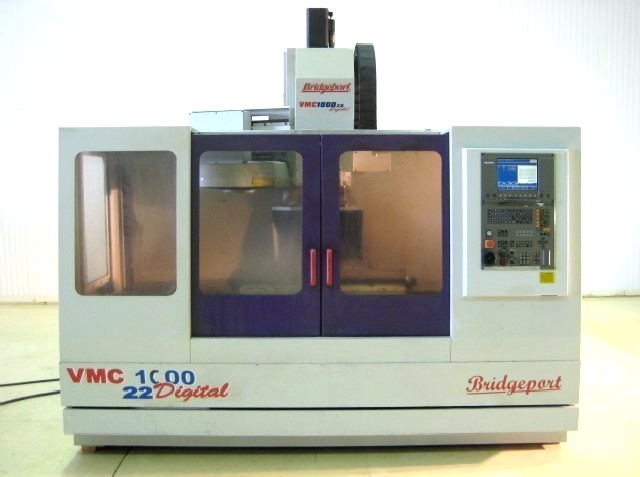

CNC VERTICAL MACHINING CENTERS: BRIDGEPORT VMC-1000-22H DIGITAL CNC MILL, 40 x 20 TRVLS, 35 HP, HEIDENHEIN TNC-426 CNC, RIGID TAP, '98 (4533)

BRIDGEPORT VMC-1000-22H DIGITAL CNC MILL, 40 x 20 TRVLS, 35 HP, HEIDENHEIN TNC-426 CNC, RIGID TAP, '98 (4533)

Stock Number: 4533

CNC VERTICAL MACHINING CENTERS: BRIDGEPORT VMC-1000-22H DIGITAL CNC MILL, 40 x 20 TRVLS, 35 HP, HEIDENHEIN TNC-426 CNC, RIGID TAP, '98 (4533), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: BRIDGEPORT VMC-1000-22H DIGITAL CNC MILL, 40 x 20 TRVLS, 35 HP, HEIDENHEIN TNC-426 CNC, RIGID TAP, '98 (4533), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: BRIDGEPORT VMC-1000-22H DIGITAL CNC MILL, 40 x 20 TRVLS, 35 HP, HEIDENHEIN TNC-426 CNC, RIGID TAP, '98 (4533), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: BRIDGEPORT VMC-1000-22H DIGITAL CNC MILL, 40 x 20 TRVLS, 35 HP, HEIDENHEIN TNC-426 CNC, RIGID TAP, '98 (4533), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: BRIDGEPORT VMC-1000-22H DIGITAL CNC MILL, 40 x 20 TRVLS, 35 HP, HEIDENHEIN TNC-426 CNC, RIGID TAP, '98 (4533), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: BRIDGEPORT VMC-1000-22H DIGITAL CNC MILL, 40 x 20 TRVLS, 35 HP, HEIDENHEIN TNC-426 CNC, RIGID TAP, '98 (4533), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4533 CNC VERTICAL MACHINING CENTERS: BRIDGEPORT VMC-1000-22H DIGITAL CNC MILL, 40 x 20 TRVLS, 35 HP, HEIDENHEIN TNC-426 CNC, RIGID TAP, '98 (4533)Request a quote on stock# 4533
SpecificationDescription
DATE OF MANUFACTURE1998
TABLE SIZE45.3" x 19.3"
MAXIMUM TABLE LOAD1980 LBS
X AXIS TRAVEL40.16"
Y AXIS TRAVEL20.08"
Z AXIS TRAVEL19.7"
RAPID TRAVERSE RATE X & Y AXES1575 IPM
RAPID TRAVERSE RATE Z AXES1181 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS40 - 6,000 RPM
SPINDLE MOTOR35 HP
TOOL CHANGER CAPACITY22 STATIONS
MAXIMUM TOOL WEIGHT13.2 LBS
WEIGHT, APPROX.9,000 LBS
DIMENSIONS, APPROX.103" x 85" x 103"

Equipped With:
HEIDENHEIN TNC-426 CNC CONTROL,
RS-232C PORT INTERFACE FOR DNC OPERATION,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
STANDARD COOLANT SYSTEM WITH TANK & PUMP,
CHIP-WASH COOLANT ON WAY COVERS,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
***RIGID BOX WAY DESIGN***
