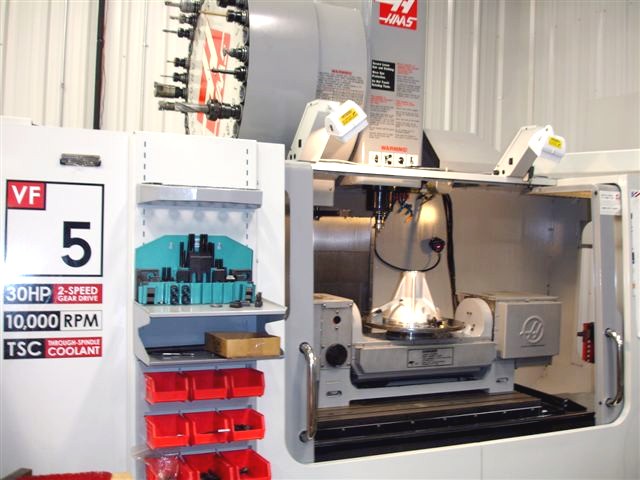

HAAS VF-5 CNC MILL, 50 x 26 x 25, 10000 RPM, 5-AXIS W/TRUNNION ROTARY TBL, COOLANT THRU SPINDLE, GEARBOX, PROBES, 2007
Stock Number: 4515
Click to view larger photo
Request a quote on stock# 4515
| Specification | Description |
|---|
| MANUFACTURED NEW | 2007 |
| TABLE SIZE | 52" x 23" |
| MAXIMUM TABLE LOAD | 4,000 LBS |
| SPINDLE NOSE TO TABLE TOP | 7" - 32" |
| X AXIS TRAVEL | 50" |
| Y AXIS TRAVEL | 26" |
| Z AXIS TRAVEL | 25" |
| No. OF AXIS DRIVES | 5 (TRUE) |
| RAPID TRAVERSE RATE X, Y & Z AXES | 710 IPM |
| CUTTING FEED RATE | 0.1 - 500 IPM |
| SPINDLE TAPER | CAT 40 |
| SPINDLE SPEEDS (2 SPEED GEARBOX) | 0 - 10,000 RPM |
| SPINDLE MOTOR | 30 HP (HIGH TORQUE) |
| TOOL CHANGER CAPACITY | 40 ATC SIDE-MOUNT |
| WEIGHT, APPROX. | 18,500 LBS |
| DIMENSIONS, APPROX. | 140" x 114" x 119" |
Equipped With:

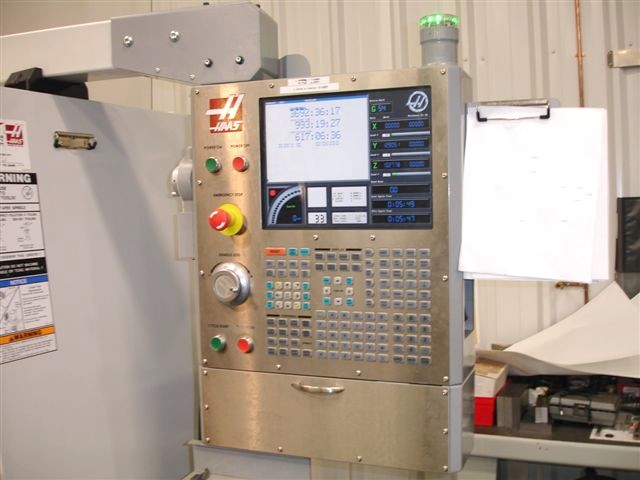

HAAS TRIPLE HIGH-SPEED CNC CONTROL w/15" COLOR LCD
ETHERNET INTERFACE w/40GB HARD DRIVE,
COOLANT THROUGH THE SPINDLE (300 PSI),
4TH & 5TH AXIS DRIVES INTEGRATED WITH:

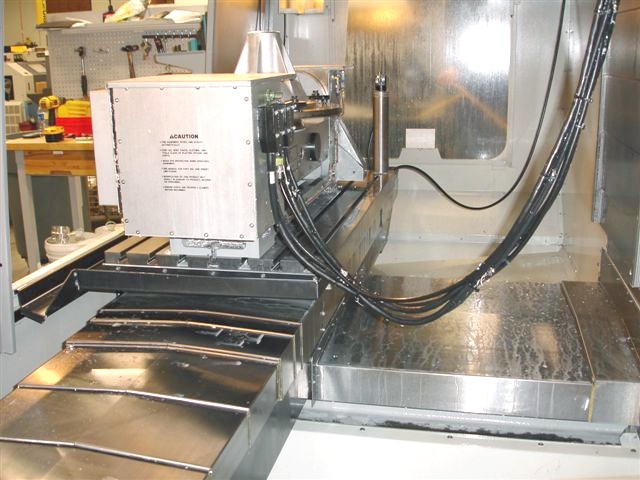

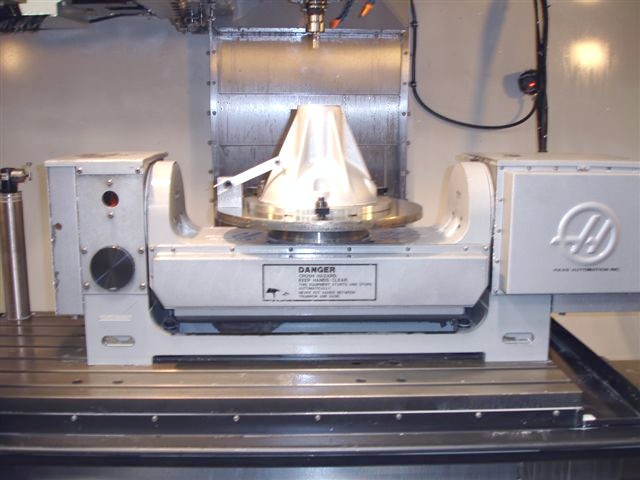

TILTING 2-AXIS TRUNNION ROTARY TABLE (TR210 - 8.27")
2-SPEED GEARBOX, PROGRAMMABLE COOLANT NOZZLE,

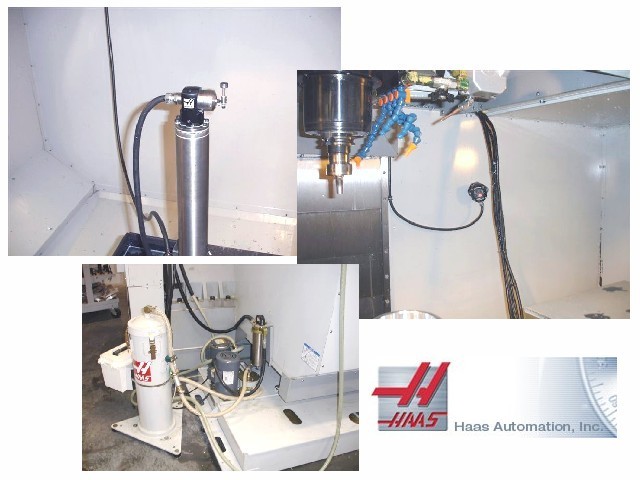

WIRELESS PART PROBE SYSTEM, TOOL PRESETTER,
VISUAL QUICK CODE PROBE SYSTEM (SPINDLE & TOOL),

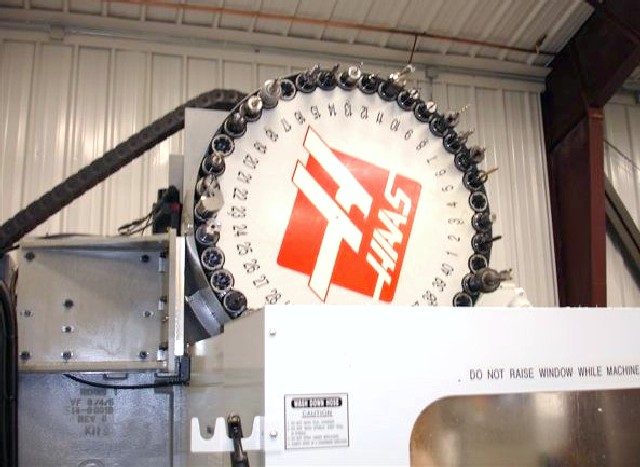

SIDE MOUNT TOOL CHANGER (40 + 1 TOOLS),
HIGH SPEED MACHINING, RIGID TAPPING,
HIGH INTENSITY LIGHTING, REMOTE JOG HANDLE,
CHIP AUGER, AUX. COOLANT FILTER, USB COM. PORT,
AUXILIARY HOME BUTTON FEATURE,
LARGER CAPACITY 80 GAL. COOLANT TANK
***HOURS DISPLAYED:
617 FEED CUTTING; 993 CYCLE START; 3692 POWER-ON
