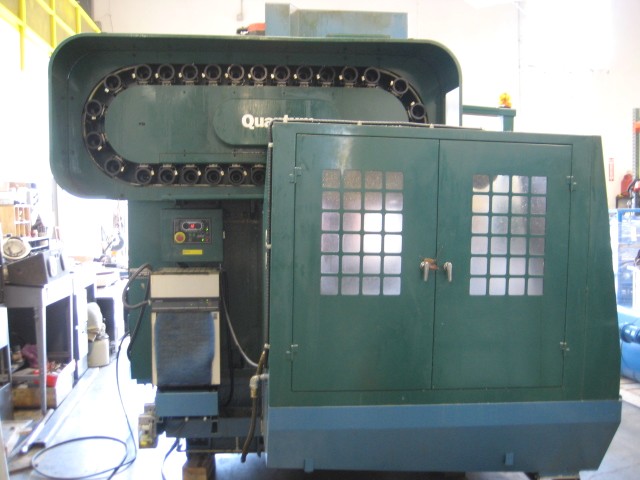

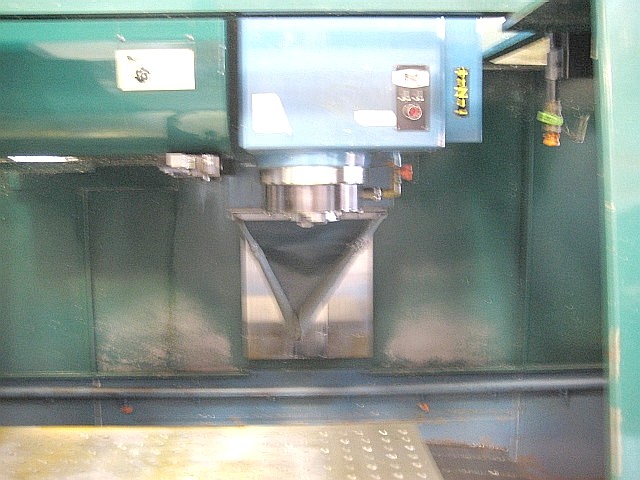

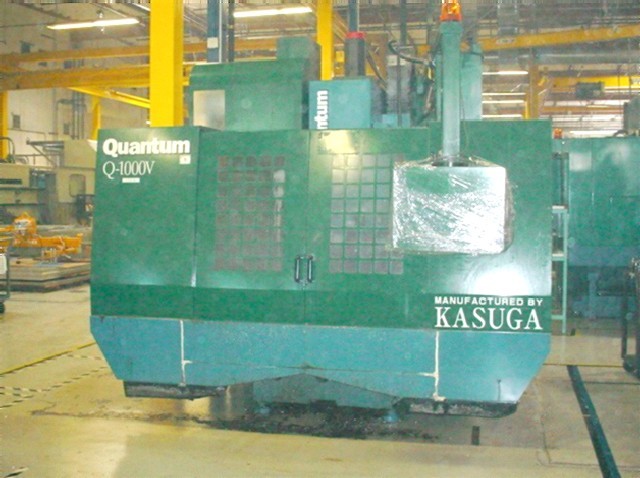

CNC VERTICAL MACHINING CENTERS: KASUGA/QUANTUM Q-1000V CNC MILL, FANUC 18i-M, 42 x 24 x 26, 50 TAPER, 6000 RPM, 25 HP,  '00 (4510)


KASUGA/QUANTUM Q-1000V CNC MILL, FANUC 18i-M, 42 x 24 x 26, 50 TAPER, 6000 RPM, 25 HP, '00 (4510)

Stock Number: 4510


CNC VERTICAL MACHINING CENTERS: KASUGA/QUANTUM Q-1000V CNC MILL, FANUC 18i-M, 42 x 24 x 26, 50 TAPER, 6000 RPM, 25 HP,  '00 (4510), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: KASUGA/QUANTUM Q-1000V CNC MILL, FANUC 18i-M, 42 x 24 x 26, 50 TAPER, 6000 RPM, 25 HP,  '00 (4510), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: KASUGA/QUANTUM Q-1000V CNC MILL, FANUC 18i-M, 42 x 24 x 26, 50 TAPER, 6000 RPM, 25 HP,  '00 (4510), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4510 CNC VERTICAL MACHINING CENTERS: KASUGA/QUANTUM Q-1000V CNC MILL, FANUC 18i-M, 42 x 24 x 26, 50 TAPER, 6000 RPM, 25 HP,  '00 (4510)Request a quote on stock# 4510
SpecificationDescription
MANUFACTURED NEW2000
TABLE SIZE55" x 23.6"
TABLE LOAD, MAX.2200 LBS
TABLE TOP TO SPINDLE END6.3" - 31.9"
X AXIS TRAVEL42"
Y AXIS TRAVEL24"
Z AXIS TRAVEL25.6"
RAPID TRAVERSE RATE X, Y AXES787 IPM
RAPID TRAVERSE Z AXIS590 IPM
CUTTING FEED RATE0.1 - 393 IPM
SPINDLE TAPERCAT 50
SPINDLE SPEEDS50 - 6000 RPM
SPINDLE MOTOR25 HP
TOOL CHANGER CAPACITY30 STATION ATC (SIDE-MOUNT)
MAXIMUM TOOL WEIGHT33 LBS
MACHINE WEIGHT, APPROX.19,000 LBS

Equipped With:
FANUC 18i-M CNC CONTROL WITH CRT,
RS-232C PORT INTERFACED FOR DNC OPERATION,
RIGID TAPPING (SYNCHRONOUS TAPPING / SOLID TAPPING),
TURBO CHIP CONVEYOR, SWING-ARM SIDE-MOUNT ATC,
STANDARD COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED GUARDING
***HOURS DISPLAYED:
CUT TIME: 4401; OPERATING TIME: 6905
POWER-ON: 7621
