CNC VERTICAL MACHINING CENTERS: DECKEL MAHO DMU-50 CNC MILL, 5-AXIS, 20x18x16, 17 HP, 10000 RPM, '05 (4502)

DECKEL MAHO DMU-50 CNC MILL, 5-AXIS, 20x18x16, 17 HP, 10000 RPM, '05 (4502)

Stock Number: 4502

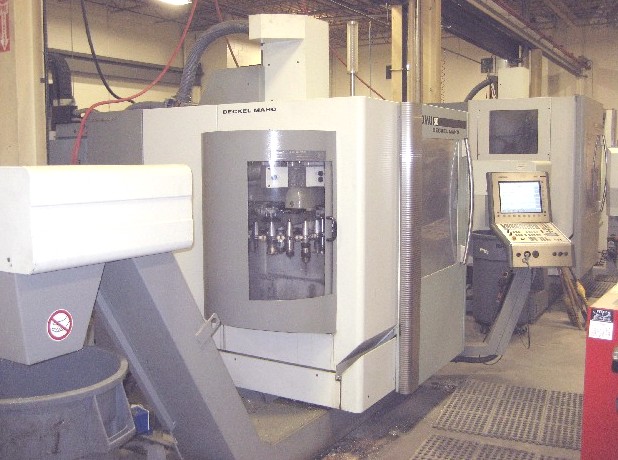

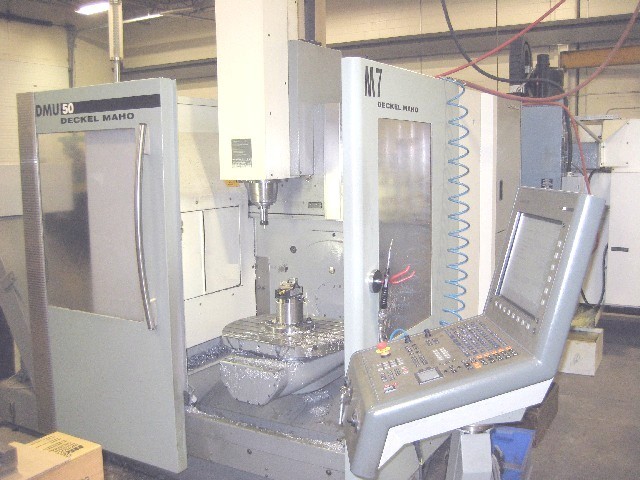

CNC VERTICAL MACHINING CENTERS: DECKEL MAHO DMU-50 CNC MILL, 5-AXIS, 20x18x16, 17 HP, 10000 RPM, '05 (4502), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: DECKEL MAHO DMU-50 CNC MILL, 5-AXIS, 20x18x16, 17 HP, 10000 RPM, '05 (4502), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: DECKEL MAHO DMU-50 CNC MILL, 5-AXIS, 20x18x16, 17 HP, 10000 RPM, '05 (4502), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: DECKEL MAHO DMU-50 CNC MILL, 5-AXIS, 20x18x16, 17 HP, 10000 RPM, '05 (4502), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4502 CNC VERTICAL MACHINING CENTERS: DECKEL MAHO DMU-50 CNC MILL, 5-AXIS, 20x18x16, 17 HP, 10000 RPM, '05 (4502)Request a quote on stock# 4502
SpecificationDescription
DATE OF MANUFACTURE2005
TABLE SIZE24.8" x 19.6"
X AXIS TRAVEL19.6"
Y AXIS TRAVEL17.7"
Z AXIS TRAVEL15.7"
B AXIS TRAVEL (TABLE SWIVEL)0 - 115 deg
C AXIS TRAVEL (TABLE ROTATION)0 - 360 deg
SPINDLE SPEEDS20 - 10,000 RPM
SPINDLE TAPERISO-40
SPINDLE MOTOR17 HP
FEED RATE X / Y / Z AXES394 IPM
RAPID TRAVERSE X, Y & Z AXIS472 IPM
TOOL CHANGER CAPACITY16 ATC
DIMENSIONS, APPROX.84 " x 125" x 85"
MACHINE WEIGHT, APPROX9,000 lbs

Equipped With:

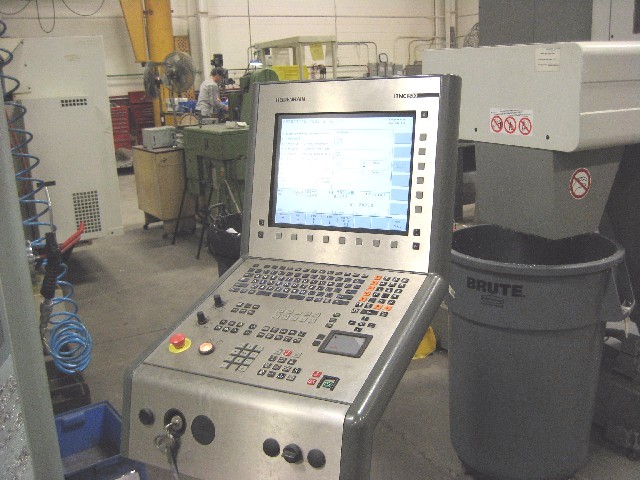

HEIDENHAIN iTNC 530 CNC CONTROL,
3 PLUS 2-AXIS CONTOURING CONTROL,

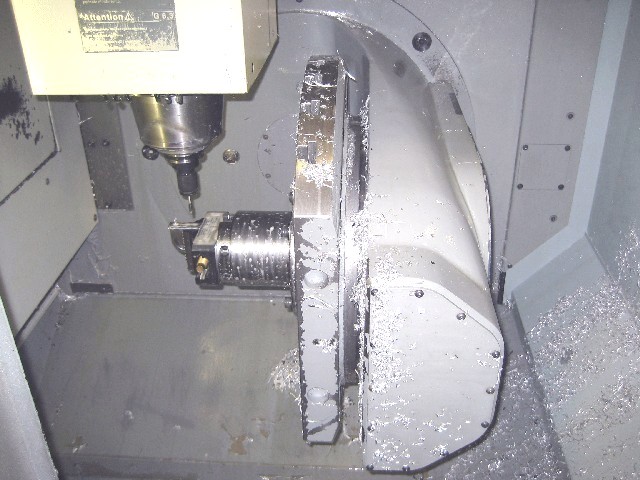

SWIVEL ROTATING TABLE,
COOLANT SYTEM W/PUMP & RESERVOIR,
CHIP CONVEYOR,
AVAILABLE MANUALS
****FOR HIGH PRECISION 5-AXIS CONTOURING****
