CNC VERTICAL MACHINING CENTERS: CLAUSING CV-1000 CNC MILL, 40 x 20 x 20, FANUC 0-MD, 20 ATC, 2000 (4501)

CLAUSING CV-1000 CNC MILL, 40 x 20 x 20, FANUC 0-MD, 20 ATC, 2000 (4501)

Stock Number: 4501

CNC VERTICAL MACHINING CENTERS: CLAUSING CV-1000 CNC MILL, 40 x 20 x 20, FANUC 0-MD, 20 ATC, 2000 (4501), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: CLAUSING CV-1000 CNC MILL, 40 x 20 x 20, FANUC 0-MD, 20 ATC, 2000 (4501), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: CLAUSING CV-1000 CNC MILL, 40 x 20 x 20, FANUC 0-MD, 20 ATC, 2000 (4501), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: CLAUSING CV-1000 CNC MILL, 40 x 20 x 20, FANUC 0-MD, 20 ATC, 2000 (4501), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: CLAUSING CV-1000 CNC MILL, 40 x 20 x 20, FANUC 0-MD, 20 ATC, 2000 (4501), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: CLAUSING CV-1000 CNC MILL, 40 x 20 x 20, FANUC 0-MD, 20 ATC, 2000 (4501), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: CLAUSING CV-1000 CNC MILL, 40 x 20 x 20, FANUC 0-MD, 20 ATC, 2000 (4501), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4501 CNC VERTICAL MACHINING CENTERS: CLAUSING CV-1000 CNC MILL, 40 x 20 x 20, FANUC 0-MD, 20 ATC, 2000 (4501)Request a quote on stock# 4501
SpecificationDescription
DATE OF MANUFACTURE2/2000
TABLE SIZE42" x 19.7"
MAXIMUM TABLE LOAD660 LBS
SPINDLE NOSE TO PALLET TOP4" - 24"
X AXIS TRAVEL40"
Y AXIS TRAVEL20"
Z AXIS TRAVEL20"
RAPID TRAVERSE RATE X, Y & Z AXES1181 IPM
CUTTING FEED RATE0.1 - 500 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS45 - 6000 RPM
SPINDLE MOTOR15 HP
TOOL CHANGER CAPACITY20 ATC
MAXIMUM TOOL WEIGHT13 LBS
WEIGHT, APPROX.8,500 LBS
DIMENSIONS, APPROX.114" x 88" x 105"

Equipped With:

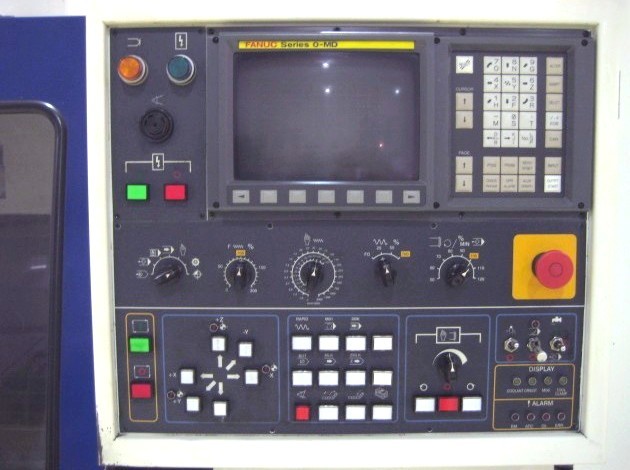

FANUC O-MD CNC CONTROL WITH 9" MONOCHROME CRT
RS-232C PORT INTERFACE FOR DNC OPERATION,
RIGHT SIDE LIFT-UP CHIP CONVEYOR,
PRE-WIRED FOR 4-AXIS W/DRIVE,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
REMOTE (PULSE) JOG HANDLE,
FULLY ENCLOSED SPLASH GUARDING/ENCLOSURES,
STANDARD COOLANT SYSTEM, ALL AVAILABLE MANUALS
