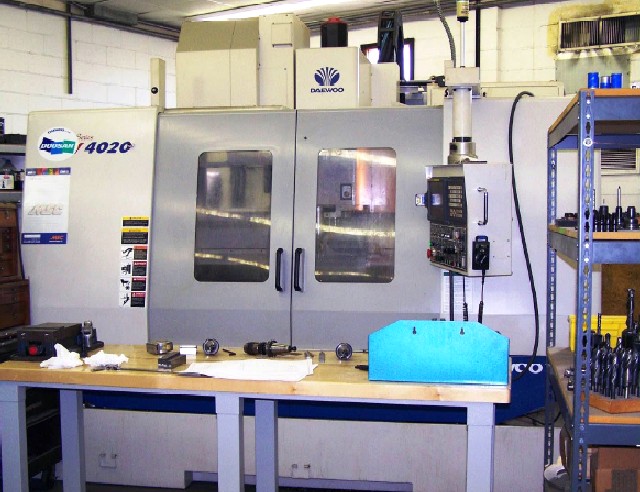

DAEWOO DOOSAN DMV-4020 CNC MILL, FANUC 21i-MB, 40 x 20 x 25, 1200 IPM RAPIDS, 8000 RPM, '04 (4495)
Stock Number: 4495
Click to view larger photo
Request a quote on stock# 4495
| Specification | Description |
|---|
| MANUFACTURED NEW | 2004 |
| TABLE SIZE | 47" x 20" |
| MAXIMUM TABLE LOAD | 1,760 LBS |
| X AXIS TRAVEL | 40.2" |
| Y AXIS TRAVEL | 20.1" |
| Z AXIS TRAVEL | 24.6" |
| SPINDLE NOSE TO TABLE TOP | 6" - 31" |
| RAPID TRAVERSE RATE X & Y AXES | 1181 IPM |
| RAPID TRAVERSE RATE Z AXIS | 945 IPM |
| SPINDLE TAPER | CAT 40 |
| SPINDLE SPEEDS | 50 - 8,000 RPM |
| SPINDLE MOTOR | 20 HP |
| TOOL CHANGER CAPACITY, SIDE | 30 STATION SIDE MOUNT |
| MACHINE WEIGHT | 15,800 LBS |
Equipped With:
FANUC 21i-MB CNC COLOR CONTROL,
RS-232C PORT INTERFACE FOR DNC OPERATION,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
HAND-HELD REMOTE PULSE GENERATOR,
CUSTOM MACRO B (USER DEFINABLE),
CAM TYPE DOUBLE ARM ATC (SIDE MOUNTED),
TURBO CHIP CONVEYOR AT LEFT SIDE,
STANDARD COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
***RIGID BOX WAY CONSTRUCTION***
SEE PHOTOS ATTACHED AND WEBSITE FOR MORE: www.MWMachinery.com
