CNC VERTICAL MACHINING CENTERS: MILLTRONICS VM16 CNC MILL, CENTURION 6, 30 x 16 x 20, 40 TAPER, '96 (4489)

MILLTRONICS VM16 CNC MILL, CENTURION 6, 30 x 16 x 20, 40 TAPER, '96 (4489)

Stock Number: 4489

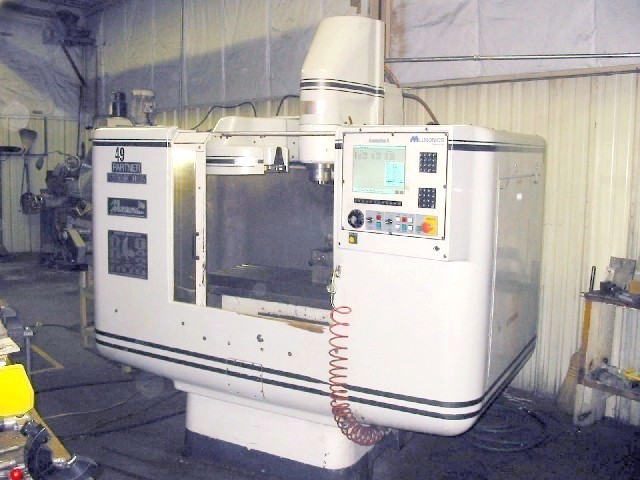

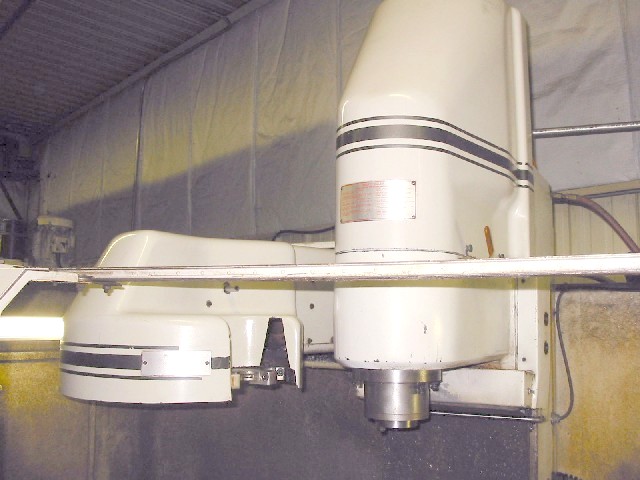

CNC VERTICAL MACHINING CENTERS: MILLTRONICS VM16 CNC MILL, CENTURION 6, 30 x 16 x 20, 40 TAPER, '96 (4489), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MILLTRONICS VM16 CNC MILL, CENTURION 6, 30 x 16 x 20, 40 TAPER, '96 (4489), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MILLTRONICS VM16 CNC MILL, CENTURION 6, 30 x 16 x 20, 40 TAPER, '96 (4489), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4489 CNC VERTICAL MACHINING CENTERS: MILLTRONICS VM16 CNC MILL, CENTURION 6, 30 x 16 x 20, 40 TAPER, '96 (4489)Request a quote on stock# 4489
SpecificationDescription
DATE OF MFG1996
TABLE SIZE45" x 16"
MAXIMUM TABLE LOAD1000 LBS
SPINDLE NOSE TO TABLE TOP7-3/4" - 27-1/4"
X AXIS TRAVEL30"
Y AXIS TRAVEL16.5"
Z AXIS TRAVEL19.5"
RAPID TRAVERSE RATE X, Y & Z AXES500 IPM
CUTTING FEED RATE0.1 - 200 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS100 - 6,000 RPM
SPINDLE MOTOR (2 SPEED GEARED)7.5 HP
TOOL CHANGER CAPACITY12 STATION
MACHINE WEIGHT, APPROX.9,000 LBS
MACHINE DIMENSIONS, APPROX.86" x 68" x 102H"

Equipped With:

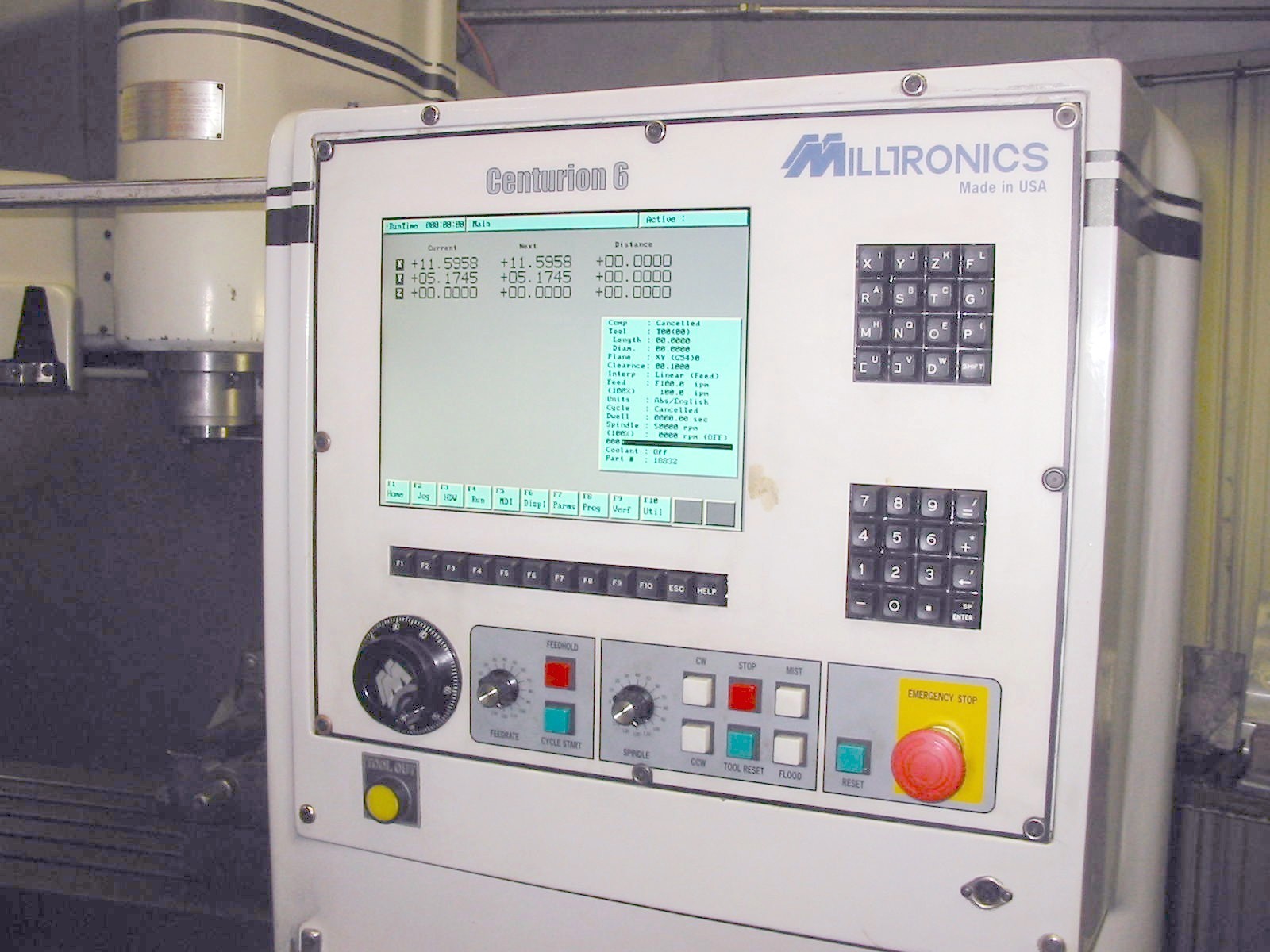

CENTURION 6 CNC CONTROL - NEW UPGRADED MODEL INSTALLED NEW IN 2005 W/ 14" COLOR LCD,
RS-232C PORT INTERFACE FOR DNC OPERATION,
FULL CONVERSATIONAL PROGRAMMING, 3-D GRAPHICS,
FANUC G-CODE COMPATIBLE,
FACTORY INSTALLED 6" COLUMN RISER,
STANDARD COOLANT SYSTEM W/TANK & PUMP,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
