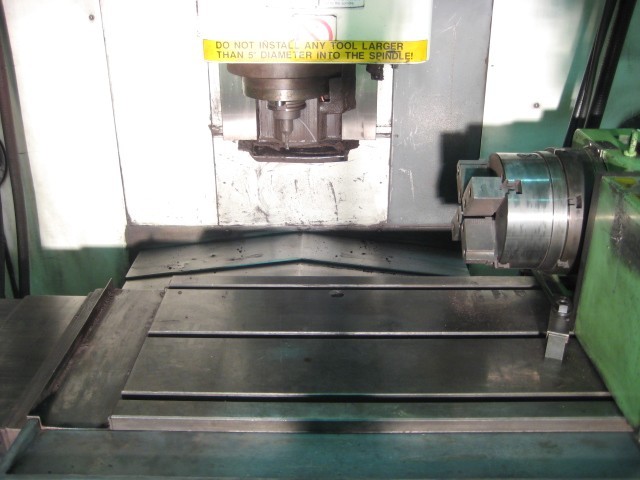

CNC VERTICAL MACHINING CENTERS: KITAMURA MYCENTER 3X CNC MILL, FANUC O-M, 30 x 18 x 18, 10000 RPM 2-SP GEARBOX, YUASA 8 IN. ROTARY TABLE, RIGID TAP, '95

KITAMURA MYCENTER 3X CNC MILL, FANUC O-M, 30 x 18 x 18, 10000 RPM 2-SP GEARBOX, YUASA 8 IN. ROTARY TABLE, RIGID TAP, '95

Stock Number: 4488

CNC VERTICAL MACHINING CENTERS: KITAMURA MYCENTER 3X CNC MILL, FANUC O-M, 30 x 18 x 18, 10000 RPM 2-SP GEARBOX, YUASA 8 IN. ROTARY TABLE, RIGID TAP, '95, Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: KITAMURA MYCENTER 3X CNC MILL, FANUC O-M, 30 x 18 x 18, 10000 RPM 2-SP GEARBOX, YUASA 8 IN. ROTARY TABLE, RIGID TAP, '95, Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: KITAMURA MYCENTER 3X CNC MILL, FANUC O-M, 30 x 18 x 18, 10000 RPM 2-SP GEARBOX, YUASA 8 IN. ROTARY TABLE, RIGID TAP, '95, Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: KITAMURA MYCENTER 3X CNC MILL, FANUC O-M, 30 x 18 x 18, 10000 RPM 2-SP GEARBOX, YUASA 8 IN. ROTARY TABLE, RIGID TAP, '95, Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: KITAMURA MYCENTER 3X CNC MILL, FANUC O-M, 30 x 18 x 18, 10000 RPM 2-SP GEARBOX, YUASA 8 IN. ROTARY TABLE, RIGID TAP, '95, Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: KITAMURA MYCENTER 3X CNC MILL, FANUC O-M, 30 x 18 x 18, 10000 RPM 2-SP GEARBOX, YUASA 8 IN. ROTARY TABLE, RIGID TAP, '95, Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: KITAMURA MYCENTER 3X CNC MILL, FANUC O-M, 30 x 18 x 18, 10000 RPM 2-SP GEARBOX, YUASA 8 IN. ROTARY TABLE, RIGID TAP, '95, Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: KITAMURA MYCENTER 3X CNC MILL, FANUC O-M, 30 x 18 x 18, 10000 RPM 2-SP GEARBOX, YUASA 8 IN. ROTARY TABLE, RIGID TAP, '95, Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4488 CNC VERTICAL MACHINING CENTERS: KITAMURA MYCENTER 3X CNC MILL, FANUC O-M, 30 x 18 x 18, 10000 RPM 2-SP GEARBOX, YUASA 8 IN. ROTARY TABLE, RIGID TAP, '95Request a quote on stock# 4488
SpecificationDescription
MANUFACTURED NEW1995
TABLE SIZE16.1" x 35.4"
MAXIMUM TABLE LOAD1,100 LBS
SPINDLE NOSE TO TABLE TOP4.9" - 23.0"
X AXIS TRAVEL30"
Y AXIS TRAVEL17.9"
Z AXIS TRAVEL18.1"
RAPID TRAVERSE RATE X & Y AXES1181 IPM
RAPID TRAVERSE RATE Z AXIS945 IPM
CUTTING FEED RATE0 - 590 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS20 - 10,000 RPM
SPINDLE MOTOR (2 SPEED GEARED)15 HP

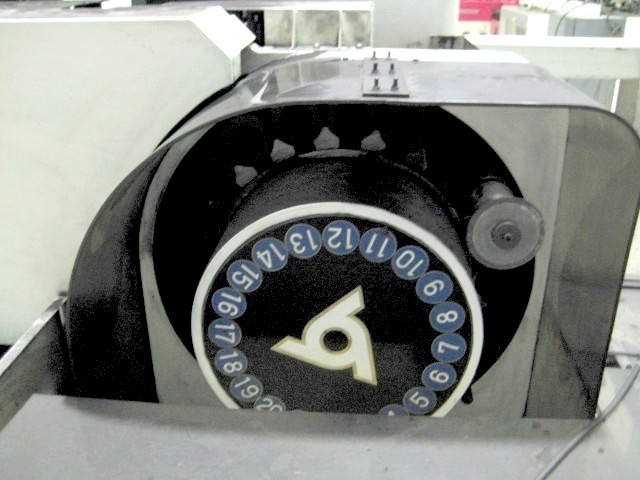

TOOL CHANGER CAPACITY20 STATION ATC
TOOL CHANGE TIME (TOOL TO TOOL)1.2 SECONDS
TOOL CHANGE TIME (CHIP TO CHIP)3.2 SECONDS
MACHINE DIMENSIONS (APPROXIMATE)102" x 98" x 104"
MACHINE WEIGHT (APPROXIMATE)11,000 LBS

Equipped With:
FANUC O-M CNC CONTROL WITH 9" CRT,
RS-232C PORT INTERFACE FOR DNC OPERATION,

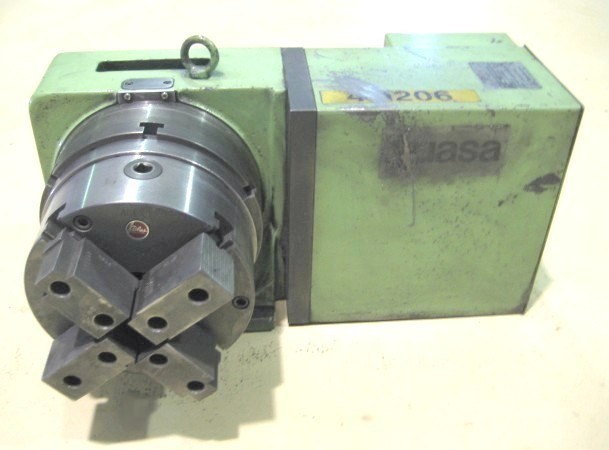

YUASA SPDX-8F 8" 4TH AXIS ROTARY TABLE,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
HELICAL INTERPOLATION, SPINDLE ORIENTATION,
DAIKIN SPINDLE CHILLER, 160 METERS MEMORY,
FULLY ENCLOSED SPLASH GUARDING, WORK LIGHT,
ALL AVAILABLE MANUALS
***VIDEO AVAILABLE UPON REQUEST***
