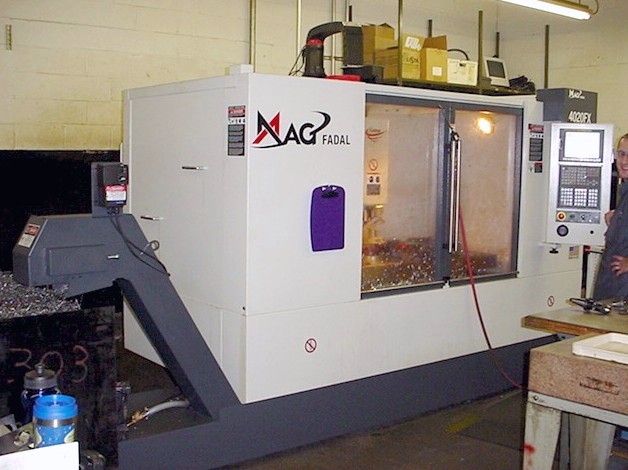

FADAL VMC-4020FX CNC MILL, GE FANUC 0i-MC CONTROL, 40 x 20 x 20, 10000 RPM, CHIP CONVEYOR, '08 (4483)
Stock Number: 4483
Click to view larger photo
Request a quote on stock# 4483
| Specification | Description |
|---|
| INSTALLED NEW | 2008 |
| TABLE SIZE | 48" x 20" |
| MAXIMUM TABLE LOAD | 3641 LBS |
| SPINDLE NOSE TO TABLE TOP | 4" - 24" |
| X AXIS TRAVEL | 40" |
| Y AXIS TRAVEL | 20" |
| Z AXIS TRAVEL | 20" |
| RAPID TRAVERSE RATE X, Y & Z AXES | 1000 IPM |
| CUTTING FEED RATE | 0.1 - 800 IPM |
| SPINDLE TAPER | CAT 40 |
| SPINDLE SPEEDS | 0 - 10,000 RPM |
| SPINDLE MOTOR, HIGH TORQUE | 16.2 HP |
| TOOL CHANGER CAPACITY | 21 STATION ATC |
| MAXIMUM TOOL WEIGHT | 15 LBS |
| MACHINE WEIGHT | 11,000 LBS |
| APPROXIMATE DIMENSIONS | 116" x 87" x 97" |
Equipped With:

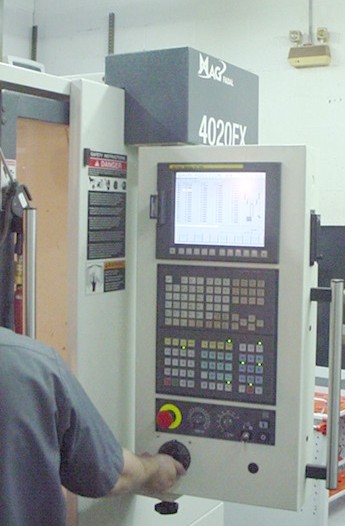

GE FANUC 0i-MC CNC CONTROL WITH 9" LCD,
PCMCIA SLOT & SERIAL PORT INTERFACE FOR DNC OPERATION,

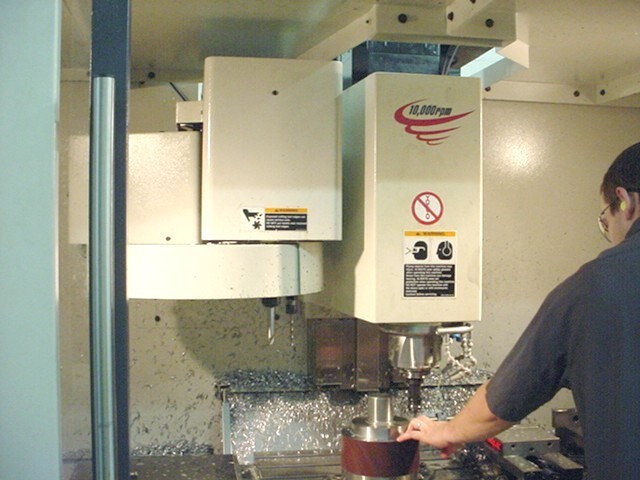

HIGH-TORQUE - HIGH SPEED SPINDLE,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
CHIP CONVEYOR (SIDE MOUNT),
GRAPHIC DISPLAY FOR VISUAL PART PROGRAM VERIFICATION,
HELICAL INTERPOLATION, CYLINDRICAL INTERPOLATION,
MACRO "B" PROGRAMMING,
STANDARD COOLANT SYSTEM WITH PUMP/TANK,
FULLY ENCLOSED SPLASH GUARDING,
**RIGID BOX WAY CONSTRUCTION X/Y/Z **
***301 CUTTING HOURS***
