CNC VERTICAL MACHINING CENTERS: MORI SEIKI MV-JR CNC MILL, FANUC 10M, 22 x 16 x 18, 7.5 HP, 8000 RPM, '88 (4482)

MORI SEIKI MV-JR CNC MILL, FANUC 10M, 22 x 16 x 18, 7.5 HP, 8000 RPM, '88 (4482)

Stock Number: 4482

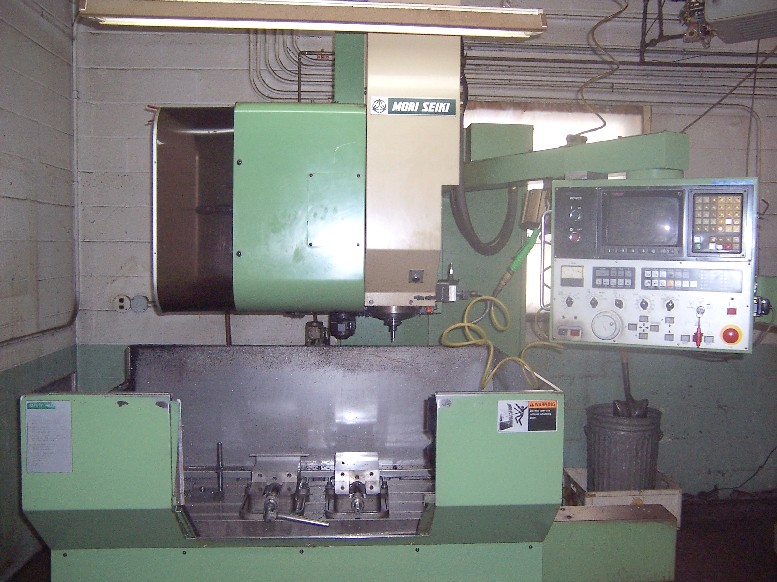

CNC VERTICAL MACHINING CENTERS: MORI SEIKI MV-JR CNC MILL, FANUC 10M, 22 x 16 x 18, 7.5 HP, 8000 RPM, '88 (4482), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MORI SEIKI MV-JR CNC MILL, FANUC 10M, 22 x 16 x 18, 7.5 HP, 8000 RPM, '88 (4482), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4482 CNC VERTICAL MACHINING CENTERS: MORI SEIKI MV-JR CNC MILL, FANUC 10M, 22 x 16 x 18, 7.5 HP, 8000 RPM, '88 (4482)Request a quote on stock# 4482
SpecificationDescription
INSTALLED NEW1988
MANUFACTURED NEWDEC. 1987
TABLE SIZE35" x 17"
MAXIMUM TABLE LOAD660 LBS
SPINDLE NOSE TO PALLET TOP6" - 25"
X AXIS TRAVEL22"
Y AXIS TRAVEL16"
Z AXIS TRAVEL18"
RAPID TRAVERSE RATE, X & Y AXES787 IPM
CUTTING FEED RATE0.1 - 197 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS0 - 8,000 RPM
SPINDLE MOTOR7.5 HP
TOOL CHANGER CAPACITY20 ATC
MAXIMUM TOOL WEIGHT17 LBS
APPROXIMATE DIMENSIONS85" x 90" x 106"
MACHINE WEIGHT8,600 LBS

Equipped With:

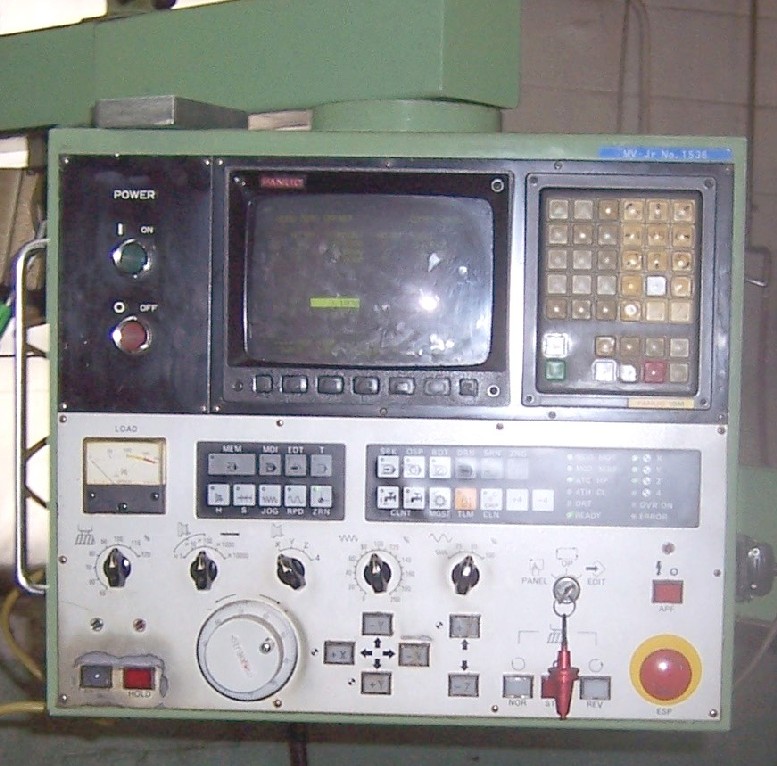

FANUC 10M CNC CONTROL WITH 9" MONOCHROME
RS-232C PORT INTERFACE FOR DNC OPERATION,
STANDARD COOLANT SYSTEM WITH TANK & PUMP,
ENCLOSED HALF GUARDING, ALL AVAILABLE MANUALS
