CNC VERTICAL MACHINING CENTERS: OKK VM-5 II APC CNC MILL, OKK NEOMATIC 635, 40 x 20 x 20, 8000 RPM, 25 HP, COOL-THRU SPINDLE, '01 (4475)

OKK VM-5 II APC CNC MILL, OKK NEOMATIC 635, 40 x 20 x 20, 8000 RPM, 25 HP, COOL-THRU SPINDLE, '01 (4475)

Stock Number: 4475

CNC VERTICAL MACHINING CENTERS: OKK VM-5 II APC CNC MILL, OKK NEOMATIC 635, 40 x 20 x 20, 8000 RPM, 25 HP, COOL-THRU SPINDLE, '01 (4475), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: OKK VM-5 II APC CNC MILL, OKK NEOMATIC 635, 40 x 20 x 20, 8000 RPM, 25 HP, COOL-THRU SPINDLE, '01 (4475), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: OKK VM-5 II APC CNC MILL, OKK NEOMATIC 635, 40 x 20 x 20, 8000 RPM, 25 HP, COOL-THRU SPINDLE, '01 (4475), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: OKK VM-5 II APC CNC MILL, OKK NEOMATIC 635, 40 x 20 x 20, 8000 RPM, 25 HP, COOL-THRU SPINDLE, '01 (4475), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: OKK VM-5 II APC CNC MILL, OKK NEOMATIC 635, 40 x 20 x 20, 8000 RPM, 25 HP, COOL-THRU SPINDLE, '01 (4475), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: OKK VM-5 II APC CNC MILL, OKK NEOMATIC 635, 40 x 20 x 20, 8000 RPM, 25 HP, COOL-THRU SPINDLE, '01 (4475), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: OKK VM-5 II APC CNC MILL, OKK NEOMATIC 635, 40 x 20 x 20, 8000 RPM, 25 HP, COOL-THRU SPINDLE, '01 (4475), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4475 CNC VERTICAL MACHINING CENTERS: OKK VM-5 II APC CNC MILL, OKK NEOMATIC 635, 40 x 20 x 20, 8000 RPM, 25 HP, COOL-THRU SPINDLE, '01 (4475)Request a quote on stock# 4475
SpecificationDescription
DATE OF MANUFACTURE2001

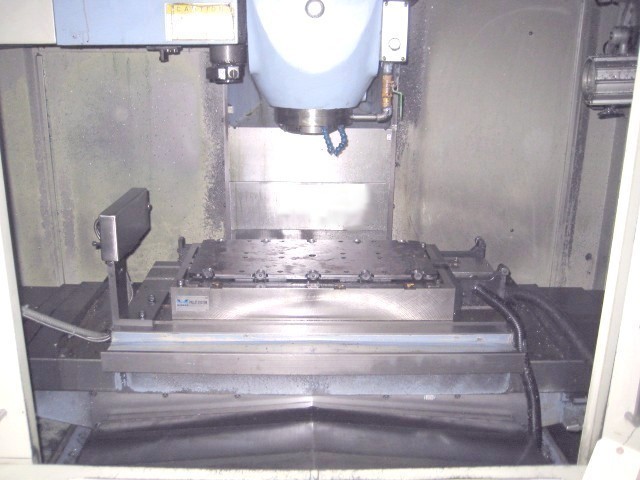

PALLET SIZE40" x 19"
TABLE SIZE41" x 22"
MAXIMUM TABLE LOAD1760 LBS
SPINDLE NOSE TO TABLE TOP5.9" - 25.9"
X AXIS TRAVEL40.15"
Y AXIS TRAVEL20.08"
Z AXIS TRAVEL20.08"
RAPID TRAVERSE RATE X, Y AXES1181 IPM
RAPID TRAVERSE RATE Z AXIS787 IPM
SPINDLE SPEEDS (2 SPEED GEARED)25 - 8000 RPM
SPINDLE TAPERCAT 40
SPINDLE MOTOR25 HP
CUTTING FEED RATE0.1 - 393 IPM
COOLANT TROUGH SPINDLE1000 PSI

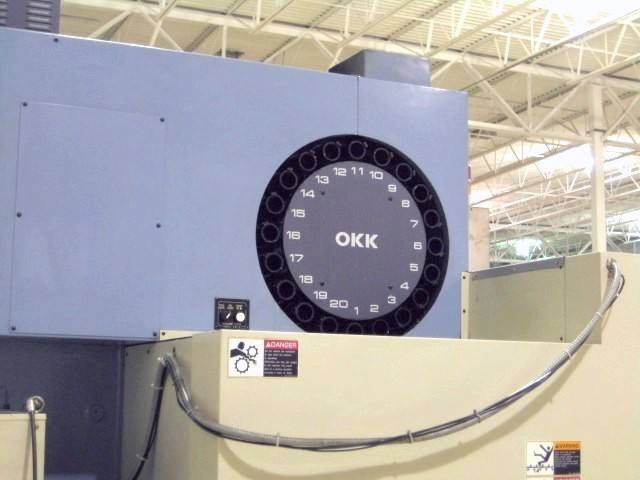

TOOL CHANGER CAPACITY20 STATIONS
MAXIMUM TOOL WEIGHT20 LBS
MACHINE WEIGHT16,501 LBS
APPROXIMATE DIMENSIONS115" x 100" x 112"

Equipped With:

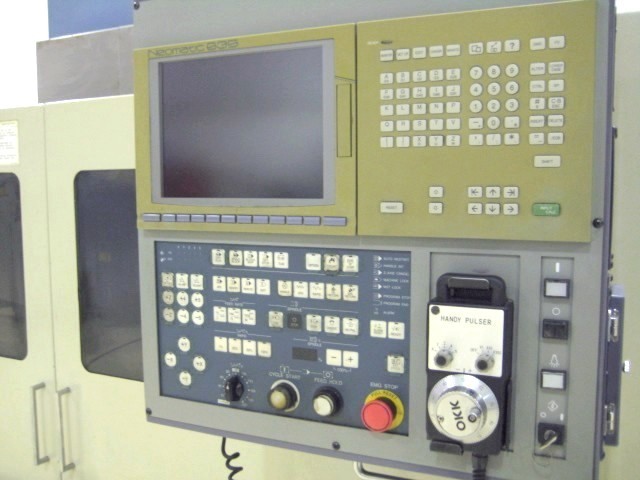

OKK NEOMATIC MITSUBISHI M635 CNC CONTROL,
RS-232C PORT INTERFACE FOR DNC OPERATION,
COOLANT THROUGH SPINDLE (1000 PSI),
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),

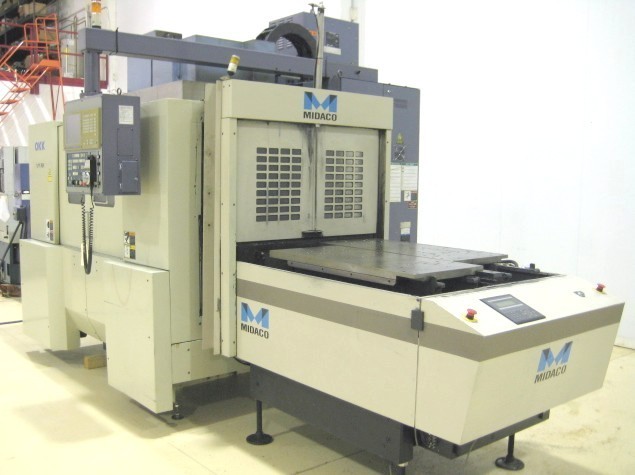

MIDACO MODEL ES 4020SD PALLET CHANGER,
MARPOSS E32 LASER PROBING SYSTEM,
SPINDLE OIL COOLER, INTERNAL CHIP AUGERS WITH
TURBO CHIP CONVEYOR, AUTO LUBE SYSTEM,
REMOTE PULSE GENERATOR,
STANDARD COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
***VIDEO AVAILABLE UPON REQUEST***
SEE PHOTOS ATTACHED AND WEBSITE FOR MORE: www.MWMachinery.com
