CNC VERTICAL MACHINING CENTERS: HAAS VF-4 CNC MILL, 50 x 20 x 25, 10000 RPM, 20 ATC, 1 MB MEM, REMOTE JOG (4453)

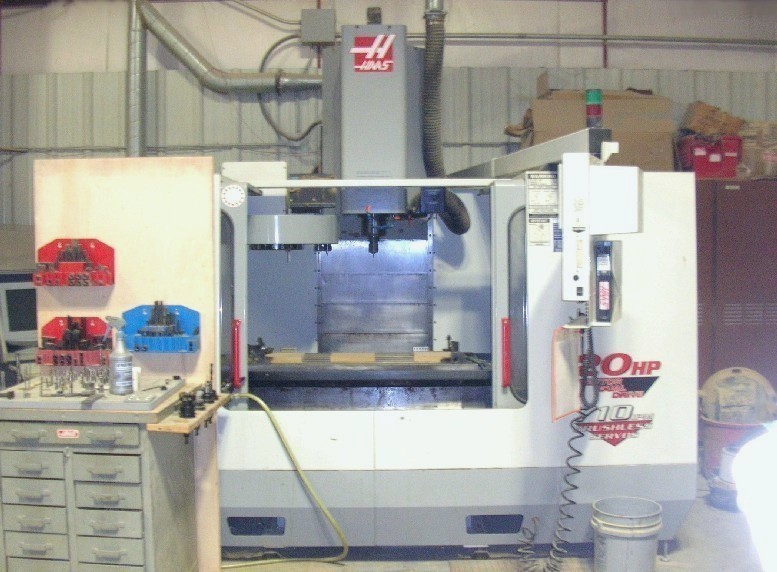

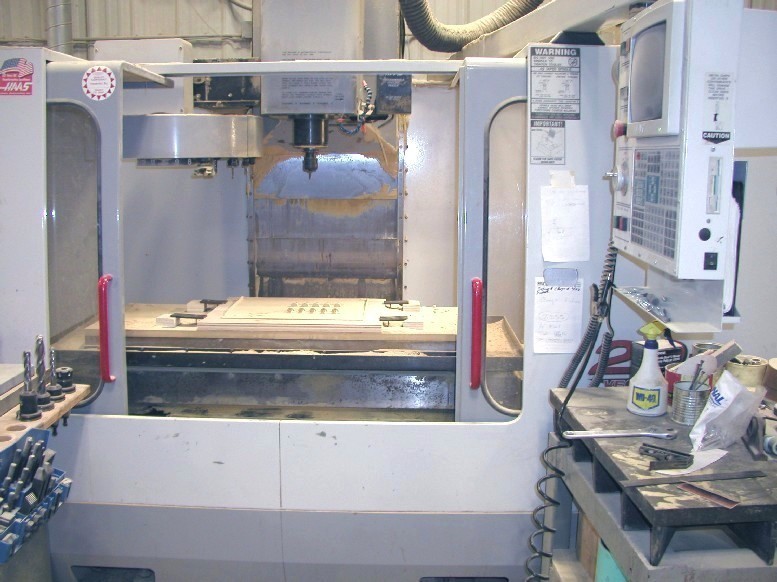

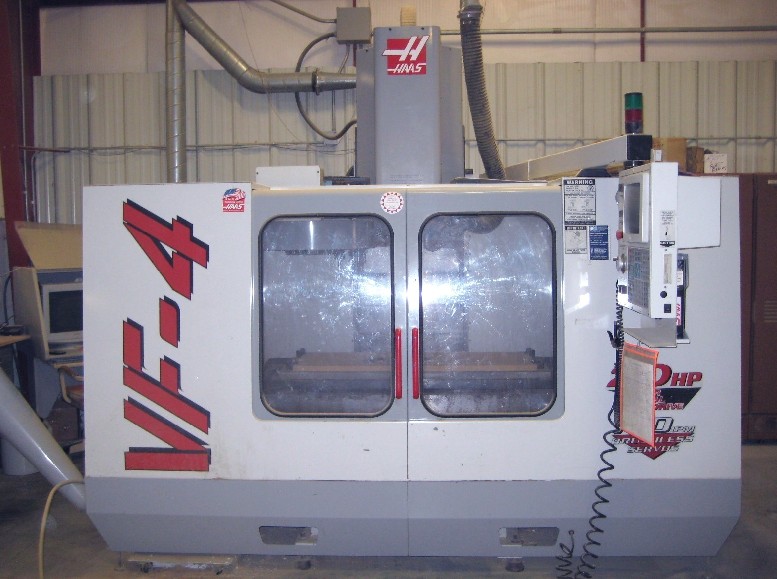

HAAS VF-4 CNC MILL, 50 x 20 x 25, 10000 RPM, 20 ATC, 1 MB MEM, REMOTE JOG (4453)

Stock Number: 4453

Click to view larger photo

Request A Quote On Our Stock Number: 4453 CNC VERTICAL MACHINING CENTERS: HAAS VF-4 CNC MILL, 50 x 20 x 25, 10000 RPM, 20 ATC, 1 MB MEM, REMOTE JOG (4453)

Request a quote on stock# 4453

Specification	Description
DATE OF MANUFACTURE	7/1999
TABLE SIZE	52" x 18"
MAXIMUM TABLE LOAD	3,500 LBS
SPINDLE NOSE TO TABLE TOP	4" - 29"
X AXIS TRAVEL	50"
Y AXIS TRAVEL	20"
Z AXIS TRAVEL	25"
RAPID TRAVERSE RATE X, Y & Z AXES	710 IPM
CUTTING FEED RATE	0.1 - 500 IPM
SPINDLE TAPER	CAT 40
SPINDLE SPEEDS	0 - 10,000 RPM
SPINDLE MOTOR	20 HP
TOOL CHANGER CAPACITY	20 STATIONS
MAXIMUM TOOL WEIGHT	12 LBS
WEIGHT, APPROX.	14,700 LBS
DIMENSIONS, APPROX.	125" x 110" x 118"

Equipped With:

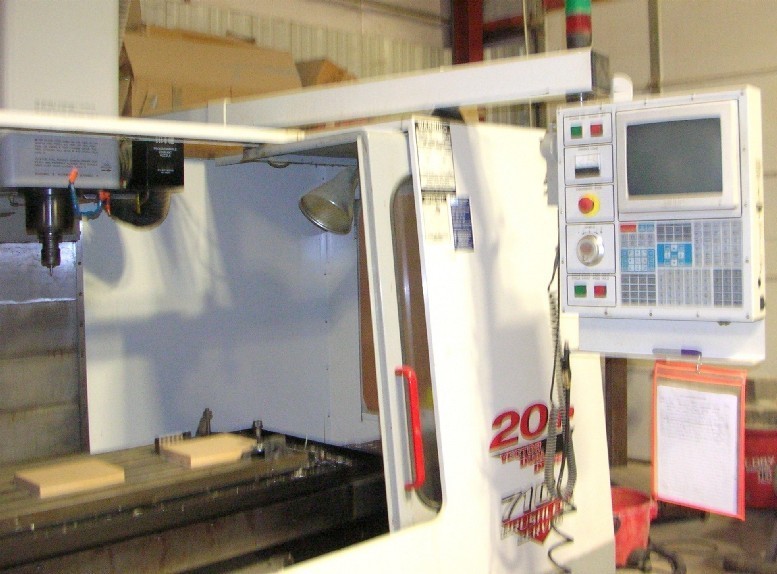

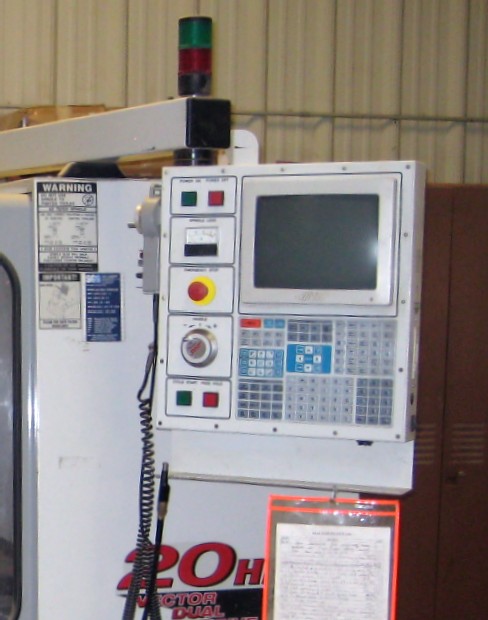

HAAS CNC CONTROL WITH 12" MONITOR,
RS-232C PORT INTERFACE FOR DNC,
RIGID TAPPING, 1 MB MEMORY UPGRADE,
COORDINATE ROTATION & SCALING, PROGRAMMABLE COOLANT,
CHIP AUGER, QUIKCODE PROGRAMMING OPTION,
REMOTE JOG HANDLE, 3.5" FLOPPY DISC,
COOLANT SYSTEM WITH TANK AND PUMP,
FULLY ENCLOSED SPLASH GUARDING, ALL AVAILABLE MANUALS
