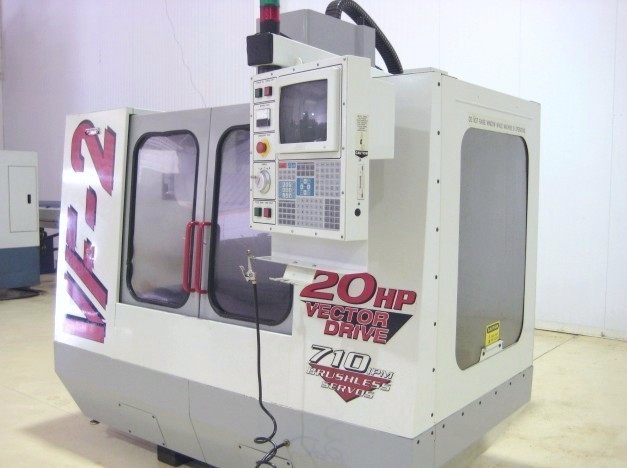

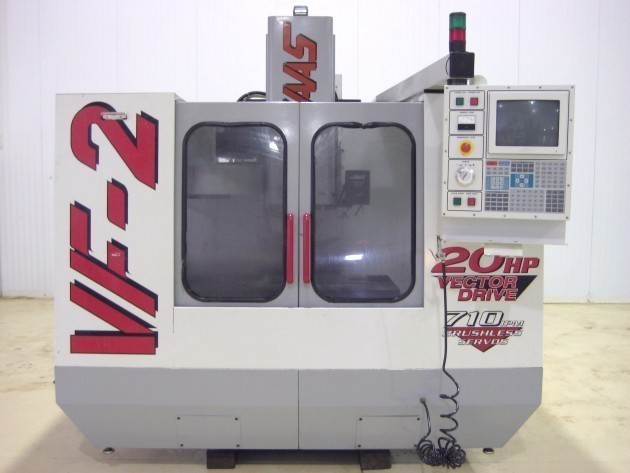

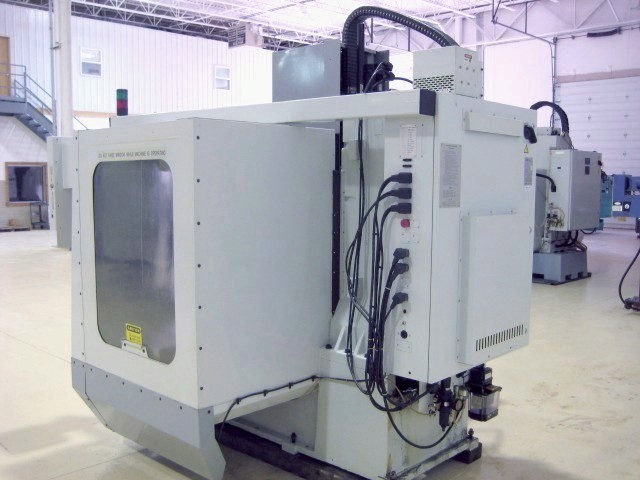

CNC VERTICAL MACHINING CENTERS: HAAS VF-2 CNC MILL, HAAS CNC, 30 x 16 x 20, 10000 RPM, 4TH WIRED,1MB, QUICKCODE, '98 (4443)

HAAS VF-2 CNC MILL, HAAS CNC, 30 x 16 x 20, 10000 RPM, 4TH WIRED,1MB, QUICKCODE, '98 (4443)

Stock Number: 4443

CNC VERTICAL MACHINING CENTERS: HAAS VF-2 CNC MILL, HAAS CNC, 30 x 16 x 20, 10000 RPM, 4TH WIRED,1MB, QUICKCODE, '98 (4443), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HAAS VF-2 CNC MILL, HAAS CNC, 30 x 16 x 20, 10000 RPM, 4TH WIRED,1MB, QUICKCODE, '98 (4443), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HAAS VF-2 CNC MILL, HAAS CNC, 30 x 16 x 20, 10000 RPM, 4TH WIRED,1MB, QUICKCODE, '98 (4443), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HAAS VF-2 CNC MILL, HAAS CNC, 30 x 16 x 20, 10000 RPM, 4TH WIRED,1MB, QUICKCODE, '98 (4443), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HAAS VF-2 CNC MILL, HAAS CNC, 30 x 16 x 20, 10000 RPM, 4TH WIRED,1MB, QUICKCODE, '98 (4443), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HAAS VF-2 CNC MILL, HAAS CNC, 30 x 16 x 20, 10000 RPM, 4TH WIRED,1MB, QUICKCODE, '98 (4443), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HAAS VF-2 CNC MILL, HAAS CNC, 30 x 16 x 20, 10000 RPM, 4TH WIRED,1MB, QUICKCODE, '98 (4443), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HAAS VF-2 CNC MILL, HAAS CNC, 30 x 16 x 20, 10000 RPM, 4TH WIRED,1MB, QUICKCODE, '98 (4443), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4443 CNC VERTICAL MACHINING CENTERS: HAAS VF-2 CNC MILL, HAAS CNC, 30 x 16 x 20, 10000 RPM, 4TH WIRED,1MB, QUICKCODE, '98 (4443)Request a quote on stock# 4443
SpecificationDescription
MFG NEW1998

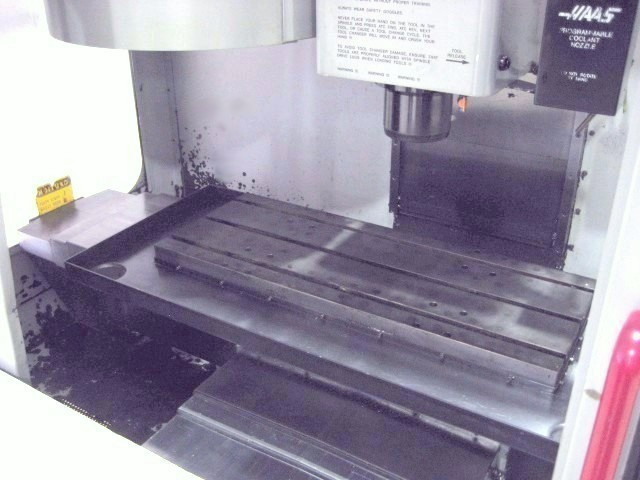

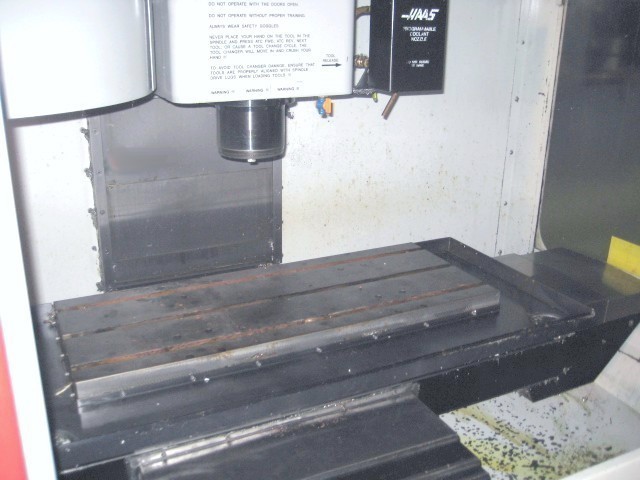

TABLE SIZE36" x 14"
MAXIMUM TABLE LOAD3,000 LBS
SPINDLE NOSE TO TABLE TOP4" - 24"
X AXIS TRAVEL30"
Y AXIS TRAVEL16"
Z AXIS TRAVEL20"
RAPID TRAVERSE RATE X & Y & Z AXES710 IPM
CUTTING FEED RATE0.1 - 500 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS (2 SPEED GEARBOX)0 - 10,000 RPM
SPINDLE MOTOR20 HP
TOOL CHANGER CAPACITY20 STATION ATC
MAXIMUM TOOL WEIGHT12 LBS
MACHINE WEIGHT. APPROX.8,500 LBS
DIMENSIONS, APPROX.110" x 93" x 105"

Equipped With:

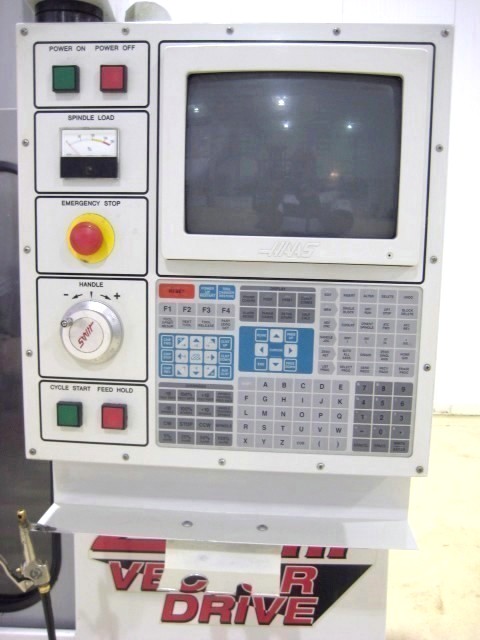

HAAS CNC CONTROL WITH 12" MONOCHROME CRT,
RS-232C PORT INTERFACE FOR DNC OPERATION,
OPTIONAL 10000 RPM SPINDLE, RIGID TAPPING,
PRE-WIRED FOR 4TH AXIS (NO ROTARY TABLE INCLUDED),
2-SPEED GEARBOX OPTION, FLOPPY DISK DRIVE,
QUIKCODE PROGRAMMING, 1MB MEMORY UPGRADE,
PROGRAMABLE COOLANT, CHIP AUGER,
STANDARD COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
***VIDEO AVAILABLE UPON REQUEST***
SEE PHOTOS ATTACHED AND WEBSITE FOR MORE: www.MWMachinery.com
