CNC VERTICAL MACHINING CENTERS: MILLTRONICS VM24 4-AXIS, CENTURION 6, 40 x 24 x 24, 12000 RPM, RIGID TAP, TROYKE CNC ROTARY TABLE, '01 (4441)

MILLTRONICS VM24 4-AXIS, CENTURION 6, 40 x 24 x 24, 12000 RPM, RIGID TAP, TROYKE CNC ROTARY TABLE, '01 (4441)

Stock Number: 4441

Age: 2001

CNC VERTICAL MACHINING CENTERS: MILLTRONICS VM24 4-AXIS, CENTURION 6, 40 x 24 x 24, 12000 RPM, RIGID TAP, TROYKE CNC ROTARY TABLE, '01 (4441), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MILLTRONICS VM24 4-AXIS, CENTURION 6, 40 x 24 x 24, 12000 RPM, RIGID TAP, TROYKE CNC ROTARY TABLE, '01 (4441), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MILLTRONICS VM24 4-AXIS, CENTURION 6, 40 x 24 x 24, 12000 RPM, RIGID TAP, TROYKE CNC ROTARY TABLE, '01 (4441), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MILLTRONICS VM24 4-AXIS, CENTURION 6, 40 x 24 x 24, 12000 RPM, RIGID TAP, TROYKE CNC ROTARY TABLE, '01 (4441), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MILLTRONICS VM24 4-AXIS, CENTURION 6, 40 x 24 x 24, 12000 RPM, RIGID TAP, TROYKE CNC ROTARY TABLE, '01 (4441), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MILLTRONICS VM24 4-AXIS, CENTURION 6, 40 x 24 x 24, 12000 RPM, RIGID TAP, TROYKE CNC ROTARY TABLE, '01 (4441), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MILLTRONICS VM24 4-AXIS, CENTURION 6, 40 x 24 x 24, 12000 RPM, RIGID TAP, TROYKE CNC ROTARY TABLE, '01 (4441), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MILLTRONICS VM24 4-AXIS, CENTURION 6, 40 x 24 x 24, 12000 RPM, RIGID TAP, TROYKE CNC ROTARY TABLE, '01 (4441), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4441 CNC VERTICAL MACHINING CENTERS: MILLTRONICS VM24 4-AXIS, CENTURION 6, 40 x 24 x 24, 12000 RPM, RIGID TAP, TROYKE CNC ROTARY TABLE, '01 (4441)Request a quote on stock# 4441
SpecificationDescription
MANUFACTURED NEW2001
TABLE SIZE45" x 24"
MAXIMUM TABLE LOAD3,000 LBS
SPINDLE NOSE TO TABLE TOP4.25" - 28.25"
X AXIS TRAVEL40"
Y AXIS TRAVEL24"
Z AXIS TRAVEL24"
RAPID TRAVERSE RATE X, Y & Z AXES1000 IPM
CUTTING FEED RATE0.1 - 400 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS0 - 12,000 RPM
SPINDLE MOTOR20 HP
TOOL CHANGER CAPACITY (SIDE MOUNTED)24 STATION ATC
MAXIMUM TOOL WEIGHT12 LBS
MACHINE WEIGHT13,500 LBS
APPROXIMATE DIMENSIONS87" x 77" x 109"

Equipped With:

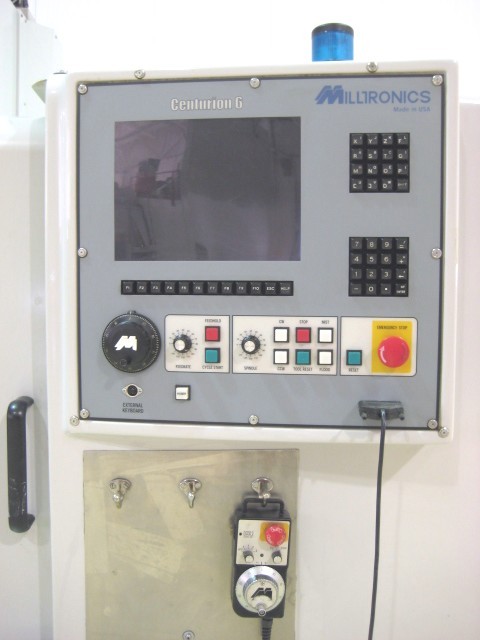

CENTURION 6 CNC CONTROL WITH 12" COLOR LCD,
RS-232C PORT INTERFACE FOR DNC OPERATION,

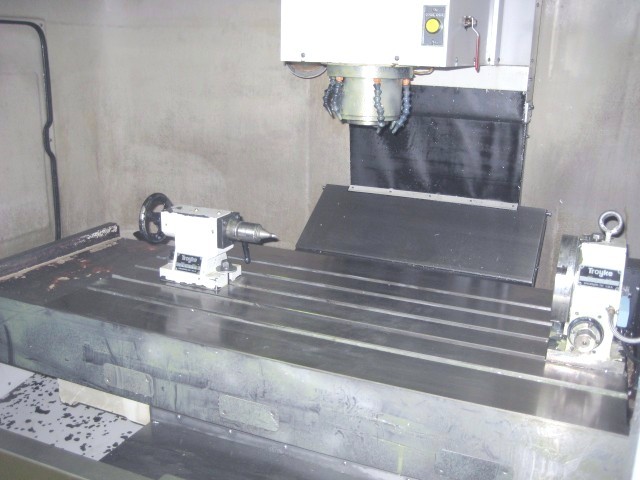

TROYKE DL-6.5B 4TH AXIS CNC ROTARY TABLE W/6" CHUCK & TAILSTOCK,
RIGID TAPPING (SYNCHRONOUS TAPPING / SOLID TAPPING),
SIDE MOUNTED AUTO TOOL CHANGER, REMOTE JOG HANDLE,
CHIP AUGER, EXTENDED PROGRAM EXECUTION MEMORY,
FLOOD COOLANT SYSTEM W/WASH-DOWN, TANK & PUMP,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS,
*** 8,245 POWER-ON HOURS ***
***VIDEO AVAILABLE UPON REQUEST***
SEE PHOTOS ATTACHED AND WEBSITE FOR MORE: www.MWMachinery.com
