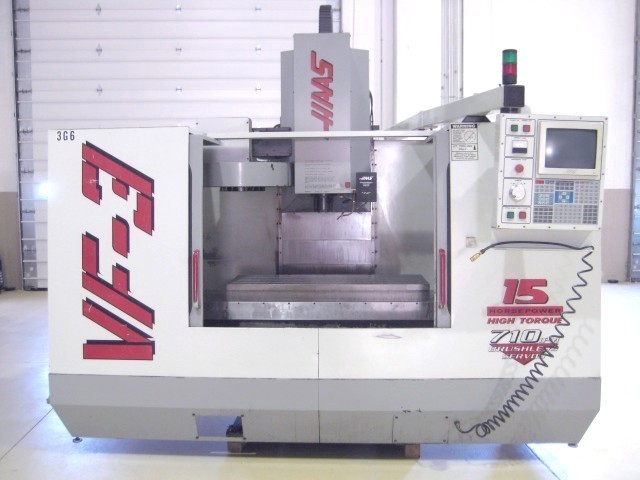

CNC VERTICAL MACHINING CENTERS: HAAS VF-3 CNC MILL, HAAS CNC, 40 x 20 x 25, 15 HP, 7500 RPM, PCKG C, '97 (4440)

HAAS VF-3 CNC MILL, HAAS CNC, 40 x 20 x 25, 15 HP, 7500 RPM, PCKG C, '97 (4440)

Stock Number: 4440

CNC VERTICAL MACHINING CENTERS: HAAS VF-3 CNC MILL, HAAS CNC, 40 x 20 x 25, 15 HP, 7500 RPM, PCKG C, '97 (4440), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HAAS VF-3 CNC MILL, HAAS CNC, 40 x 20 x 25, 15 HP, 7500 RPM, PCKG C, '97 (4440), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HAAS VF-3 CNC MILL, HAAS CNC, 40 x 20 x 25, 15 HP, 7500 RPM, PCKG C, '97 (4440), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HAAS VF-3 CNC MILL, HAAS CNC, 40 x 20 x 25, 15 HP, 7500 RPM, PCKG C, '97 (4440), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HAAS VF-3 CNC MILL, HAAS CNC, 40 x 20 x 25, 15 HP, 7500 RPM, PCKG C, '97 (4440), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HAAS VF-3 CNC MILL, HAAS CNC, 40 x 20 x 25, 15 HP, 7500 RPM, PCKG C, '97 (4440), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HAAS VF-3 CNC MILL, HAAS CNC, 40 x 20 x 25, 15 HP, 7500 RPM, PCKG C, '97 (4440), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4440 CNC VERTICAL MACHINING CENTERS: HAAS VF-3 CNC MILL, HAAS CNC, 40 x 20 x 25, 15 HP, 7500 RPM, PCKG C, '97 (4440)Request a quote on stock# 4440
SpecificationDescription
DATE OF MANUFACTURE8/1997

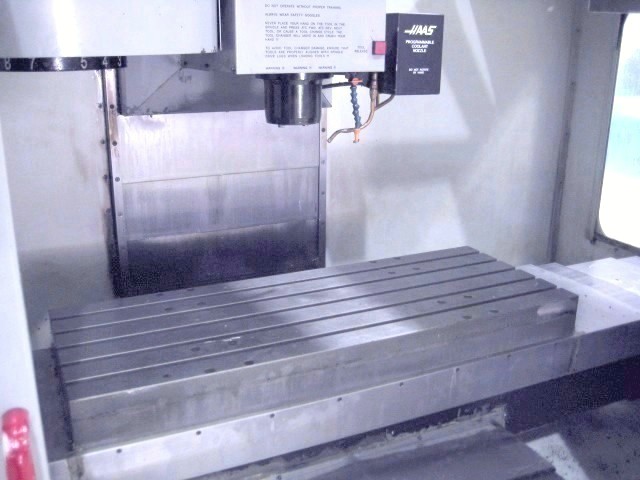

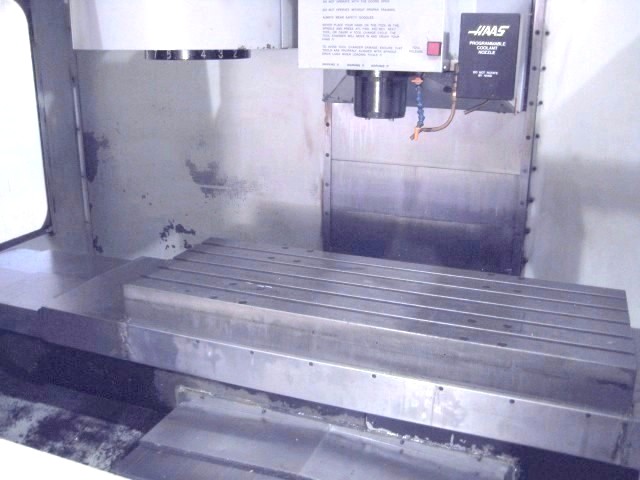

TABLE SIZE48" x 18"
MAXIMUM TABLE LOAD3,000 LBS
SPINDLE NOSE TO PALLET TOP4" - 29"
X AXIS TRAVEL40"
Y AXIS TRAVEL20"
Z AXIS TRAVEL25"
RAPID TRAVERSE RATE X, Y & Z AXES710 IPM
CUTTING FEED RATE0.1 - 500 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS (2 SPEED GEARED)0 - 7,500 RPM
SPINDLE MOTOR15 HP
TOOL CHANGER CAPACITY20 ATC
MAXIMUM TOOL WEIGHT12 LBS
MACHINE WEIGHT13,500 LBS
APPROXIMATE DIMENSIONS129" x 110" x 119.5"

Equipped With:

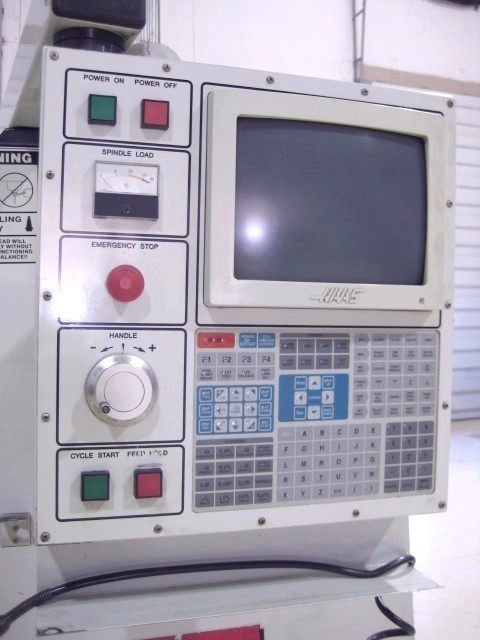

HAAS 32-BIT CNC CONTROL WITH 12" MONOCHROME CRT
RS-232C PORT INTERFACE FOR DNC OPERATION,
RIGID TAPPING (SYNCHRONOUS TAPPING / SOLID TAPPING),
PRE-WIRED FOR 4TH AXIS (NO ROTARY TABLE INCLUDED),
PROGRAMMABLE COOLANT, FLOPPY DRIVE,
QUICK CODE, CHIP AUGER, HT SPINDLE GEARBOX,
STANDARD COOLANT SYSTEM WITH TANK & PUMP,

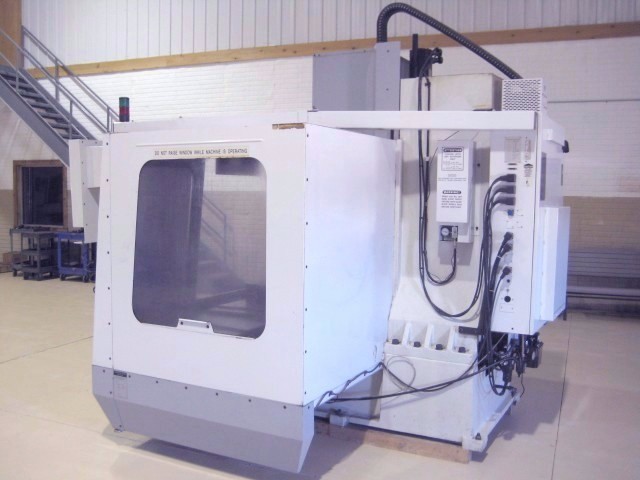

FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
****NEW VECTOR DRIVE INSTALLED****
***VIDEO AVAILABLE UPON REQUEST***
