CNC VERTICAL MACHINING CENTERS: FADAL VMC-3016 CNC MILL, MP CNC CTRL, 30 x 16 x 28, 7500 RPM, EXT-Z AXIS, 4TH AXIS, '02 (4431)

FADAL VMC-3016 CNC MILL, MP CNC CTRL, 30 x 16 x 28, 7500 RPM, EXT-Z AXIS, 4TH AXIS, '02 (4431)

Stock Number: 4431

CNC VERTICAL MACHINING CENTERS: FADAL VMC-3016 CNC MILL, MP CNC CTRL, 30 x 16 x 28, 7500 RPM, EXT-Z AXIS, 4TH AXIS, '02 (4431), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: FADAL VMC-3016 CNC MILL, MP CNC CTRL, 30 x 16 x 28, 7500 RPM, EXT-Z AXIS, 4TH AXIS, '02 (4431), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: FADAL VMC-3016 CNC MILL, MP CNC CTRL, 30 x 16 x 28, 7500 RPM, EXT-Z AXIS, 4TH AXIS, '02 (4431), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: FADAL VMC-3016 CNC MILL, MP CNC CTRL, 30 x 16 x 28, 7500 RPM, EXT-Z AXIS, 4TH AXIS, '02 (4431), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: FADAL VMC-3016 CNC MILL, MP CNC CTRL, 30 x 16 x 28, 7500 RPM, EXT-Z AXIS, 4TH AXIS, '02 (4431), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: FADAL VMC-3016 CNC MILL, MP CNC CTRL, 30 x 16 x 28, 7500 RPM, EXT-Z AXIS, 4TH AXIS, '02 (4431), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: FADAL VMC-3016 CNC MILL, MP CNC CTRL, 30 x 16 x 28, 7500 RPM, EXT-Z AXIS, 4TH AXIS, '02 (4431), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: FADAL VMC-3016 CNC MILL, MP CNC CTRL, 30 x 16 x 28, 7500 RPM, EXT-Z AXIS, 4TH AXIS, '02 (4431), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4431 CNC VERTICAL MACHINING CENTERS: FADAL VMC-3016 CNC MILL, MP CNC CTRL, 30 x 16 x 28, 7500 RPM, EXT-Z AXIS, 4TH AXIS, '02 (4431)Request a quote on stock# 4431
SpecificationDescription
DATE OF MFG2002
TABLE SIZE38" x 16"
MAXIMUM TABLE LOAD2,000 LBS
SPINDLE NOSE TO TABLE TOP4" - 32"
X AXIS TRAVEL30"
Y AXIS TRAVEL16"
Z AXIS TRAVEL28"
RAPID TRAVERSE RATE X, Y & Z AXES500 IPM
CUTTING FEED RATE0.1 - 250 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS10 - 7,500 RPM
SPINDLE MOTOR15 HP
TOOL CHANGER CAPACITY21 STATION ATC
MAXIMUM TOOL WEIGHT15 LBS
MACHINE WEIGHT7,000 LBS
APPROXIMATE DIMENSIONS90" x 89" x 94"

Equipped With:
FADAL MULTI-PROCESSOR CNC CONTROL,
RS-232C PORT INTERFACE FOR DNC OPERATION,
28" EXTENDED Z-AXIS VERTICAL TRAVEL,
RIGID TAPPING, 4 MEG. EXTENDED MEMORY,
PRE-WIRED FOR 4-AXIS W/DRIVE (NO ROTARY TABLE),
STANDARD COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED GUARDING,
***VIDEO AVAILABLE UPON REQUEST***

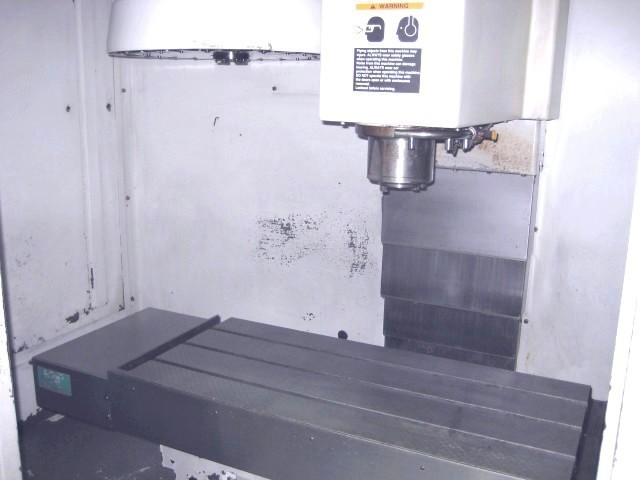

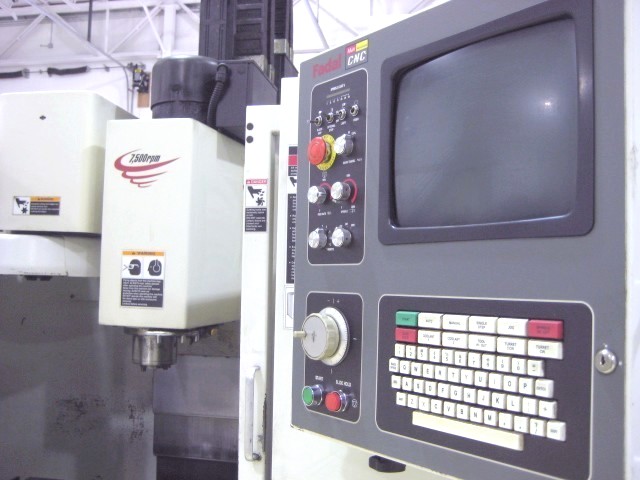

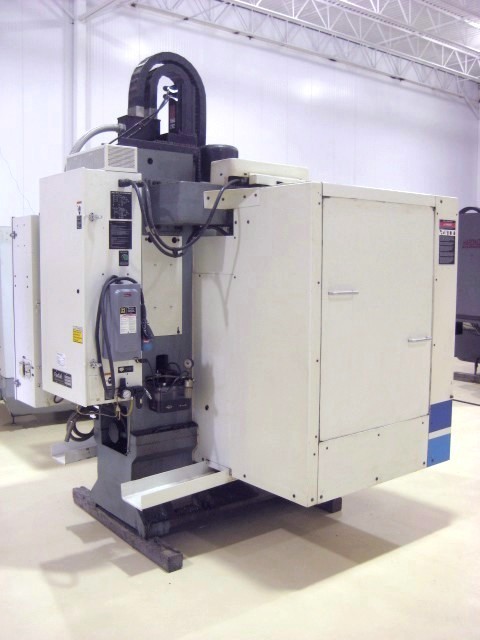

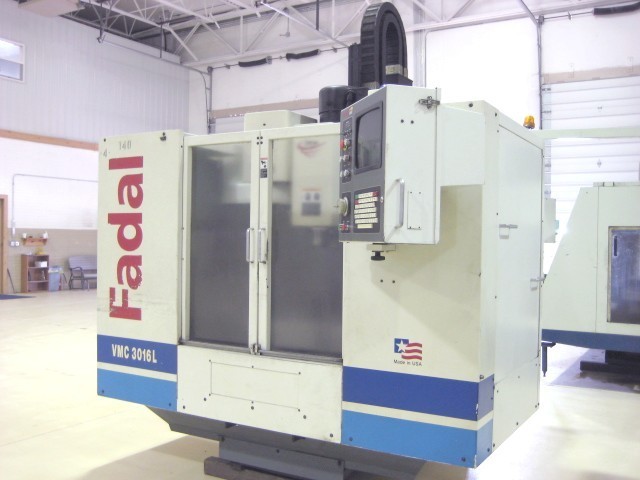

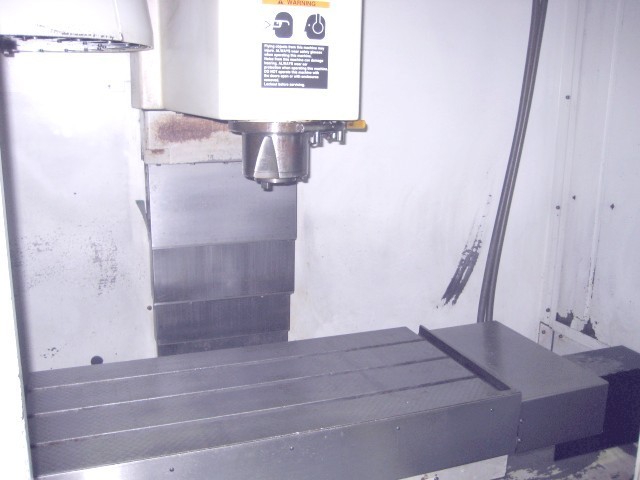

SEE PHOTOS ATTACHED AND WEBSITE FOR MORE: www.MWMachinery.com
