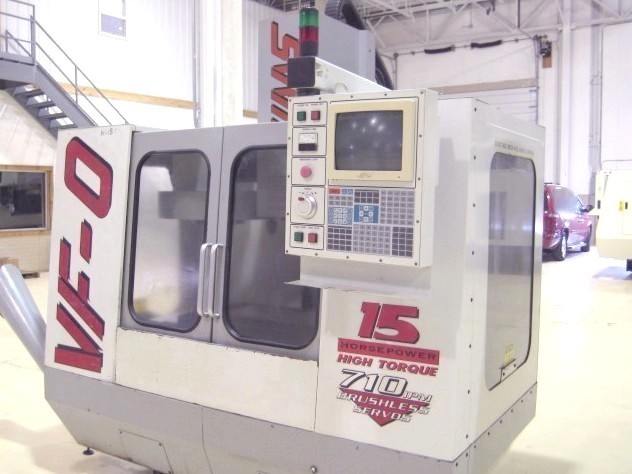

CNC VERTICAL MACHINING CENTERS: HAAS VF-0 CNC MILL, HAAS CNC, 20 x 16 x 20, 7500 RPM, RIGID TAP, AUGER, 4TH WIRED, '97 (4430)


HAAS VF-0 CNC MILL, HAAS CNC, 20 x 16 x 20, 7500 RPM, RIGID TAP, AUGER, 4TH WIRED, '97 (4430)

Stock Number: 4430


CNC VERTICAL MACHINING CENTERS: HAAS VF-0 CNC MILL, HAAS CNC, 20 x 16 x 20, 7500 RPM, RIGID TAP, AUGER, 4TH WIRED, '97 (4430), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HAAS VF-0 CNC MILL, HAAS CNC, 20 x 16 x 20, 7500 RPM, RIGID TAP, AUGER, 4TH WIRED, '97 (4430), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HAAS VF-0 CNC MILL, HAAS CNC, 20 x 16 x 20, 7500 RPM, RIGID TAP, AUGER, 4TH WIRED, '97 (4430), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HAAS VF-0 CNC MILL, HAAS CNC, 20 x 16 x 20, 7500 RPM, RIGID TAP, AUGER, 4TH WIRED, '97 (4430), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HAAS VF-0 CNC MILL, HAAS CNC, 20 x 16 x 20, 7500 RPM, RIGID TAP, AUGER, 4TH WIRED, '97 (4430), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HAAS VF-0 CNC MILL, HAAS CNC, 20 x 16 x 20, 7500 RPM, RIGID TAP, AUGER, 4TH WIRED, '97 (4430), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HAAS VF-0 CNC MILL, HAAS CNC, 20 x 16 x 20, 7500 RPM, RIGID TAP, AUGER, 4TH WIRED, '97 (4430), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4430 CNC VERTICAL MACHINING CENTERS: HAAS VF-0 CNC MILL, HAAS CNC, 20 x 16 x 20, 7500 RPM, RIGID TAP, AUGER, 4TH WIRED, '97 (4430)Request a quote on stock# 4430
SpecificationDescription
MANUFACTURED NEW1997
TABLE SIZE26" x 14"
MAXIMUM TABLE LOAD3,000 LBS
SPINDLE NOSE TO TABLE TOP4" - 29"
X AXIS TRAVEL20"
Y AXIS TRAVEL16"
Z AXIS TRAVEL20"
RAPID TRAVERSE RATE X, Y & Z AXES710 IPM
CUTTING FEED RATE0.1 - 500 IPM
SPINDLE TAPERBT 40
SPINDLE SPEEDS0 - 7,500 RPM
SPINDLE MOTOR15 HP
TOOL CHANGER CAPACITY20 STATION ATC
MAXIMUM TOOL WEIGHT12 LBS
MACHINE WEIGHT, APPROX.8,000 LBS
DIMENSIONS, ACTUAL90"L x 90"W x 90"H

Equipped With:

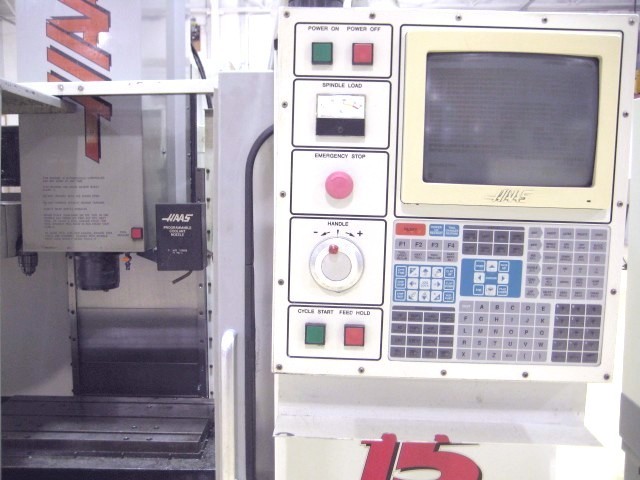

HAAS CNC CONTROL WITH 12" MONOCHROME CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)
HAAS VISUAL QUICK CODE PROGRAMMING
CHIP AUGER, PROGRAMMABLE COOLANT NOZZLE
PRE-WIRED FOR 4TH AXIS (NO ROTARY INCLUDED)
FLOPPY DISK DRIVE, 1MB MEMORY, Y DELTA MOTOR
STANDARD COOLANT SYSTEM WITH TANK & PUMP
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
***VIDEO AVAILABLE UPON REQUEST***
SEE PHOTOS ATTACHED AND WEBSITE FOR MORE: www.MWMachinery.com
