CNC VERTICAL MACHINING CENTERS: HARDINGE VMC-800 II CNC MILL,SIEMENS 810D CTRL,32 x 20 x 20, 8000 RPM, 17.3 HP, THRU SPINDLE COOLANT, '01 (4424)

HARDINGE VMC-800 II CNC MILL,SIEMENS 810D CTRL,32 x 20 x 20, 8000 RPM, 17.3 HP, THRU SPINDLE COOLANT, '01 (4424)

Stock Number: 4424

CNC VERTICAL MACHINING CENTERS: HARDINGE VMC-800 II CNC MILL,SIEMENS 810D CTRL,32 x 20 x 20, 8000 RPM, 17.3 HP, THRU SPINDLE COOLANT, '01 (4424), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HARDINGE VMC-800 II CNC MILL,SIEMENS 810D CTRL,32 x 20 x 20, 8000 RPM, 17.3 HP, THRU SPINDLE COOLANT, '01 (4424), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HARDINGE VMC-800 II CNC MILL,SIEMENS 810D CTRL,32 x 20 x 20, 8000 RPM, 17.3 HP, THRU SPINDLE COOLANT, '01 (4424), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HARDINGE VMC-800 II CNC MILL,SIEMENS 810D CTRL,32 x 20 x 20, 8000 RPM, 17.3 HP, THRU SPINDLE COOLANT, '01 (4424), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HARDINGE VMC-800 II CNC MILL,SIEMENS 810D CTRL,32 x 20 x 20, 8000 RPM, 17.3 HP, THRU SPINDLE COOLANT, '01 (4424), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HARDINGE VMC-800 II CNC MILL,SIEMENS 810D CTRL,32 x 20 x 20, 8000 RPM, 17.3 HP, THRU SPINDLE COOLANT, '01 (4424), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HARDINGE VMC-800 II CNC MILL,SIEMENS 810D CTRL,32 x 20 x 20, 8000 RPM, 17.3 HP, THRU SPINDLE COOLANT, '01 (4424), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HARDINGE VMC-800 II CNC MILL,SIEMENS 810D CTRL,32 x 20 x 20, 8000 RPM, 17.3 HP, THRU SPINDLE COOLANT, '01 (4424), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4424 CNC VERTICAL MACHINING CENTERS: HARDINGE VMC-800 II CNC MILL,SIEMENS 810D CTRL,32 x 20 x 20, 8000 RPM, 17.3 HP, THRU SPINDLE COOLANT, '01 (4424)Request a quote on stock# 4424
SpecificationDescription
YEAR OF MANUFACTURE2001

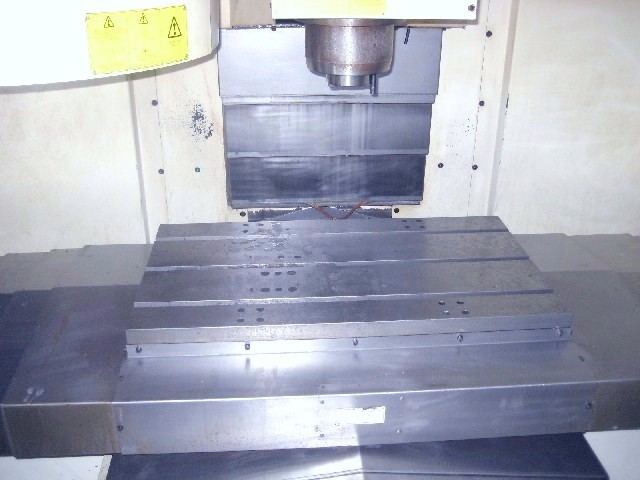

TABLE SIZE36" x 20"
MAXIMUM TABLE LOAD1,540 LBS
SPINDLE NOSE TO TABLE TOP6.1" - 26.1"
X AXIS TRAVEL31.5"
Y AXIS TRAVEL20.08"
Z AXIS TRAVEL20.08"
RAPID TRAVERSE RATE ALL AXIS1181 IPM
CUTTING FEED RATE0.1 - 472 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS0 - 8,000 RPM
SPINDLE MOTOR (VECTOR DRIVE)18 HP
TOOL CHANGER CAPACITY20 STATIONS
MAXIMUM TOOL WEIGHT13.2 LBS
MACHINE WEIGHT, APPROX.11,000 LBS
DIMENSIONS, APPROX.117" x 86" x 108"

Equipped With:

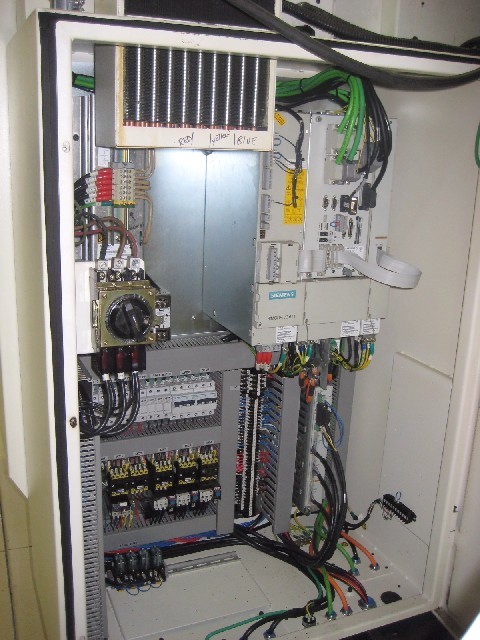

SIEMENS SINUMERIK 810D CNC CONTROL WITH 10.4" CRT & RS-232C PORT INTERFACE,
THRU-THE-SPINDLE COOLANT,
RIGID TAPPING , REMOTE JOG HANDLE,
PRE-WIRED 4TH AXIS READY W/DRIVE,
CHIP CONVEYOR, 1.44MB 3.5" FLOPPY DISK DRIVE,
COOLANT CHIP FLUSH AND WASHDOWN HOSE KIT,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
***VIDEO AVAILABLE UPON REQUEST***
SEE PHOTOS ATTACHED AND WEBSITE FOR MORE: www.MWMachinery.com
