CNC VERTICAL MACHINING CENTERS: DECKEL MAHO DMU-50 eVo LINEAR CNC MILL,5 AXIS,20x18x16, 40 HP,42000 RPM,'05 (4419)

DECKEL MAHO DMU-50 eVo LINEAR CNC MILL,5 AXIS,20x18x16, 40 HP,42000 RPM,'05 (4419)

Stock Number: 4419

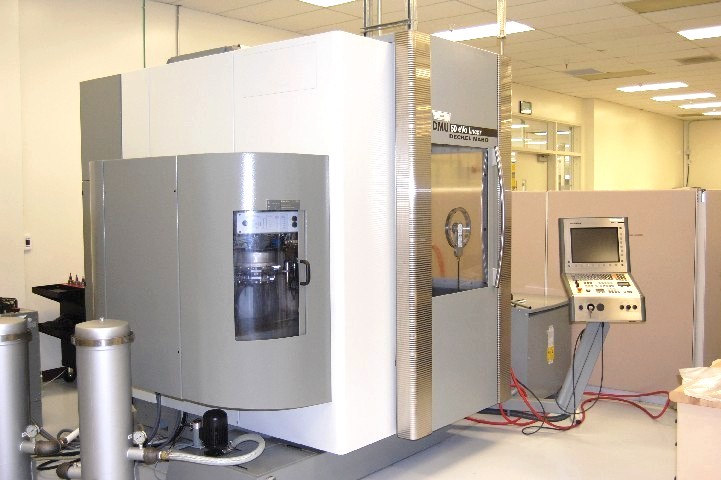

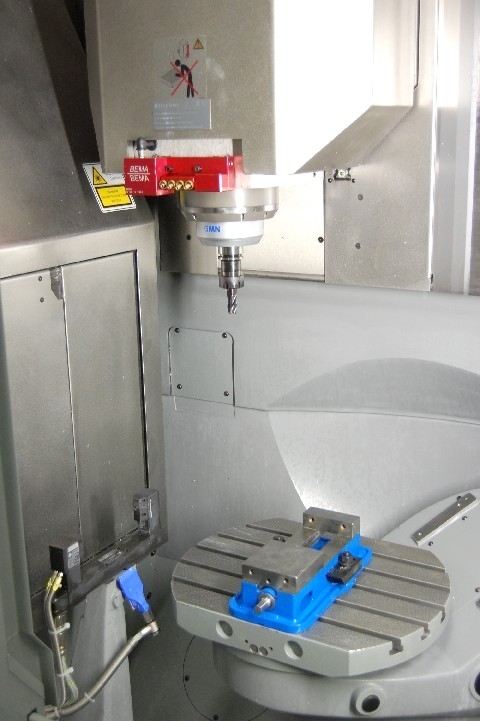

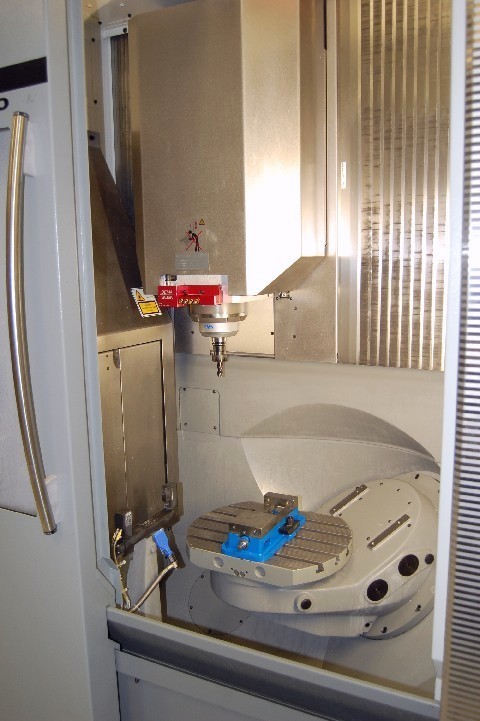

CNC VERTICAL MACHINING CENTERS: DECKEL MAHO DMU-50 eVo LINEAR CNC MILL,5 AXIS,20x18x16, 40 HP,42000 RPM,'05 (4419), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: DECKEL MAHO DMU-50 eVo LINEAR CNC MILL,5 AXIS,20x18x16, 40 HP,42000 RPM,'05 (4419), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: DECKEL MAHO DMU-50 eVo LINEAR CNC MILL,5 AXIS,20x18x16, 40 HP,42000 RPM,'05 (4419), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: DECKEL MAHO DMU-50 eVo LINEAR CNC MILL,5 AXIS,20x18x16, 40 HP,42000 RPM,'05 (4419), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4419 CNC VERTICAL MACHINING CENTERS: DECKEL MAHO DMU-50 eVo LINEAR CNC MILL,5 AXIS,20x18x16, 40 HP,42000 RPM,'05 (4419)Request a quote on stock# 4419
SpecificationDescription
DATE OF MANUFACTURE/INSTALLED NEW2005/2006
TABLE SIZE19.6" x 14.9"
X AXIS TRAVEL19.7"
Y AXIS TRAVEL17.7"
Z AXIS TRAVEL15.7"
B AXIS TRAVEL (TABLE SWIVEL)0 - 108 deg
C AXIS TRAVEL (TABLE ROTATION)0 - 360 deg
FEED RATE X / Y / Z AXES787.4 IPM
RAPID TRAVERSE X AXIS3149.6 IPM
RAPID TRAVERSE Y & Z AXIS1968.5 IPM
SPINDLE TAPERHSK-E50
SPINDLE SPEEDS20 - 42,000 rpm
SPINDLE MOTOR35 hp
TOOL CHANGER CAPACITY30 ATC
APPROXIMATE DIMENSIONS87 " x 107 x 99"
MACHINE WEIGHT, APPROX15,000 lbs

Equipped With:

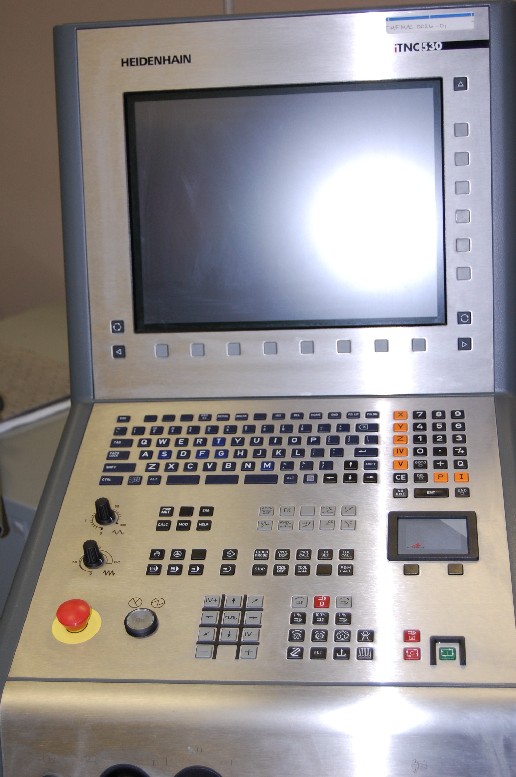

HEIDENHAIN iTNC 530 CNC CONTROL,
LASER TOOL MEASURING SYSTEM,
HIGH PRESURE COOLANT SYSTEM,
PROGRAMMABLE COOLANT NOZZLES,
ELECTRONIC HANDWHEEL, MANUALS,
ROTATING CLEAR-VIEW WINDOW
***THIS MACHINE HAS LESS THAN 500 HOURS OF RUN TIME; EXCELLENT CONDITION!***
****FOR HIGH PRECISION 5-AXIS CONTOURING****

SEE PHOTOS ATTACHED AND WEBSITE FOR MORE: www.MWMachinery.com
