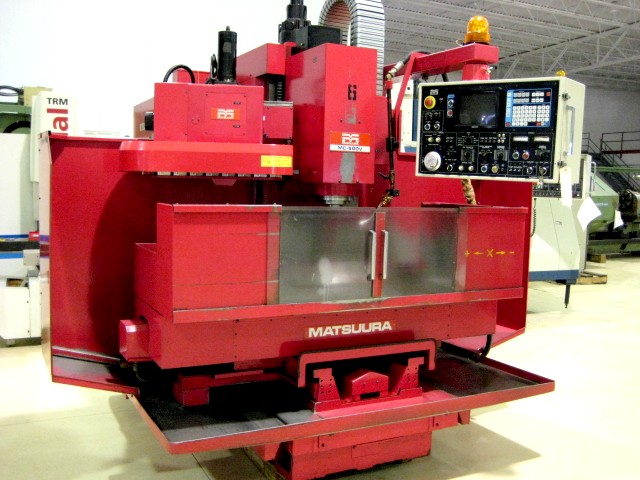

CNC VERTICAL MACHINING CENTERS: MATSUURA MC-500V 2 CNC MILL, YASNAC MX-2, 20 x 14 x 17, 6000 RPM, WELL TOOLED, '86 (4359)

MATSUURA MC-500V 2 CNC MILL, YASNAC MX-2, 20 x 14 x 17, 6000 RPM, WELL TOOLED, '86 (4359)

Stock Number: 4359

CNC VERTICAL MACHINING CENTERS: MATSUURA MC-500V 2 CNC MILL, YASNAC MX-2, 20 x 14 x 17, 6000 RPM, WELL TOOLED, '86 (4359), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MATSUURA MC-500V 2 CNC MILL, YASNAC MX-2, 20 x 14 x 17, 6000 RPM, WELL TOOLED, '86 (4359), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MATSUURA MC-500V 2 CNC MILL, YASNAC MX-2, 20 x 14 x 17, 6000 RPM, WELL TOOLED, '86 (4359), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MATSUURA MC-500V 2 CNC MILL, YASNAC MX-2, 20 x 14 x 17, 6000 RPM, WELL TOOLED, '86 (4359), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MATSUURA MC-500V 2 CNC MILL, YASNAC MX-2, 20 x 14 x 17, 6000 RPM, WELL TOOLED, '86 (4359), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MATSUURA MC-500V 2 CNC MILL, YASNAC MX-2, 20 x 14 x 17, 6000 RPM, WELL TOOLED, '86 (4359), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MATSUURA MC-500V 2 CNC MILL, YASNAC MX-2, 20 x 14 x 17, 6000 RPM, WELL TOOLED, '86 (4359), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MATSUURA MC-500V 2 CNC MILL, YASNAC MX-2, 20 x 14 x 17, 6000 RPM, WELL TOOLED, '86 (4359), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4359 CNC VERTICAL MACHINING CENTERS: MATSUURA MC-500V 2 CNC MILL, YASNAC MX-2, 20 x 14 x 17, 6000 RPM, WELL TOOLED, '86 (4359)Request a quote on stock# 4359
SpecificationDescription
DATE OF MANUFACTURE12/1985
TABLE SIZE14.96" x 34"
SPINDLE TO TABLE5.9" - 23.6"
SPINDLE CENTER TO COLUMN9.1" - 23.6"
X AXIS TRAVEL20"
Y AXIS TRAVEL14"
Z AXIS TRAVEL17.7"
SPINDLE TAPERBT 35
SPINDLE SPEED60 - 6,000 RPM

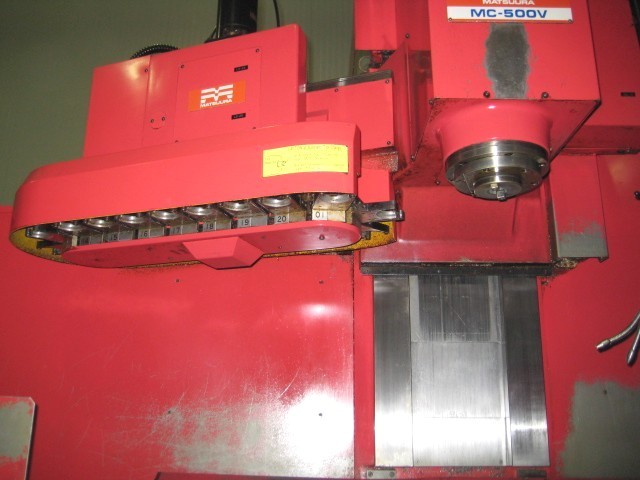

TOOL CHANGER CAPACITY20 STATIONS
SPINDLE MOTOR5/7 HP
RAPID FEEDRATE (X, Y / Z)590/470 IPM
CUTTING FEEDRATE197 IPM
MAXIMUM TOOL WEIGHT13.2 LBS
MAXIMUM TOOL LENGTH9.85"
MACHINE WEIGHT8,000 LBS
APPROXIMATE DIMENSIONS118" x 91" x 102"

Equipped With:

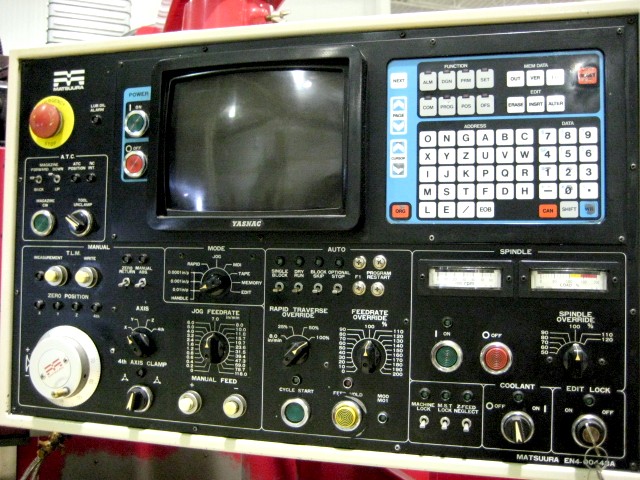

YASNAC MX-2 CNC CONTROL W/9" MONOCRHOME CRT
RS-232C PORT INTERFACE FOR DNC OPERATION

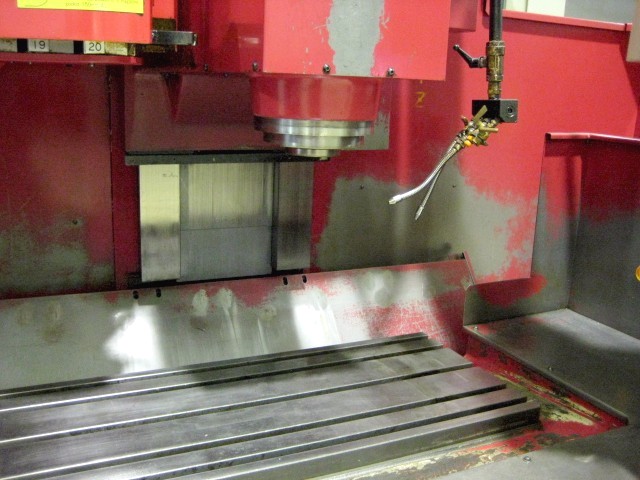

LOW HEIGHT TABLE GUARDING & SPLASH GUARDS
STANDARD COOLANT SYSTEM WITH TANK & PUMP
ALL AVAILABLE TOOLING, ALL AVAILABLE MANUALS

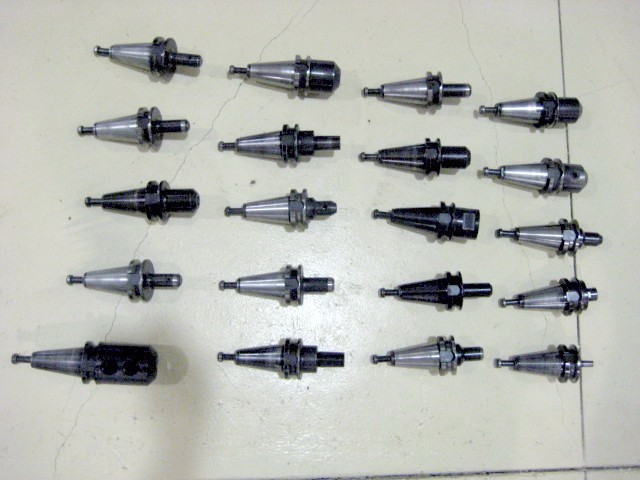

*****INCLUDES 20 ASSORTED TOOL HOLDERS*****
***VIDEO AVAILABLE UPON REQUEST***
SEE PHOTOS ATTACHED AND WEBSITE FOR MORE: www.MWMachinery.com
