CNC VERTICAL MACHINING CENTERS: KITAMURA MYCENTER 3Xi/APC CNC MILL, FANUC 16iM, 30 x 18 x 18, 10000 RPM, APC, CHIP, '00 (4289)

KITAMURA MYCENTER 3Xi/APC CNC MILL, FANUC 16iM, 30 x 18 x 18, 10000 RPM, APC, CHIP, '00 (4289)

Stock Number: 4289

Age: 2000

CNC VERTICAL MACHINING CENTERS: KITAMURA MYCENTER 3Xi/APC CNC MILL, FANUC 16iM, 30 x 18 x 18, 10000 RPM, APC, CHIP, '00 (4289), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: KITAMURA MYCENTER 3Xi/APC CNC MILL, FANUC 16iM, 30 x 18 x 18, 10000 RPM, APC, CHIP, '00 (4289), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: KITAMURA MYCENTER 3Xi/APC CNC MILL, FANUC 16iM, 30 x 18 x 18, 10000 RPM, APC, CHIP, '00 (4289), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: KITAMURA MYCENTER 3Xi/APC CNC MILL, FANUC 16iM, 30 x 18 x 18, 10000 RPM, APC, CHIP, '00 (4289), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: KITAMURA MYCENTER 3Xi/APC CNC MILL, FANUC 16iM, 30 x 18 x 18, 10000 RPM, APC, CHIP, '00 (4289), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4289 CNC VERTICAL MACHINING CENTERS: KITAMURA MYCENTER 3Xi/APC CNC MILL, FANUC 16iM, 30 x 18 x 18, 10000 RPM, APC, CHIP, '00 (4289)Request a quote on stock# 4289
SpecificationDescription
DATE OF MFG3/2000
PALLET SIZE16.1" x 32.3"
MAXIMUM PALLET LOAD440 LBS
PALLET CHANGE TIME12 SECONDS
SPINDLE NOSE TO PALLET TOP5.7" - 23.8"
X AXIS TRAVEL30"
Y AXIS TRAVEL17.9"
Z AXIS TRAVEL18.1"
RAPID TRAVERSE RATE X & Y AXES1969 IPM
RAPID TRAVERSE RATE Z AXIS1417 IPM
CUTTING FEED RATE0 - 1969 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS20 - 10,000 RPM
SPINDLE MOTOR (2 SPEED GEARED)15 HP
TOOL CHANGER CAPACITY30 STATIONS
TOOL CHANGE TIME (TOOL TO TOOL)1.2 SECONDS
TOOL CHANGE TIME (CHIP TO CHIP)3.0 SECONDS
MACHINE DIMENSIONS (APPROXIMATE)140" x 99" x 110"
MACHINE WEIGHT17,000 LBS

Equipped With:

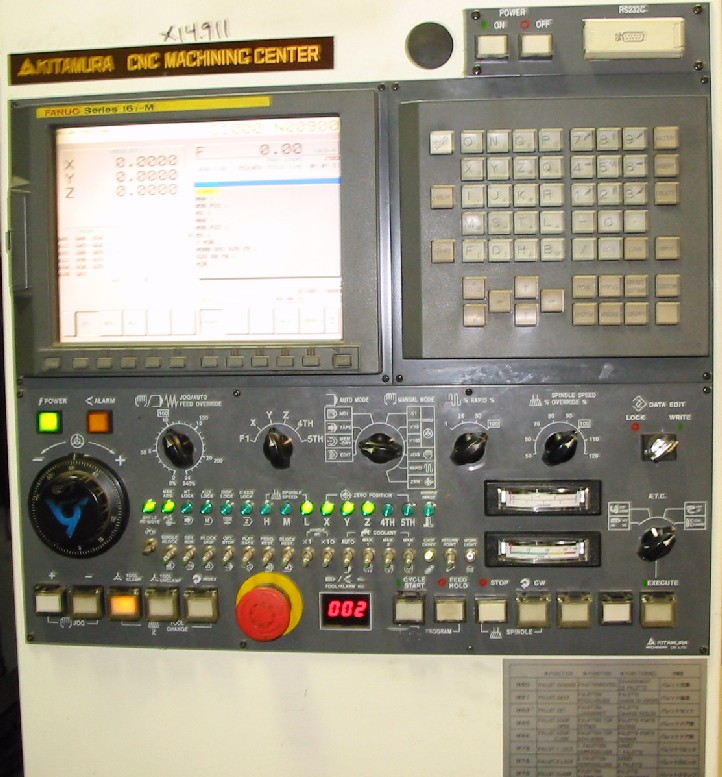

FANUC 16iM CNC CONTROL WITH 10.4" LCD SCREEN
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)
PREPPED FOR COOLANT THROUGH (NOT PLUMBED)
FACTORY INSTALLED AUTOMATIC 2-PALLET CHANGER
DAIKIN SPINDLE CHILLER (SPINDLE OIL COOLING SYSTEM)
EXTERNAL LEFT SIDE DISCHARGE CHIP CONVEYOR
FULLY ENCLOSED SPLASH GUARDING, ALL AVAILABLE MANUALS

SEE PHOTOS ATTACHED AND WEBSITE FOR MORE: www.MWMachinery.com
