CNC VERTICAL MACHINING CENTERS: FANUC T10 DRILL & TAP, FANUC OM CNC, 19 x 14 x 11, 6000 RPM, RIGID TAP, '91 (4152)

FANUC T10 DRILL & TAP, FANUC OM CNC, 19 x 14 x 11, 6000 RPM, RIGID TAP, '91 (4152)

Stock Number: 4152

Age: 1991

CNC VERTICAL MACHINING CENTERS: FANUC T10 DRILL & TAP, FANUC OM CNC, 19 x 14 x 11, 6000 RPM, RIGID TAP, '91 (4152), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: FANUC T10 DRILL & TAP, FANUC OM CNC, 19 x 14 x 11, 6000 RPM, RIGID TAP, '91 (4152), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: FANUC T10 DRILL & TAP, FANUC OM CNC, 19 x 14 x 11, 6000 RPM, RIGID TAP, '91 (4152), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: FANUC T10 DRILL & TAP, FANUC OM CNC, 19 x 14 x 11, 6000 RPM, RIGID TAP, '91 (4152), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: FANUC T10 DRILL & TAP, FANUC OM CNC, 19 x 14 x 11, 6000 RPM, RIGID TAP, '91 (4152), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4152 CNC VERTICAL MACHINING CENTERS: FANUC T10 DRILL & TAP, FANUC OM CNC, 19 x 14 x 11, 6000 RPM, RIGID TAP, '91 (4152)Request a quote on stock# 4152
SpecificationDescription
APPROXIMATE AGE1991
TABLE SIZE25.6" X 14.9"
TABLE LOAD CAPACITY440 LBS
X AXIS TRAVEL19.7"
Y AXIS TRAVEL14.9"
Z AXIS TRAVEL11.8"
RAPID TRAVERSE RATE X/Y AXES940 IPM
RAPID TRAVERSE RATE Z AXIS787 IPM
SPINDLE TAPERBT 30
SPINDLE SPEEDS60 - 6000 RPM
SPINDLE MOTOR7.5 HP

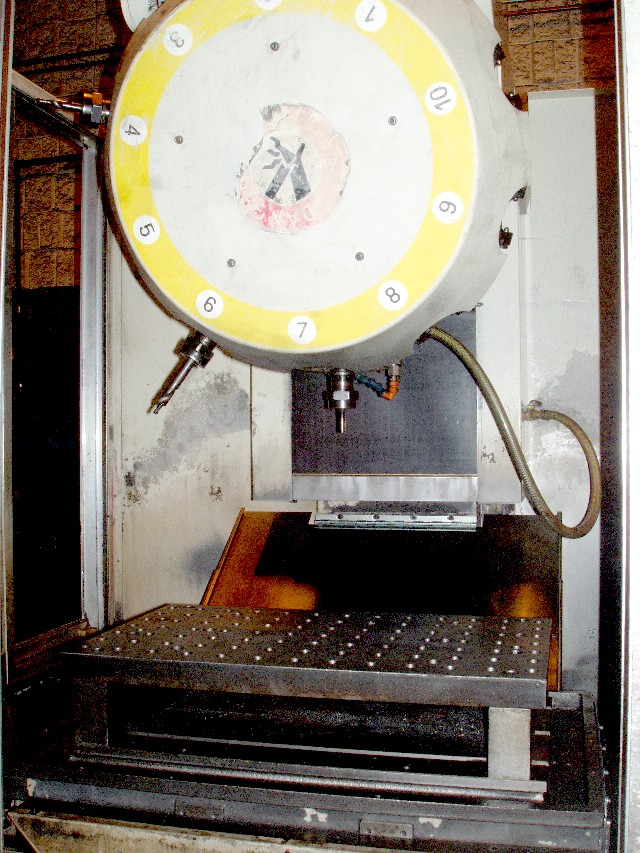

TOOL CHANGER CAPACITY10 STATION TURRET
MAXIMUM TOOL WEIGHT4.41 LBS
MACHINE WEIGHT4,000 LBS
APPROXIMATE DIMENSIONS96 " X 94" X 82"

Equipped With:
FANUC O-M CNC CONTROL WITH CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)
STANDARD COOLANT SYSTEM WITH TANK & PUMP

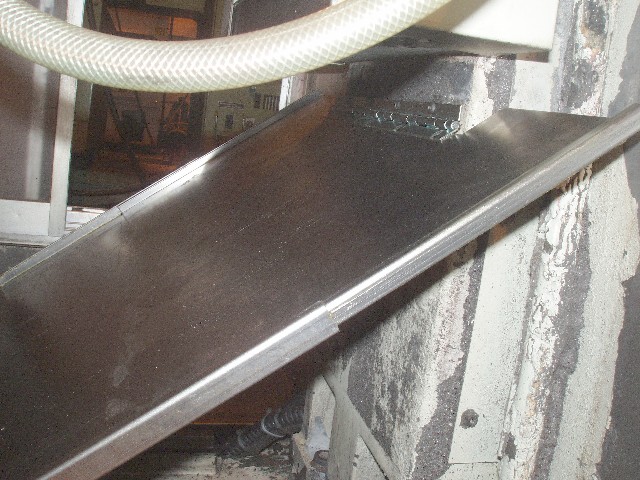

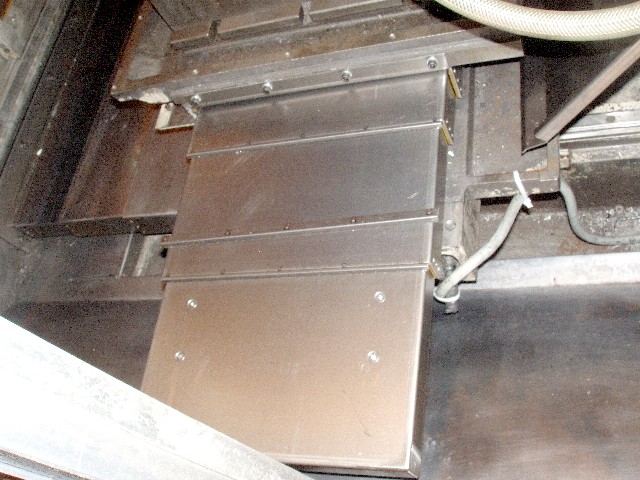

NEW WAY COVERS, ALL AVAILABLE BT 30 TOOLING
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS

SEE PHOTOS ATTACHED AND WEBSITE FOR MORE: www.MWMachinery.com
